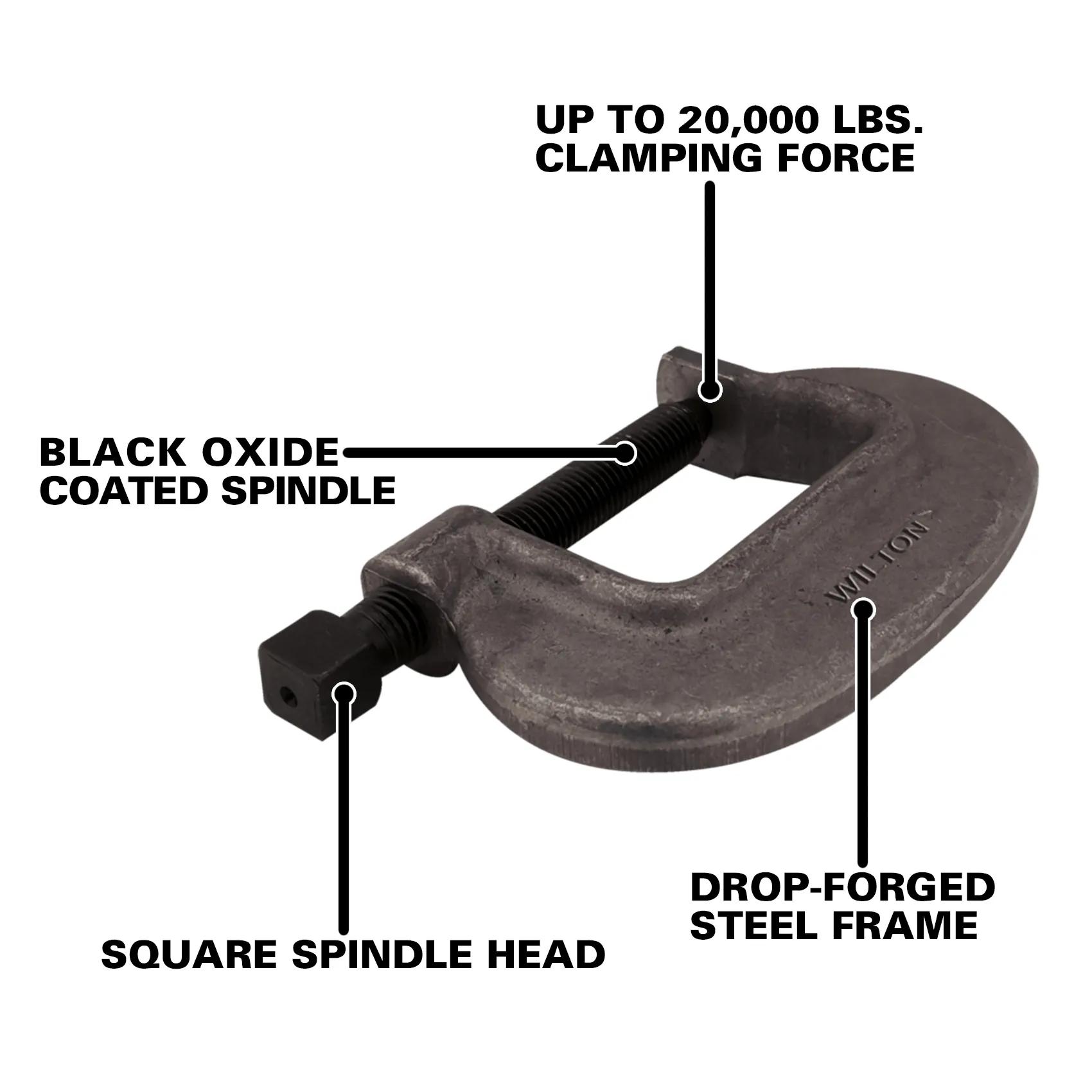

Brute Force Bridge C-Clamp "O" Series, 0 in. - 1-3/4 in. Open Capacity (1.5-FC)

Stock Number: WL9-14527

  • Full Closing Spindle, 1-3/4 in.
  • 8,750 lbs. Clamping Force
  • 1-3/4 in. Opening
  • Bridge Clamp 1.75in Full-Close
BUY NOW
Wilton Lifetime Warranty

Product Details

Reaching 1-7/16 in. deep, this clamp offers 0 to 1-3/4 in. of opening capacity with 8,750 lbs. of clamping force. The full closing spindle design allows the jaw to close completely to zero, accommodating the thinnest materials without losing clamping effectiveness. Built as a bridge-style frame, this clamp distributes loads across a wider footprint than standard C-clamps, reducing localized stress on workpieces and improving fixture stability. Forged steel construction handles the demanding loads of heavy fabrication, press work, and production welding without frame distortion. The acme thread spindle is hardened for extended service life in high-cycle industrial environments where clamps are tightened and released hundreds of times per shift. A swivel pad at the spindle tip conforms to workpiece surfaces for even pressure distribution on both flat and contoured stock.

Features

  • Jaw opens 0 in. - 1-3/4 in. with 1-7/16 in. reach for versatile stock accommodation
  • Opens to 1-3/4 in. with 1-7/16 in. throat depth for heavy workholding
  • 8,750 lbs. clamping force handles demanding fabrication and press operations
  • Rated at 8,750 lbs., this Drop Forged Steel frame covers the full 1-3/4 in. range
  • Acme spindle controls 8,750 lbs. precisely through the full 1-7/16 in. reach range
  • Pad face pivots freely to protect finished surfaces from indentation — up to 0 in. - 1-3/4 in. — 1-7/16 in. throat depth
  • Weighs 1.95 lbs. for manageable handling during extended setup and clamping sessions

Specifications

  • SKU
    WL9-14527
  • Material Type
    Drop Forged Steel
  • Model Number
    1.5-FC
  • Product Type
    Tools & Equipment
  • Spindle Diameter
    5/8 in.
  • Throat Depth
    1-7/16 in.
  • UPC
    019907145271
