Product Details

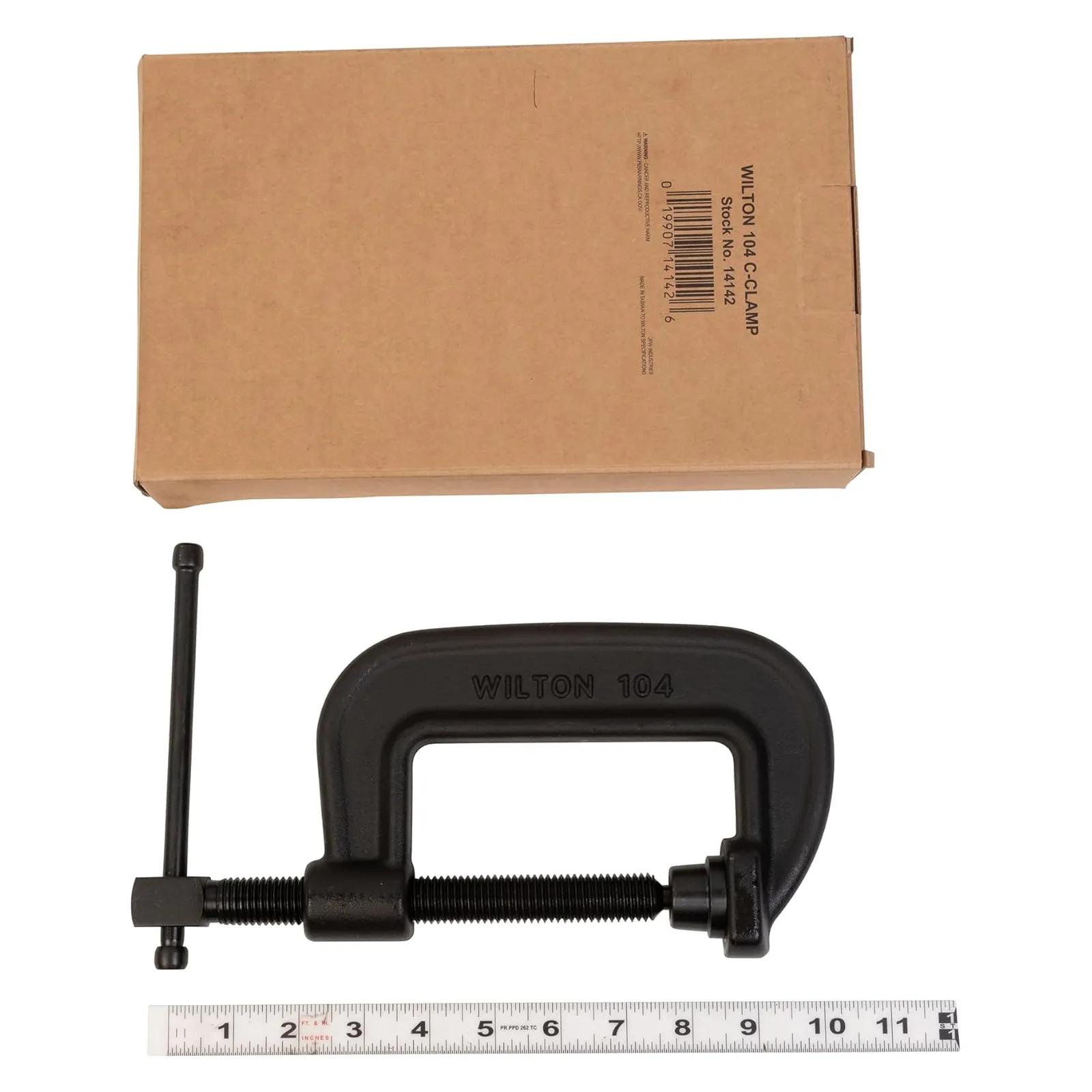

Get professional-grade clamping with 10,000 lbs. of force, opening to 3-5/8 in., and a 2-3/8 in. throat depth. Forged steel construction delivers the frame rigidity needed for shipbuilding, bridge construction, heavy structural fabrication, and industrial press operations. This clamp is rated for loads that would distort or break standard-duty alternatives, making it essential for jobs where clamping failure is not an option. The acme thread spindle is hardened and oversized to handle the massive forces involved, turning smoothly even at maximum load. A heavy-duty swivel pad distributes clamping pressure across wide contact areas, preventing point loading on thick plate and structural members. When the work demands industrial-grade holding power, the 100 Series delivers without compromise.
Features
- Opens 0 in. - 3-5/8 in. for heavy structural plate and thick material clamping
- 2-3/8 in. throat depth positions force on deep-set or flanged workpieces
- 10,000 lbs. clamping force handles loads that break standard-duty clamps
- Drop Forged Steel frame rated for 10,000 lbs. handles the demands of 3-5/8 in. opening range
- Spindle mechanism delivers consistent 10,000 lbs. pressure at any point within 2-3/8 in.
- Pad conforms to both flat and curved surfaces for versatile clamping — up to 0 in. - 3-5/8 in. — 2-3/8 in. throat depth
- At 4.3 lbs., this clamp balances holding power with portability between stations
Specifications
- SKUWL9-14142
- Material TypeDrop Forged Steel
- Model Number104
- Product TypeTools & Equipment
- Spindle Diameter3/4 in.
- Throat Depth2-3/8 in.
- UPC019907141426
