Product Details

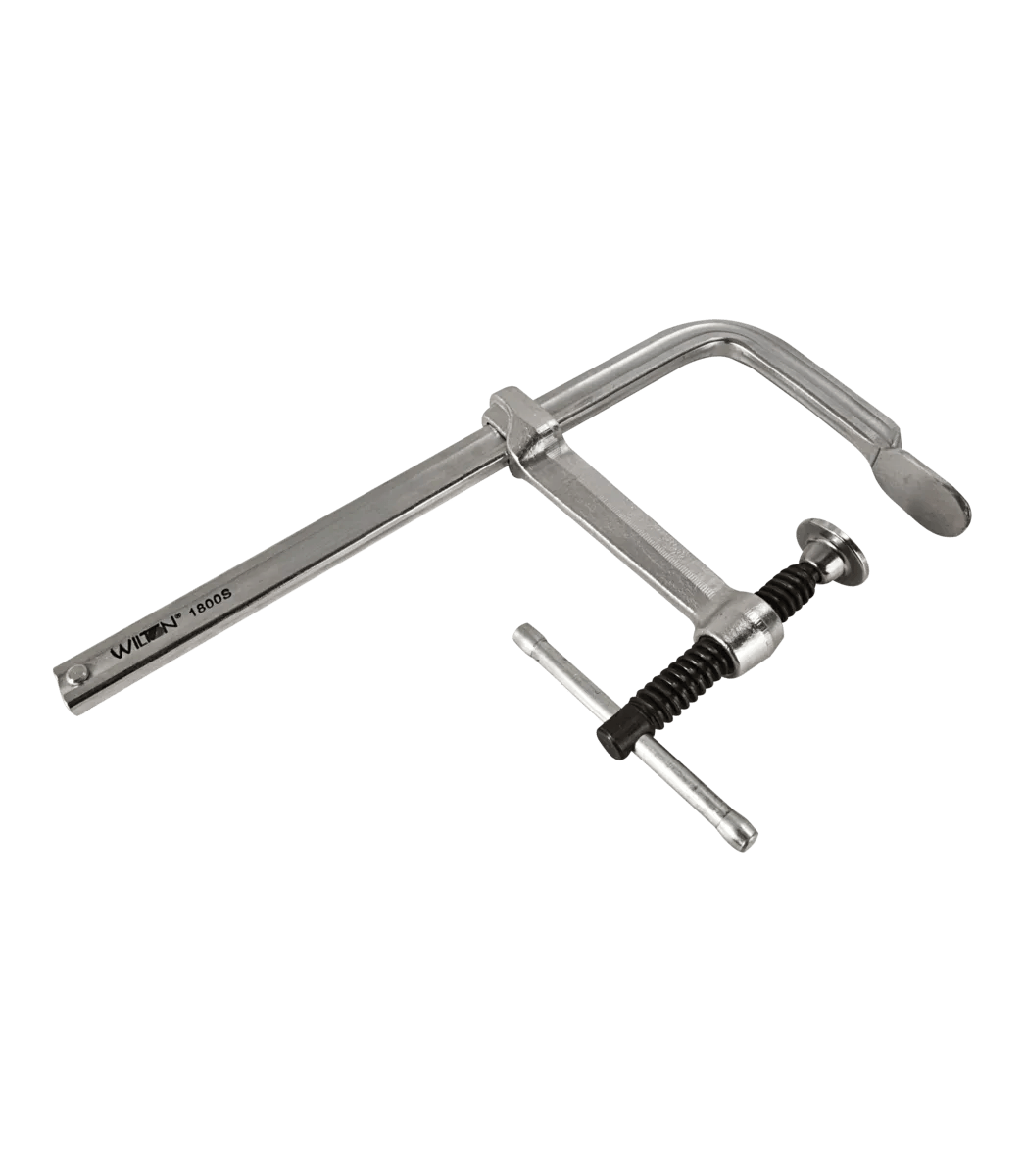

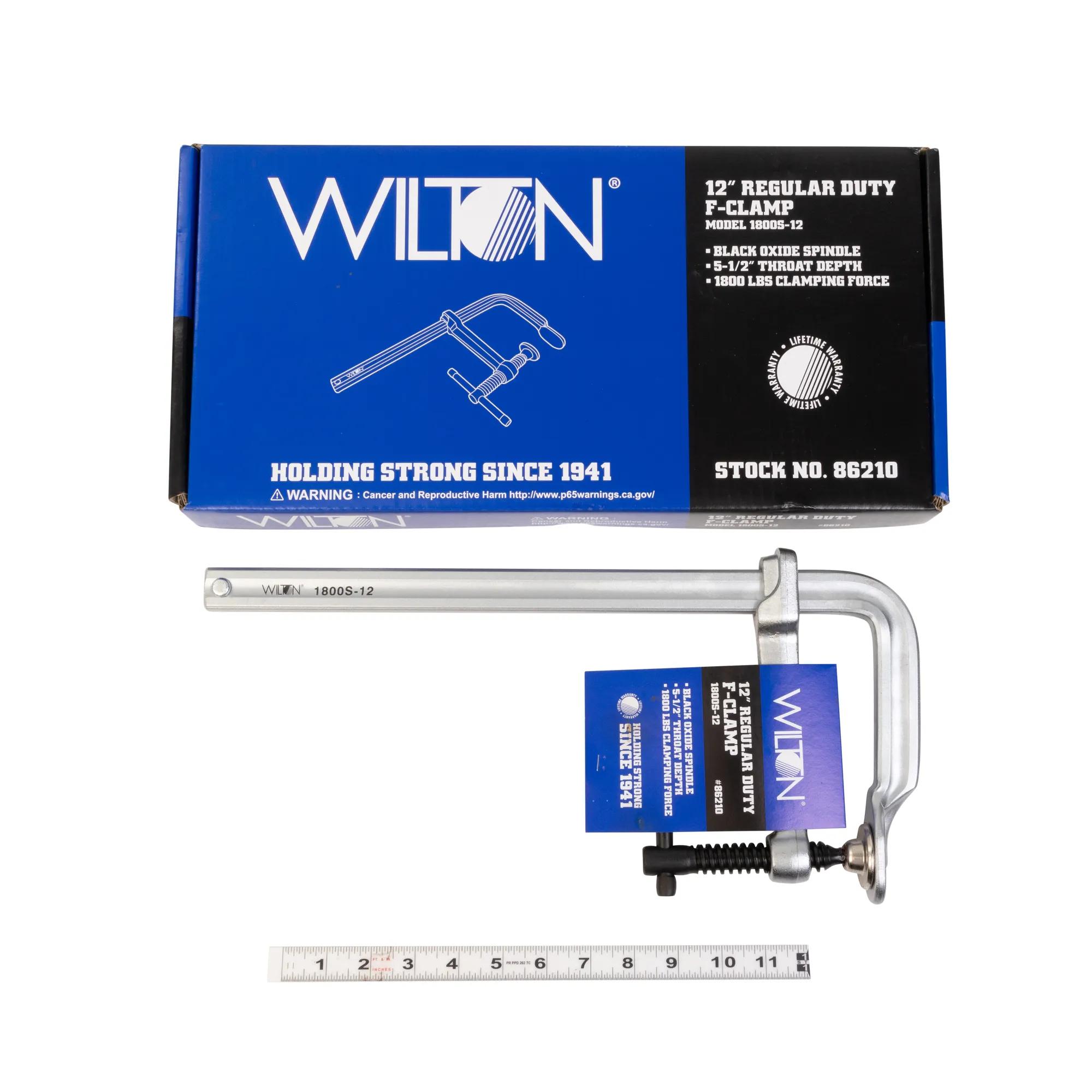

Tested in production shops, opens 0 to 12 in. with 1,800 lbs. of clamping force and a 5-1/2 in. throat depth. This mid-range F-clamp bridges the gap between light-duty hobby clamps and heavy-duty fabrication tools, making it suitable for woodworking, general fabrication, and maintenance work. The steel bar and jaw assembly withstands repeated clamping cycles without bending or loosening, and the sliding jaw locks firmly at any position along the bar. A comfortable handle provides the leverage needed to apply full clamping pressure without hand strain during extended work sessions. Flat contact pads distribute force evenly, protecting workpiece surfaces while maintaining a secure grip. The 1800S Regular Duty is the go-to F-clamp when the work calls for more force than light-duty offers but doesn't require the cost of heavy-duty tooling.
Features
- Jaw opening extends from 0 to 12 in. for versatile clamping across material thicknesses
- 5-1/2 in. throat depth reaches past edges for face and edge clamping setups
- 1,800 lbs. clamping force bridges the gap between light and heavy-duty classes
- Rated at 1,800 lbs., this Steel frame covers the full 12 in. range
- Maintains 1,800 lbs. consistently via acme spindle engagement across 5-1/2 in.
- Wide-angle swivel pad adapts to irregular surfaces without repositioning — up to 0 in. - 12 in. — 5-1/2 in. throat depth
- With a weight of 5 lbs., this clamp remains mobile between work stations
Specifications
- SKUWL9-86210
- Capacity0 - 12 in.
- Clamping Force1800 lbs.
- Horse Power1/8
- Material TypeSteel
- Model Number1800S-12
- Net Weight5
- Old Material Number86210
- Product TypeTools & Equipment
- Prop 65Cancer and Reproductive Harm
- SAP Gross Weight6
- Spindle Diameter5/8 in.
- Throat Depth5-1/2 in.
- UPC731325228243
- WarrantyLimited Lifetime Warranty
