5 in. Verti-Lock Machine Vise
5 in. Verti-Lock Machine Vise
5 in. Verti-Lock Machine Vise

5 in. Verti-Lock Machine Vise

Stock Number: WL9-12390

  • Enclosed Spindle Design
  • Ductile Alloy Body
  • 4 in. Max Opening Capacity
BUY NOW
Wilton Lifetime Warranty

Product Details

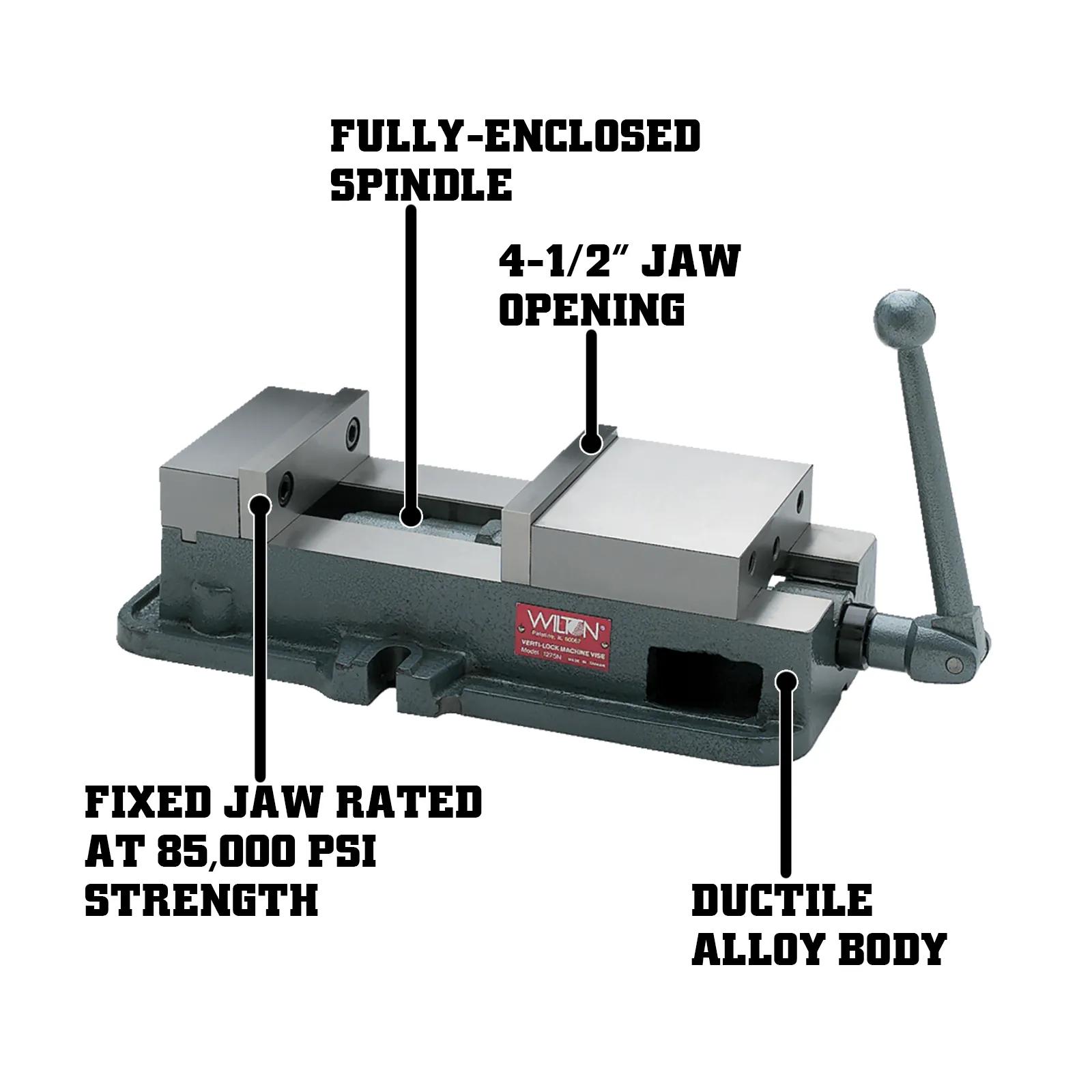

Wilton's 5" Verti-Lock Machine Vise has a ductile alloy body with flame-hardened bed to provide solid work support, accuracy, and longevity. The spindle is fully enclosed to protect it from from milling elements, and cut from special alloy steel, hardened and ground.

Features

  • Fully enclosed spindle shields the drive mechanism from chips, coolant, and abrasive debris
  • Protected spindle stays clean through extended milling runs, maintaining smooth clamping action over time
  • Alloy-steel spindle is hardened and ground for wear resistance and smooth, precise jaw travel
  • Surface-ground sliding jaw rated at 60,000 PSI provides exceptional clamping strength on tough materials
  • Precision-ground jaw faces provide a flat, true contact surface that holds workpieces square to the table
  • Standard bolt-slot pattern mounts directly to milling-machine tables and rotary indexers without custom adapters
  • Optional swivel base (sold separately) adds horizontal rotation for angled milling setups without changing vises

Specifications

  • SKU
    WL9-12390
  • Horse Power
    1/8
  • Jaw Depth
    1.5 in.
  • Jaw Width
    5 in.
  • Maximum Vise Opening
    4 in.
  • Model Number
    1250N
  • Net Weight
    50
  • Number of Mounting Points
    2
  • Old Material Number
    12390
  • Opening Capacity Max
    4 in.
  • Product Type
    Tools & Equipment
  • Prop 65
    Cancer and Reproductive Harm
  • SAP Gross Weight
    50
  • Throat Depth
    1-1/2 in.
  • Type of Base
    Stationary
  • UPC
    019907123903
  • Warranty
    Limited Lifetime Warranty
