Product Details

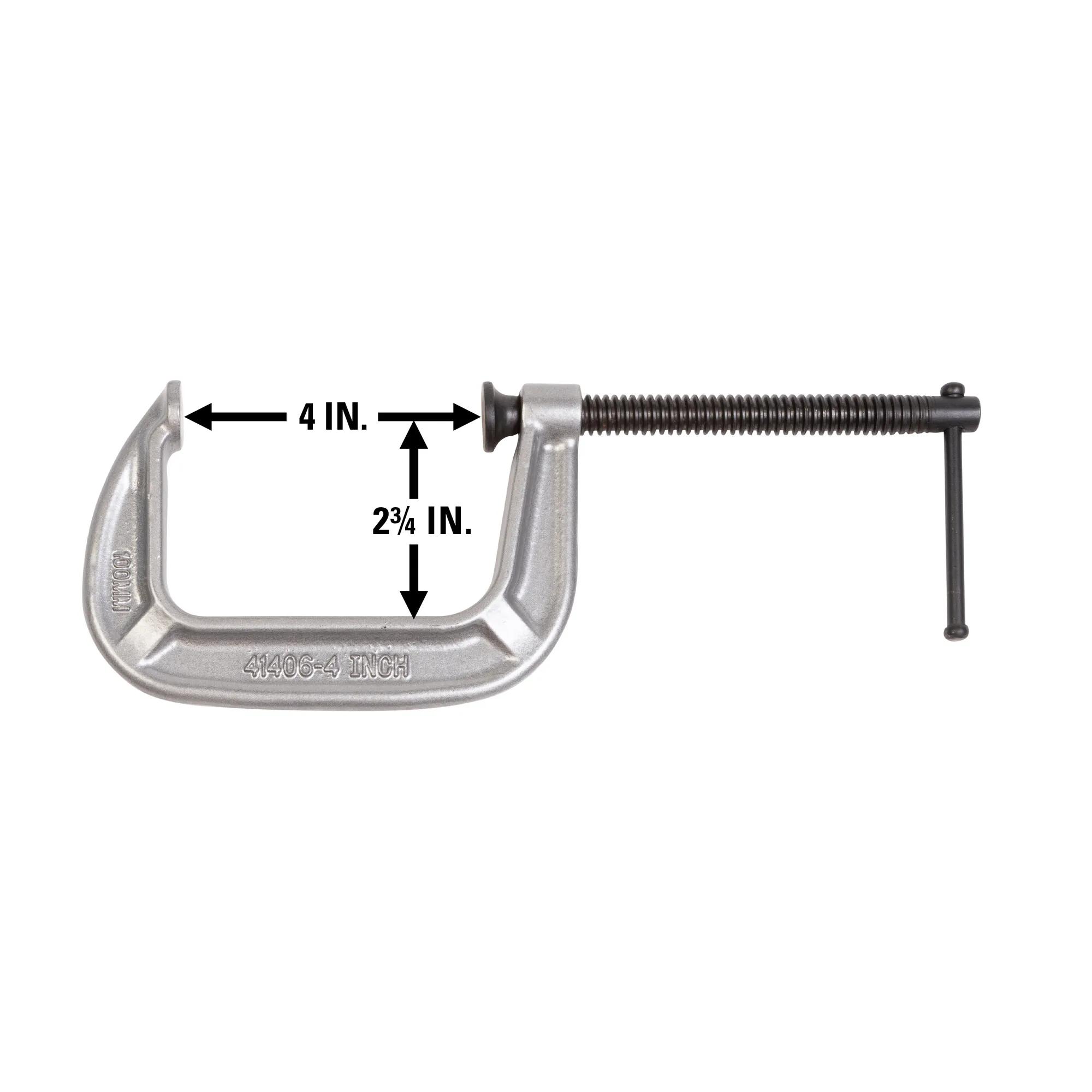

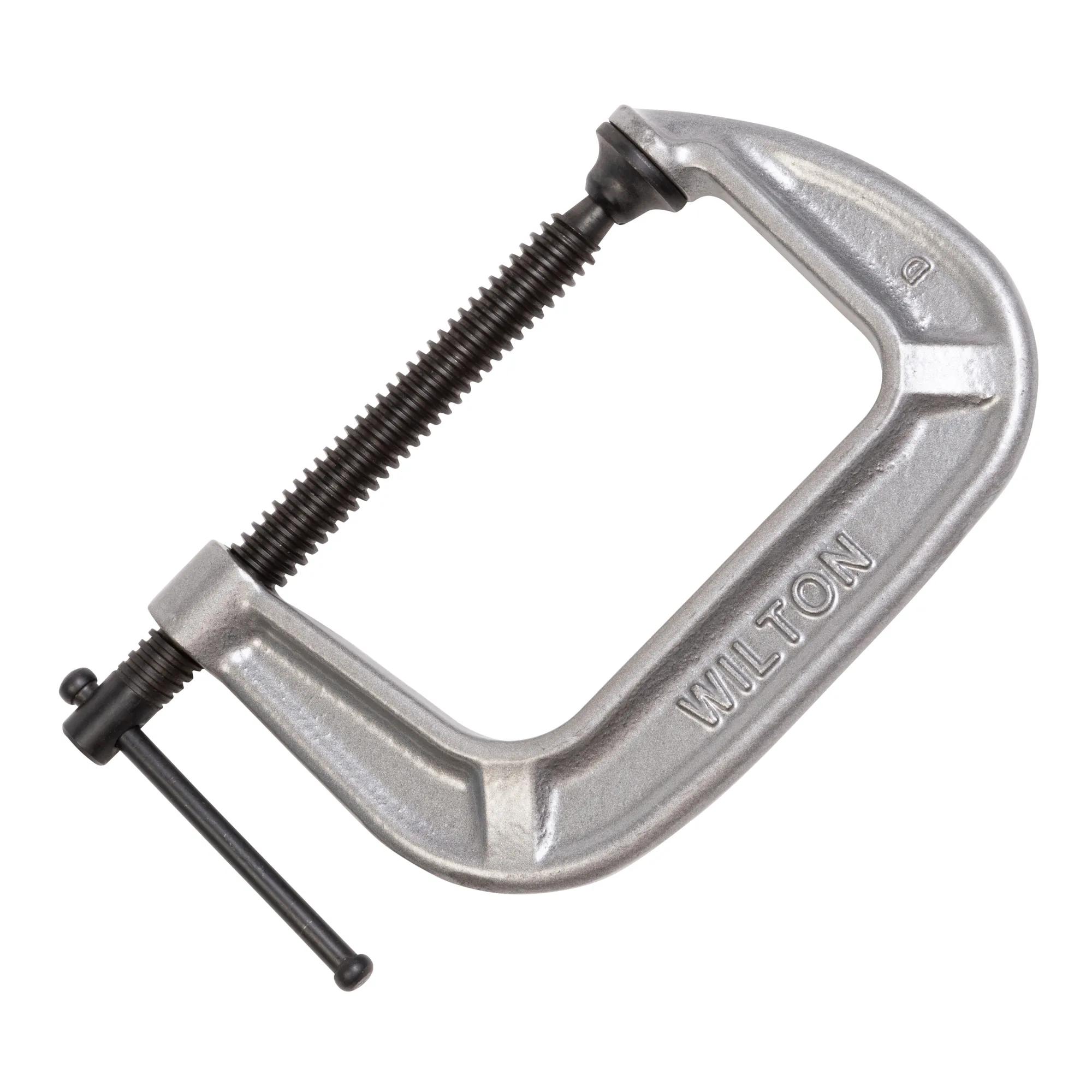

Reaching 2-3/4 in. deep, this clamp offers 0 to 4 in. of opening capacity with 1,535 lbs. of clamping force. Built from ductile iron, this carriage-style clamp provides the durability needed for light industrial, woodworking, and general repair applications. The acme thread spindle turns smoothly under load, allowing precise adjustment without the binding common in square-thread designs. A self-adjusting swivel pad distributes pressure evenly and protects workpiece surfaces from marring. The 140 Series frame is engineered for a high strength-to-weight ratio, making it easy to position one-handed during complex glue-ups or fixture setups.
Features
- Jaw range spans 0 to 4 in. for clamping thin sheet through moderate stock
- 2-3/4 in. throat depth provides clearance for offset and edge clamping
- 1,535 lbs. clamping force secures workpieces without distortion
- Engineered Ductile Iron frame delivers 1,535 lbs. through the full 4 in. range
- Acme spindle controls 1,535 lbs. precisely through the full 2-3/4 in. reach range
- Wide-angle swivel pad adapts to irregular surfaces without repositioning — up to 0 in. - 4 in. — 2-3/4 in. throat depth (WL9-41406)
- Weighs 1.5 lbs. for manageable handling during extended setup and clamping sessions
Specifications
- SKUWL9-41406
- Jaw Depth1.312 in.
- Material TypeDuctile Iron
- Model Number144C
- Product TypeTools & Equipment
- Spindle Diameter1/2 in.
- Throat Depth2-3/4 in.
- UPC019907414063
