Product Details

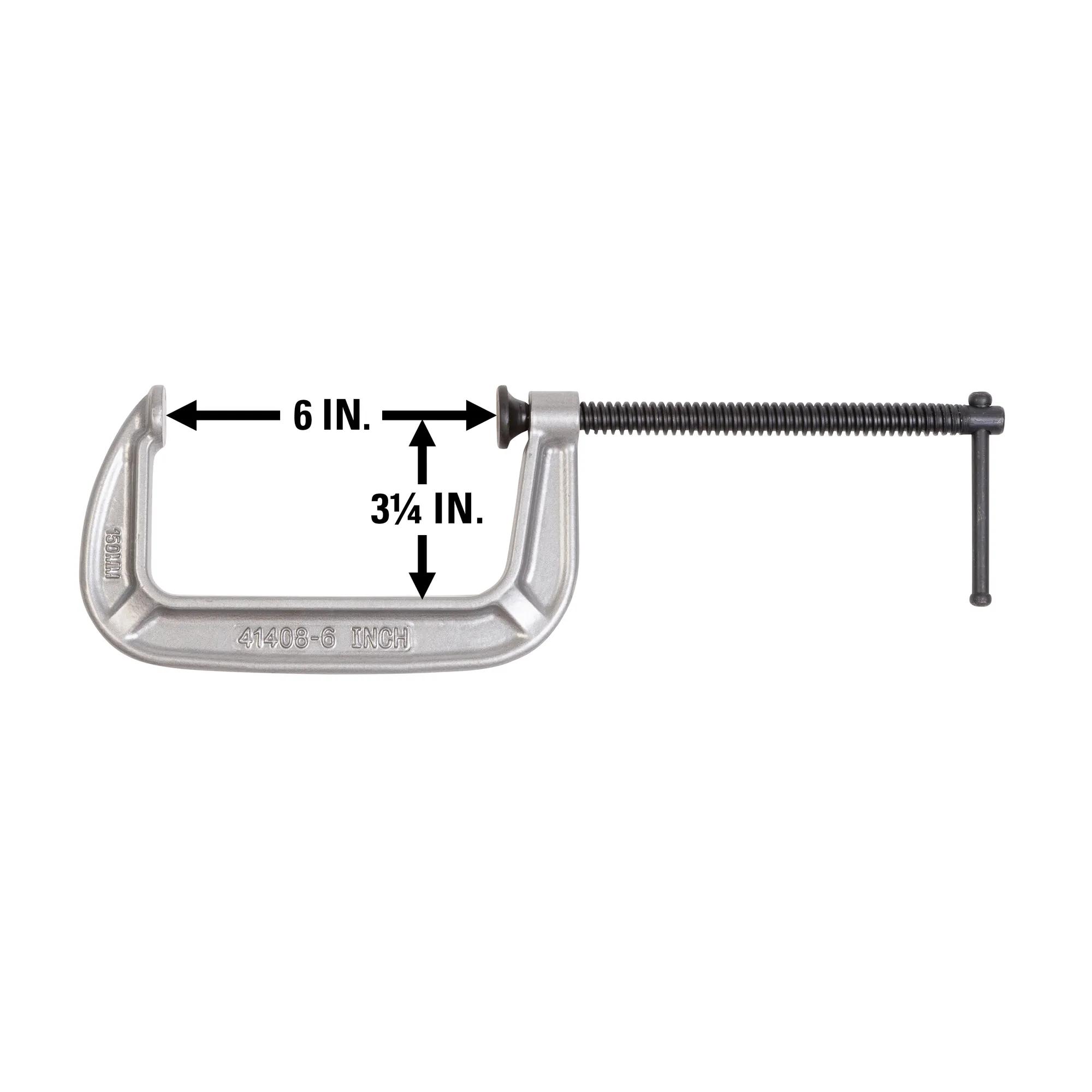

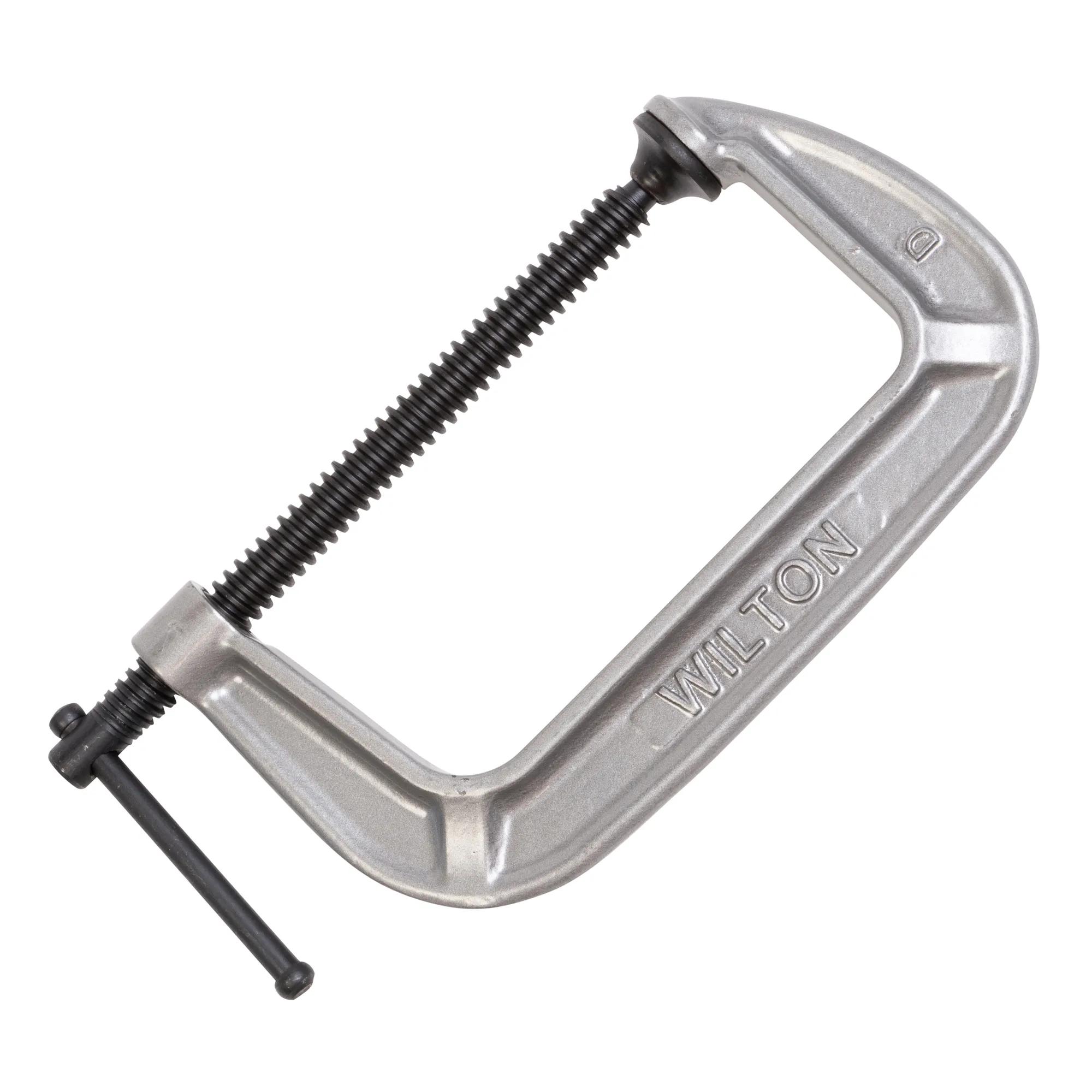

Ductile Iron construction delivers this clamp, opening 0 to 6 in. with 1,400 lbs. of clamping force and a 3-1/4 in. throat depth. Built from ductile iron, this carriage-style clamp provides the durability needed for light industrial, woodworking, and general repair applications. The acme thread spindle turns smoothly under load, allowing precise adjustment without the binding common in square-thread designs. A self-adjusting swivel pad distributes pressure evenly and protects workpiece surfaces from marring. The 140 Series frame is engineered for a high strength-to-weight ratio, making it easy to position one-handed during complex glue-ups or fixture setups.
Features
- Jaw opening extends from 0 to 6 in. for clamping thin sheet through moderate stock
- 3-1/4 in. throat depth provides clearance for offset and edge clamping
- 1,400 lbs. clamping force secures workpieces without distortion
- Built from Ductile Iron, rated at 1,400 lbs. across the complete 6 in. opening
- Spindle applies 1,400 lbs. evenly across 3-1/4 in. throat without deflection or drift
- Pad face pivots freely to protect finished surfaces from indentation — up to 0 in. - 6 in. — 3-1/4 in. throat depth
- With a weight of 3.05 lbs., this clamp remains mobile between work stations (3-1/4 in. throat)
Specifications
- SKUWL9-41408
- Jaw Depth1.312 in.
- Material TypeDuctile Iron
- Model Number146C
- Product TypeTools & Equipment
- Spindle Diameter5/8 in.
- Throat Depth3-1/4 in.
- UPC019907414087
