16 in. Heavy Duty F-Clamp - (GSM40)

Stock Number: WL9-86660

  • 16 in. Heavy Duty
  • 2,660 lbs. F-Clamp Force, 16 in.
  • GSM Pro Series, 16 in.
  • Extended Length Heavy Duty
BUY NOW
Wilton Lifetime Warranty

Product Details

Opening from 0 to 16 in., this clamp delivers 2,660 lbs. of clamping force with a 4-3/4 in. throat depth. Built for demanding fabrication, construction, and production environments, the heavy-duty steel bar handles sustained high-pressure clamping without deflection. The oversized sliding jaw mechanism provides a wide bearing surface that prevents bar scoring and maintains smooth slide action over extended service life. A comfort-engineered handle delivers full clamping force without the hand fatigue that comes from repeated high-force tightening throughout a work shift. Hardened contact pads grip workpieces firmly while distributing pressure to prevent surface indentation on metal plate and structural members. The GSM Heavy Duty series is the professional fabricator's choice when F-clamp force ratings measured in thousands of pounds are not negotiable.

Features

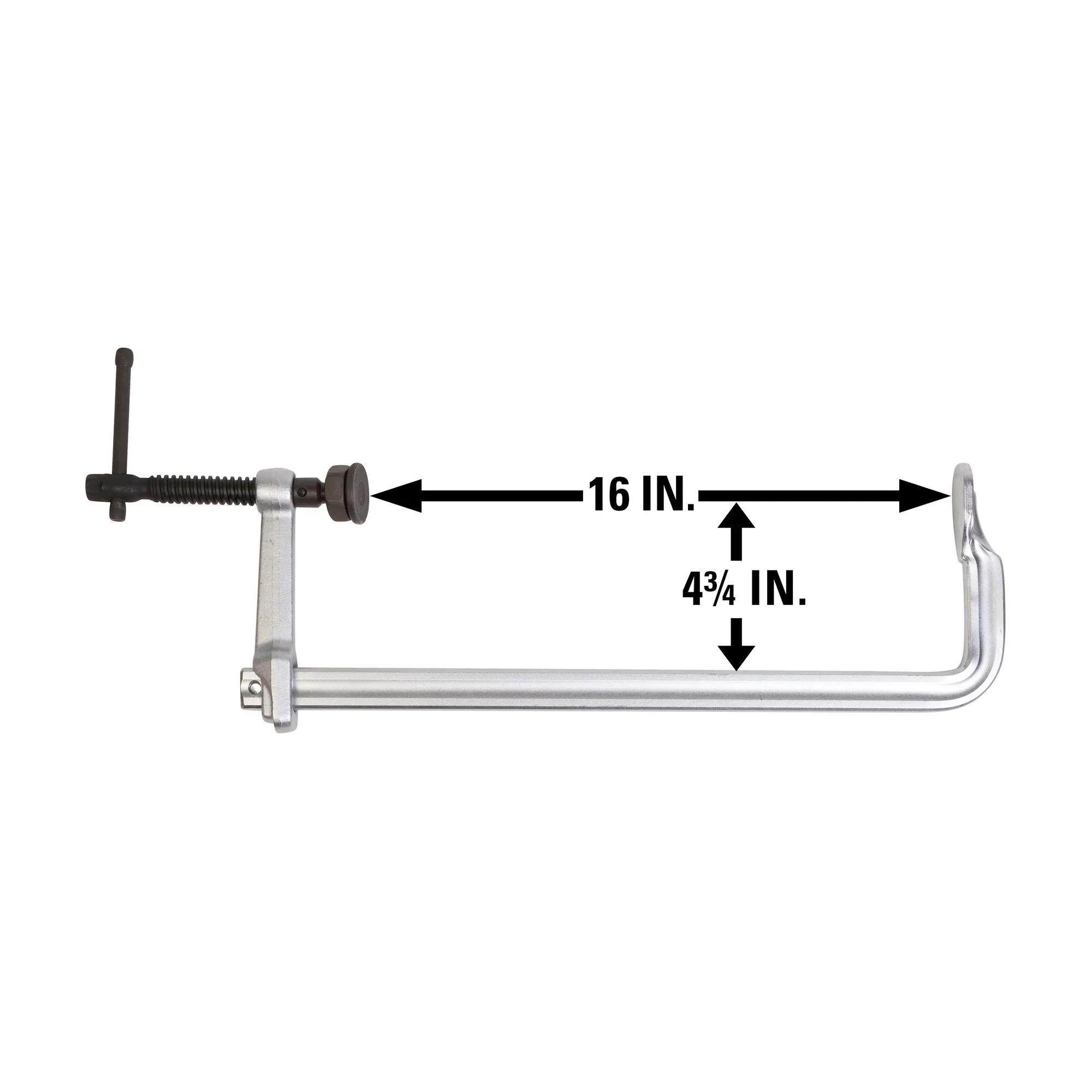

  • Opens 0 to 16 in. for heavy fabrication and construction clamping
  • 4-3/4 in. throat depth positions force past flanges on structural members

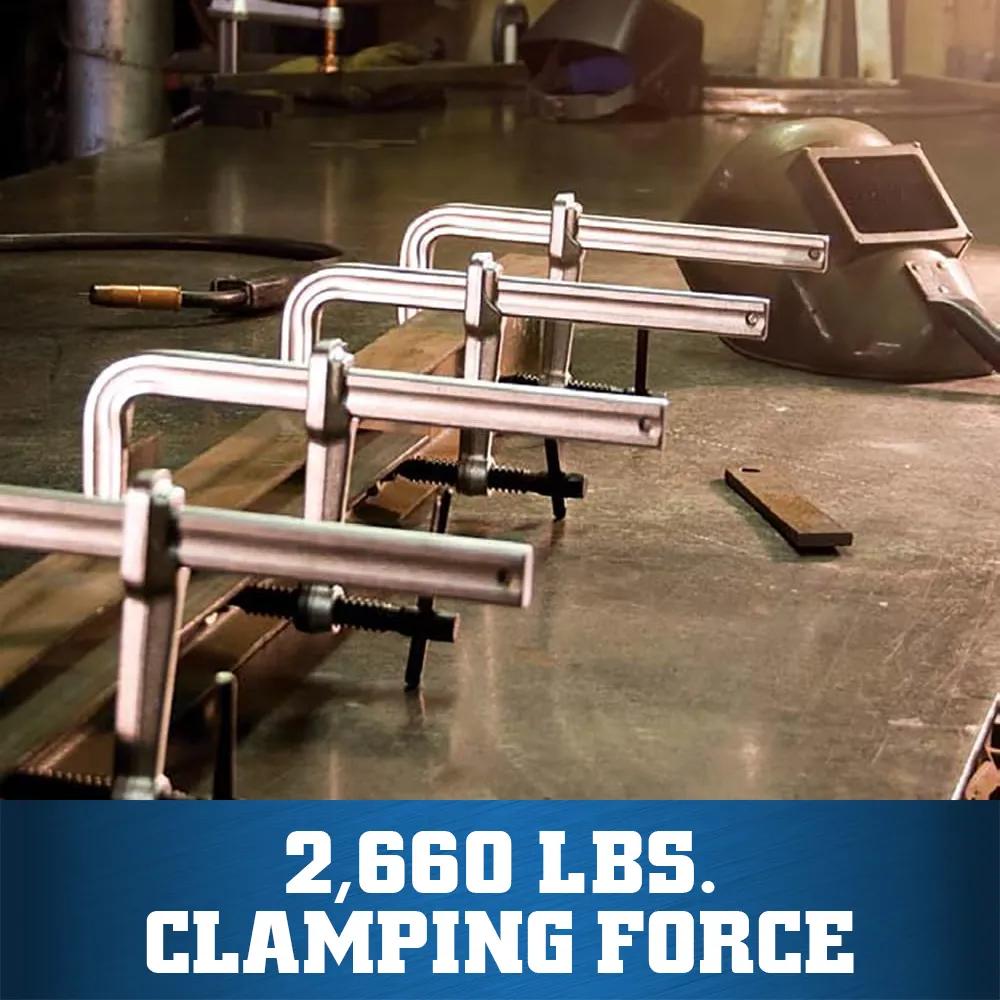

  • Delivers 2,660 lbs. through a steel frame built for production loads
  • Handles 16 in. of jaw travel with 2,660 lbs. from a Steel frame (GSM40)

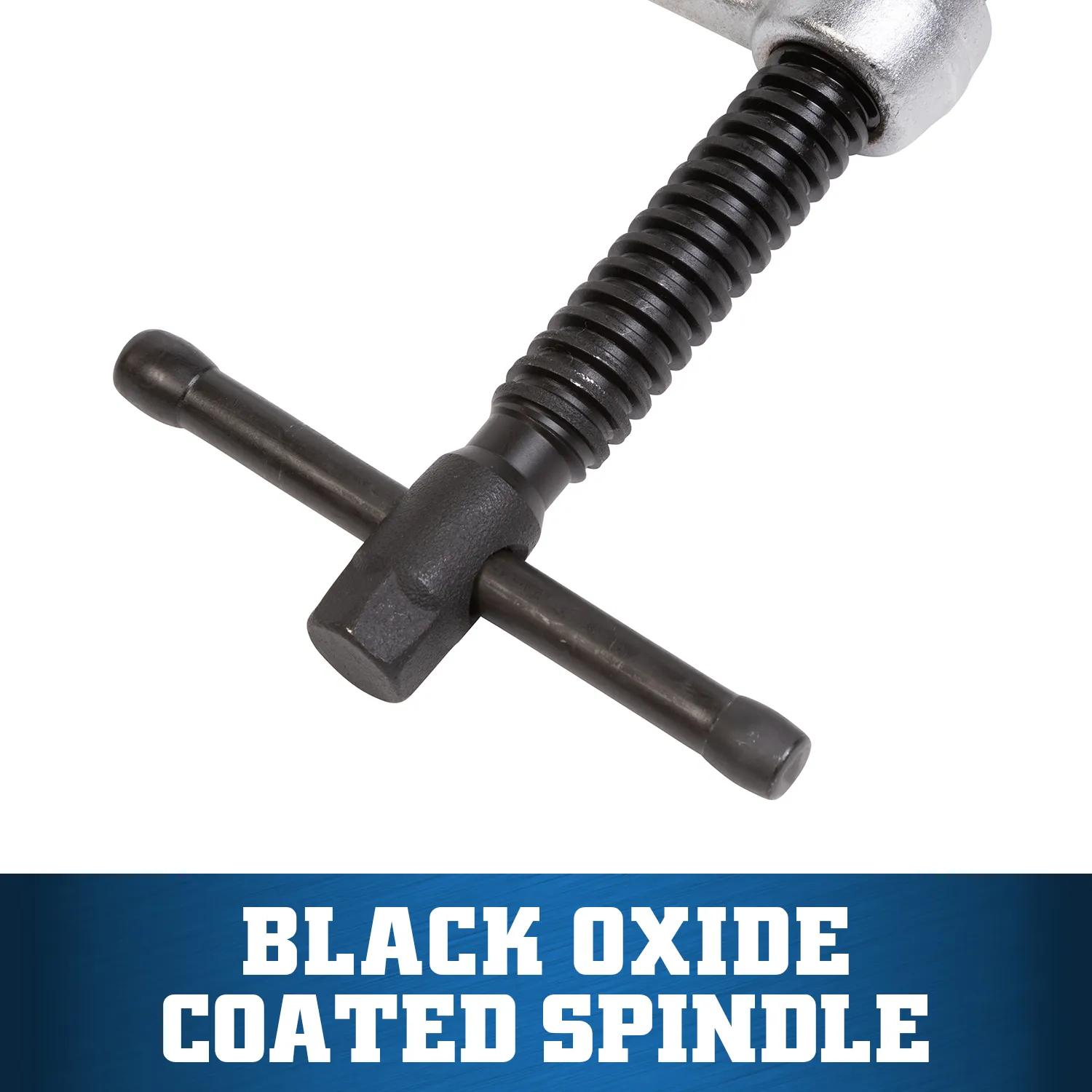

  • Spindle mechanism delivers consistent 2,660 lbs. pressure at any point within 4-3/4 in.(GSM40)

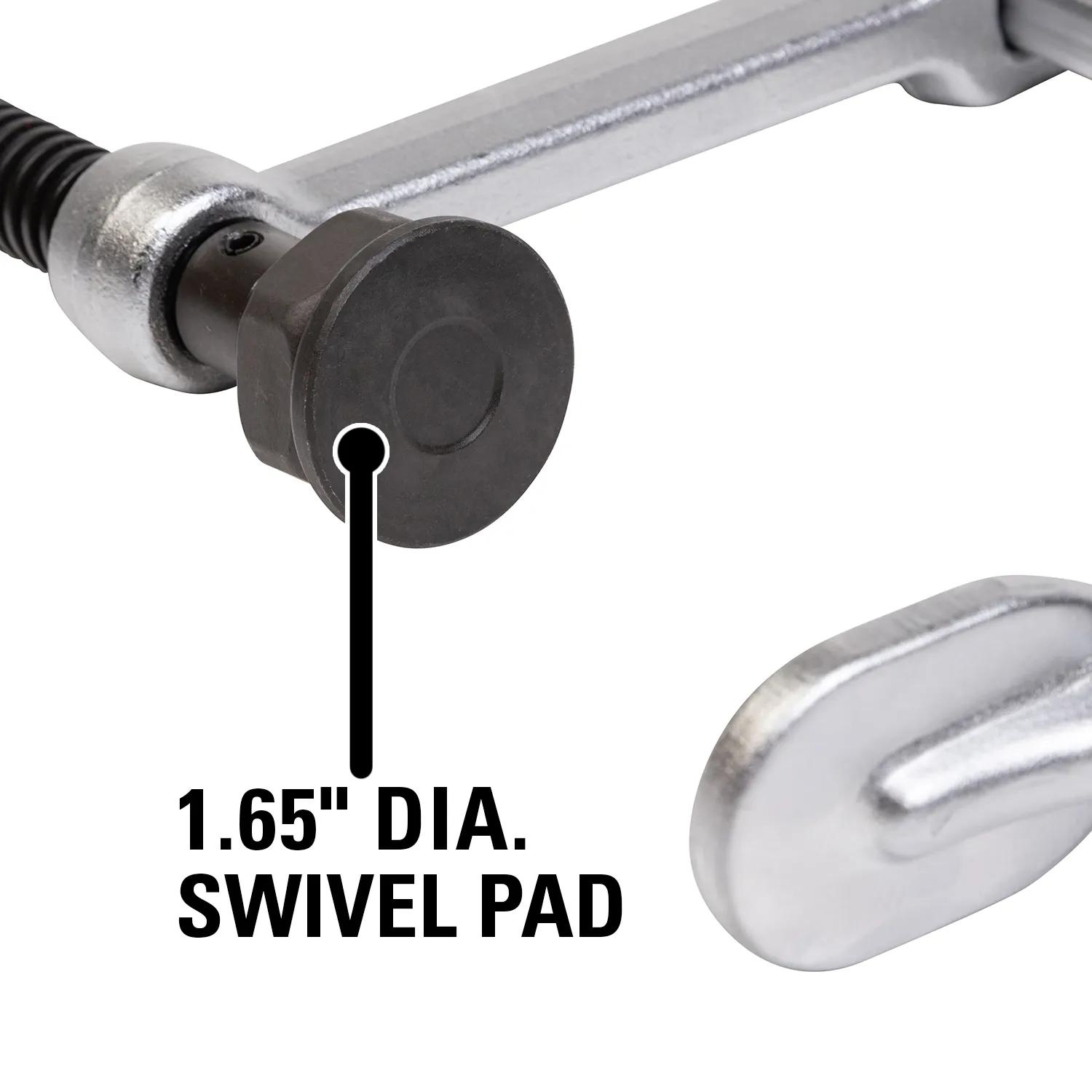

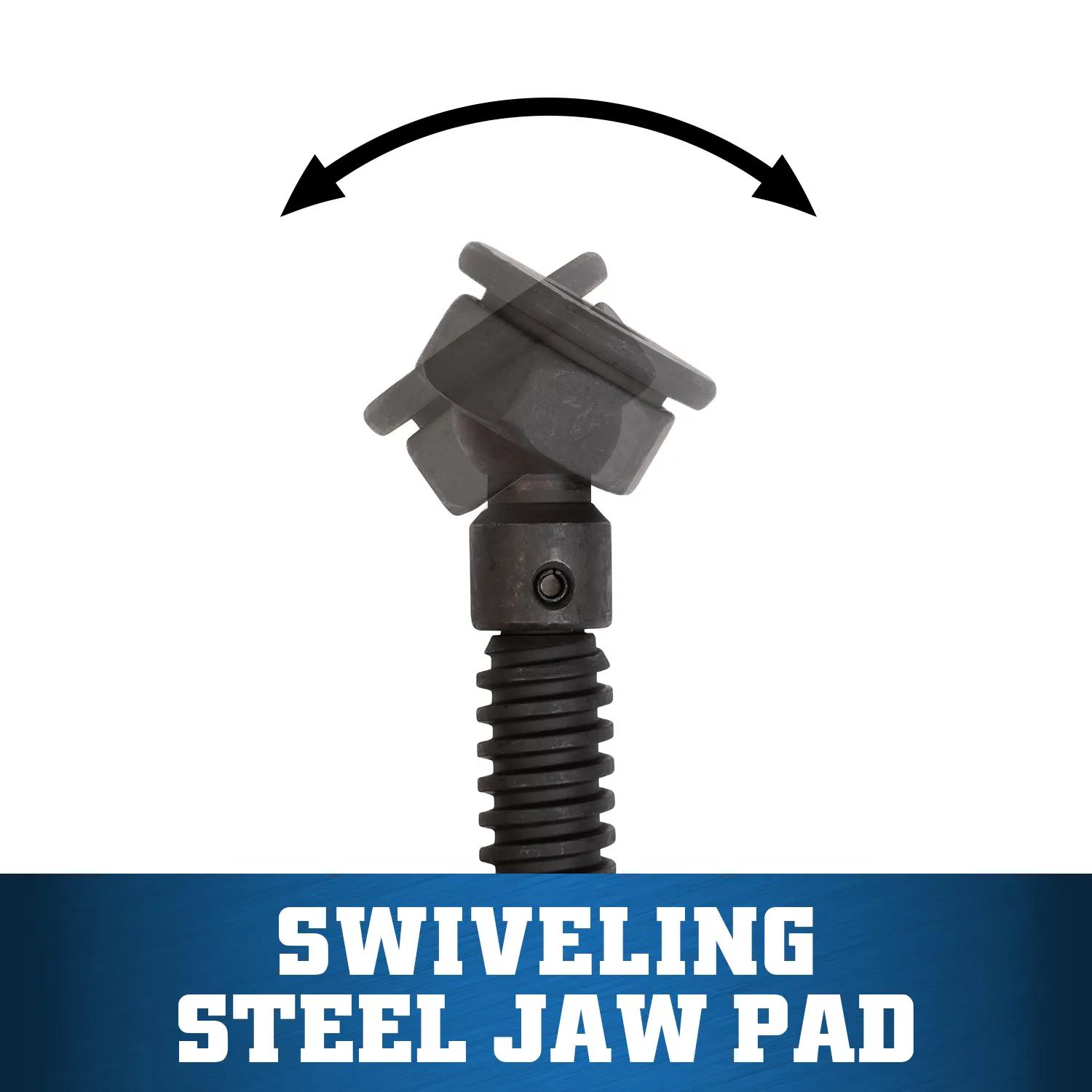

  • Swivel contact pad reduces the risk of workpiece slippage under force — up to 0 in. - 16 in. — 4-3/4 in. throat depth
  • At 7 lbs., this clamp balances holding power with portability between stations

Specifications

  • SKU
    WL9-86660
  • Material Type
    Steel
  • Model Number
    GSM40
  • Product Type
    Tools & Equipment
  • Spindle Diameter
    3/4 in.
  • Throat Depth
    4-3/4 in.
  • UPC
    731325375411
