Product Details

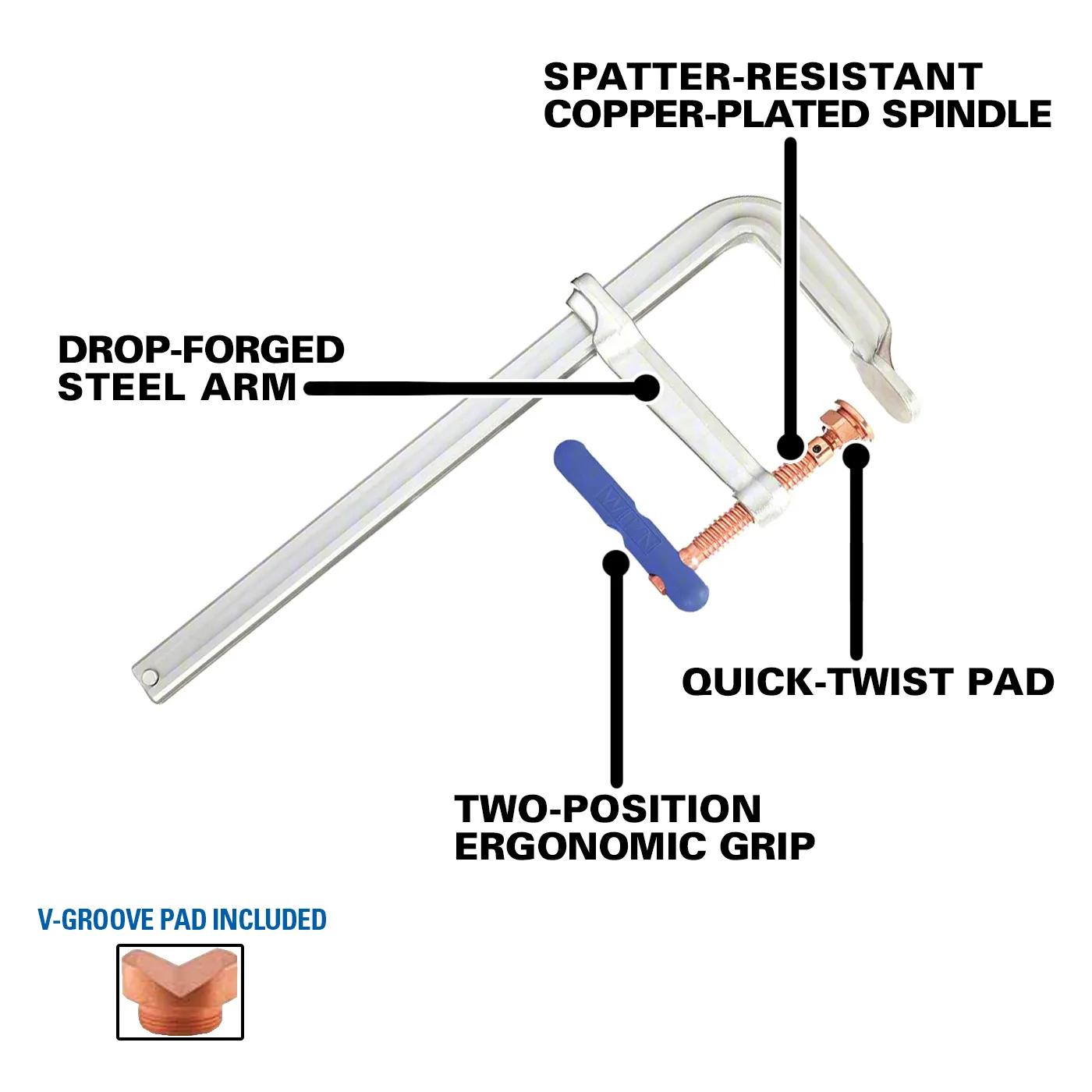

Delivering 2,660 lbs. of clamping force, this clamp opens from 0 to 16 in. with a 4-3/4 in. throat depth. The copper-plated spindle and contact surfaces resist weld spatter adhesion, making this F-clamp purpose-built for welding fabrication where standard clamps quickly become unusable. The steel bar and sliding jaw mechanism lock securely at any position, allowing fast repositioning between weld passes. A comfortable handle provides controlled tightening even when wearing welding gloves. When your F-clamp lives next to the welding table, the 2400S Copper Series keeps working long after standard clamps seize up from spatter buildup.
Features
- Jaw range spans 0 to 16 in. with copper surfaces for weld spatter resistance
- 4-3/4 in. throat depth provides reach for pipe, plate, and structural setups
- Features 3/4 in. spindle diameter for stable, wobble-free tightening
- Engineered Steel frame delivers 2,660 lbs. through the full 16 in. range (2400S-16C)
- Acme spindle controls 2,660 lbs. precisely through the full 4-3/4 in. reach range (2400S-16C)
- Self-adjusting pad distributes force across the full contact area evenly — up to 0 in. - 16 in. — 4-3/4 in. throat depth
- Weighs 7.5 lbs. for manageable handling during extended setup and clamping sessions (4-3/4 in. throat)
Specifications
- SKUWL9-86420
- Capacity0 - 16 in.
- Clamping Force2660 lbs.
- Horse Power1/8
- Material TypeSteel
- Model Number2400S-16C
- Net Weight7.500
- Old Material Number86420
- Product TypeTools & Equipment
- Prop 65Cancer and Reproductive Harm
- SAP Gross Weight8.500
- Spindle Diameter3/4 in.
- Throat Depth4-3/4 in.
- UPC731325228335
- WarrantyLimited Lifetime Warranty
