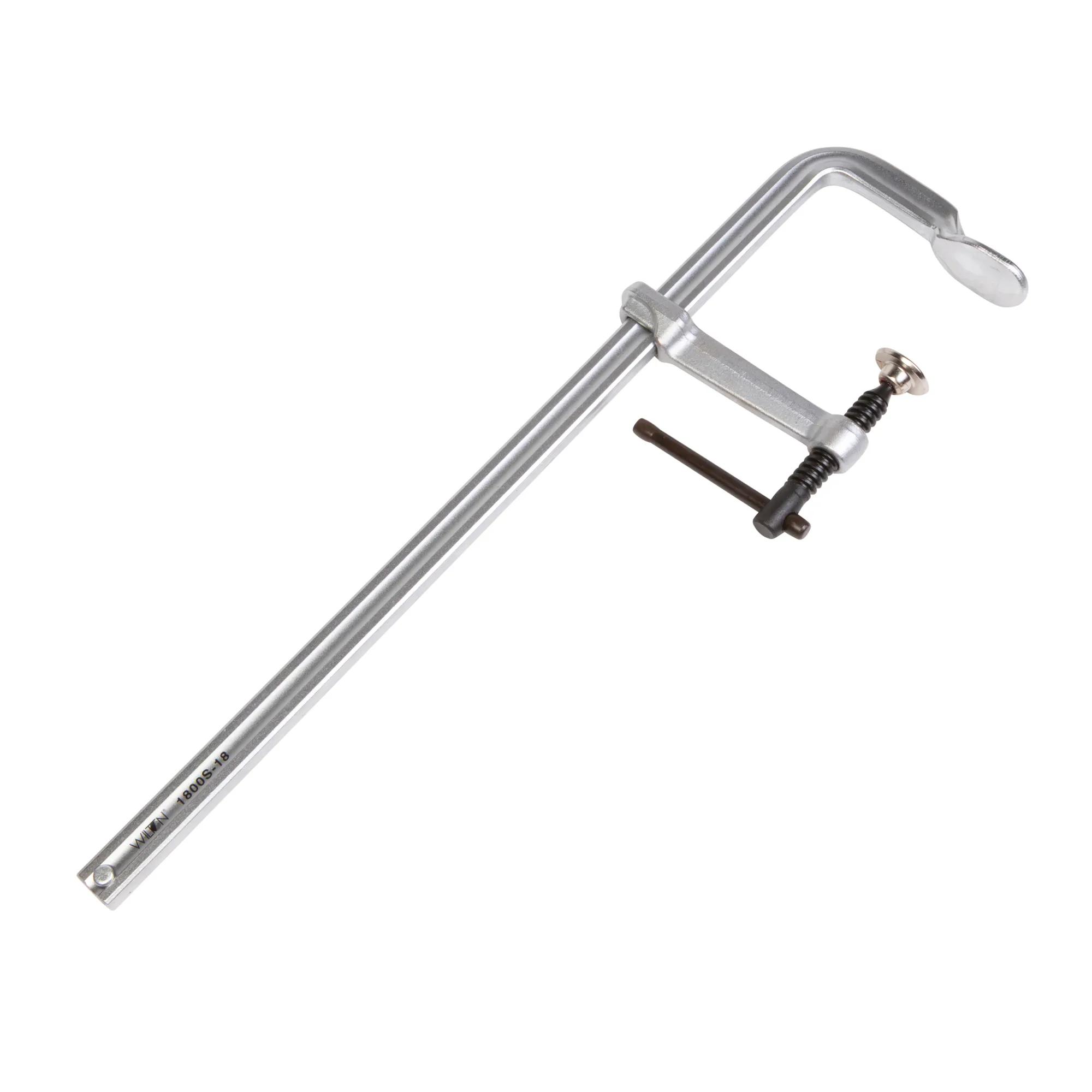

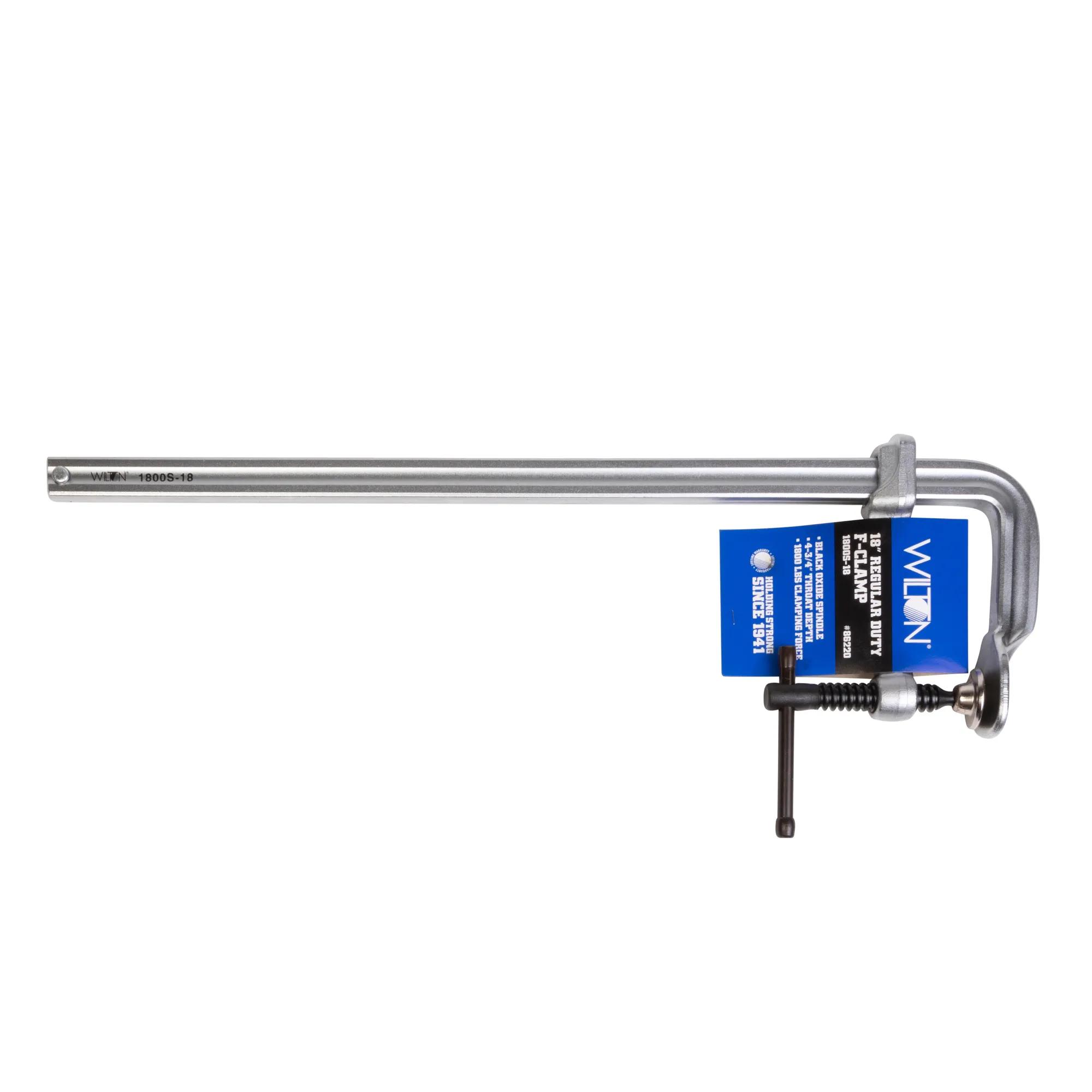

18 in. Regular Duty F-Clamp - (1800S-18)

Stock Number: WL9-86220

  • 18 in. Regular Duty
  • 1,800 lbs. F-Clamp Force, 18 in.
  • Mid-Range Performance, 18 in.
  • Mid-Range Industrial Standard
BUY NOW
Wilton Lifetime Warranty
Loading Need Parts Banner

Product Details

Opening from 0 to 18 in., this clamp delivers 1,800 lbs. of clamping force with a 4-3/4 in. throat depth. This mid-range F-clamp bridges the gap between light-duty hobby clamps and heavy-duty fabrication tools, making it suitable for woodworking, general fabrication, and maintenance work. The steel bar and jaw assembly withstands repeated clamping cycles without bending or loosening, and the sliding jaw locks firmly at any position along the bar. A comfortable handle provides the leverage needed to apply full clamping pressure without hand strain during extended work sessions. Flat contact pads distribute force evenly, protecting workpiece surfaces while maintaining a secure grip. The 1800S Regular Duty is the go-to F-clamp when the work calls for more force than light-duty offers but doesn't require the cost of heavy-duty tooling.

Features

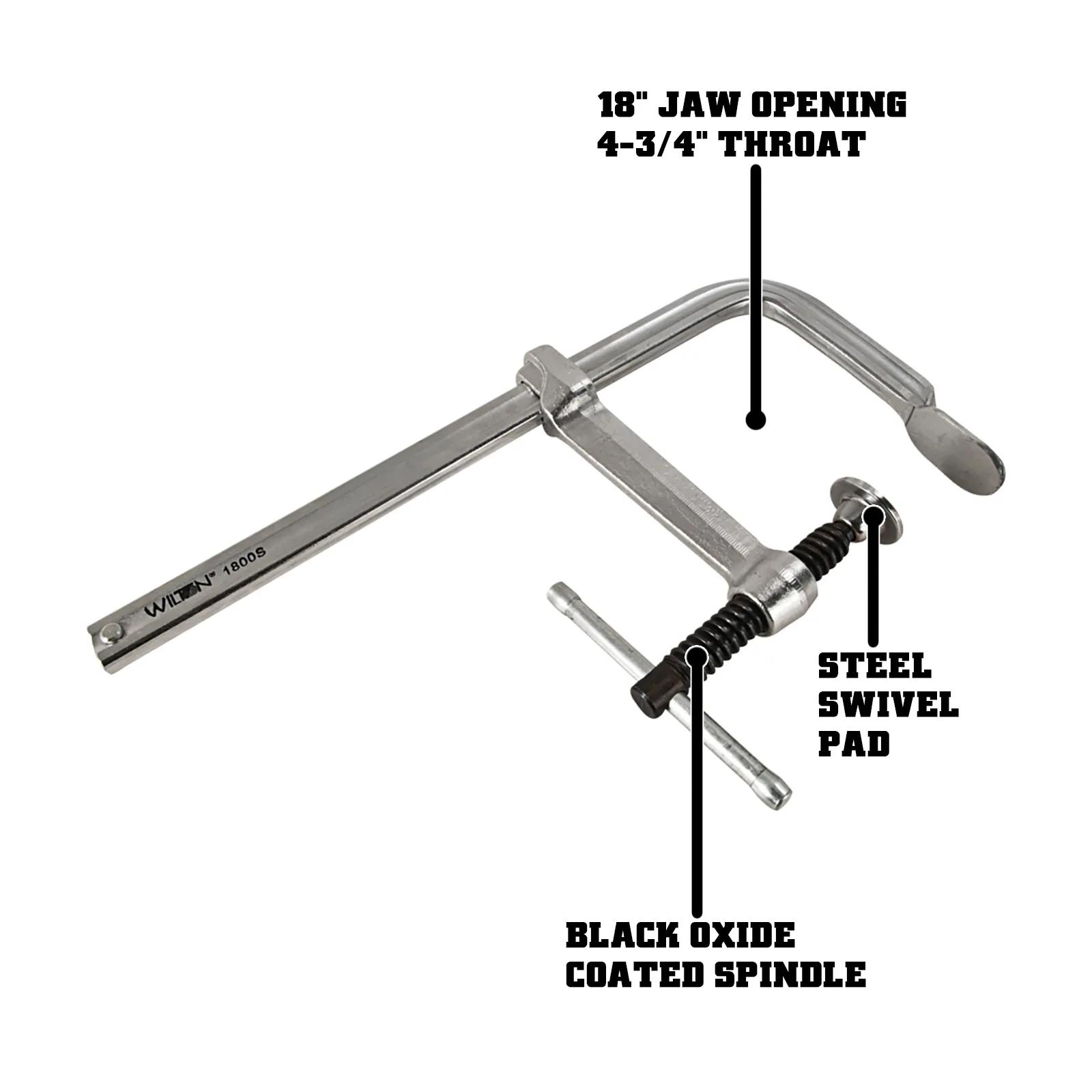

  • Opens 0 to 18 in. for versatile clamping across material thicknesses
  • 4-3/4 in. throat depth reaches past edges for face and edge clamping setups
  • Delivers 1,800 lbs. through a steel frame built for production loads
  • 1,800 lbs. capacity through Steel construction spanning 18 in. of travel
  • Spindle mechanism delivers consistent 1,800 lbs. pressure at any point within 4-3/4 in.
  • Pad pivot action ensures full-face contact on tapered and angled stock — up to 0 in. - 18 in. — 4-3/4 in. throat depth (1800S-18)
  • At 5 lbs., this clamp balances holding power with portability between stations

Specifications

  • SKU
    WL9-86220
  • Capacity
    0 - 18 in.
  • Clamping Force
    1800 lbs.
  • Horse Power
    1/8
  • Material Type
    Steel
  • Model Number
    1800S-18
  • Net Weight
    5
  • Old Material Number
    86220
  • Product Type
    Tools & Equipment
  • Prop 65
    Cancer and Reproductive Harm
  • SAP Gross Weight
    6
  • Spindle Diameter
    5/8 in.
  • Throat Depth
    4-3/4 in.
  • UPC
    731325228250
  • Warranty
    Limited Lifetime Warranty
