Product Details

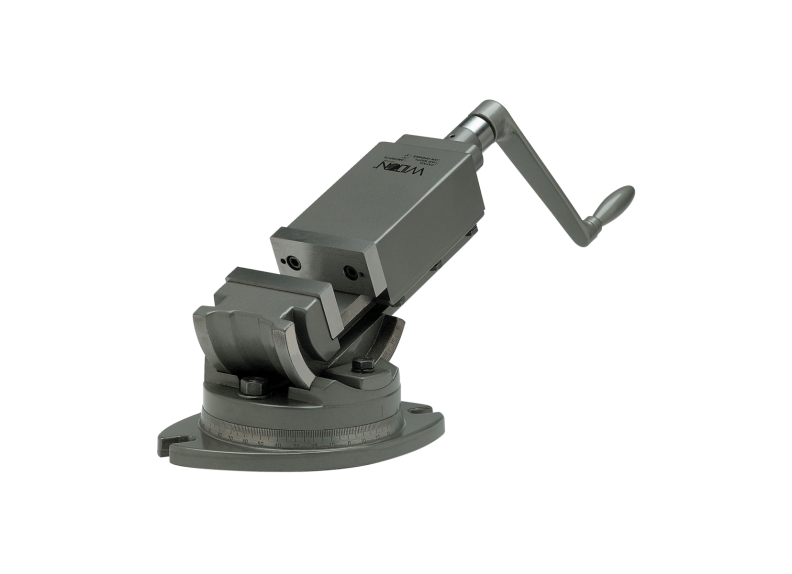

Smallest 2-axis angular vise in the precision lineup — 2 in. jaw width with 1 in. depth for fine detail machining at compound angles. Close-grained, high-tensile alloy castings ensure rigidity under cutting loads. Dual-axis rotation sets workpieces at precise angles for milling and drilling without repositioning.

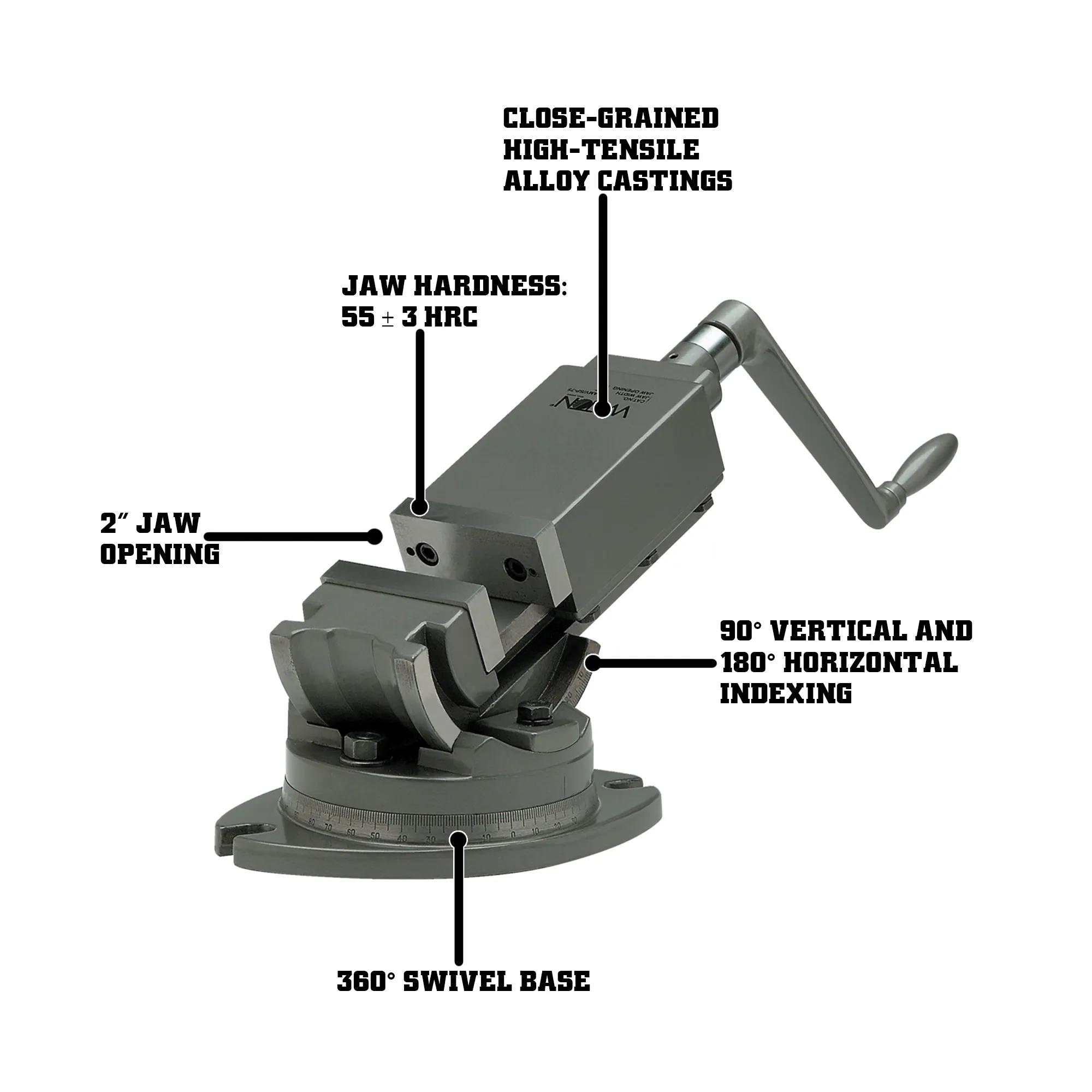

Features
- Indexes horizontally through a full 180 degrees for angled precision cuts
- Compact 2 in. jaws fit tight spaces on small milling tables and drill presses
- 90-degree vertical plus 180-degree horizontal axes cover compound angle work in one setup
- Precision-ground mating surfaces hold tight tolerances across both axes
- 2 in. jaw width and 2 in. jaw opening accommodate small precision components in tool-and-die and prototype applications
- Heavy-duty cast-iron body absorbs vibration during milling operations to maintain dimensional accuracy throughout the cut
- Bolt-down mounting slots align easily with standard T-slot tables for rigid fixturing on milling machines and drill presses
Specifications
- SKUWL9-11703
- Horse Power1/8
- Jaw Depth0.9375 in.
- Jaw Width2 in.
- Maximum Vise Opening2 in.
- Model NumberAMV/SP-50
- Net Weight8.700
- Number of Mounting Points2
- Old Material Number11703
- Opening Capacity Max2 in.
- Product TypeTools & Equipment
- Prop 65Cancer and Reproductive Harm
- SAP Gross Weight8.700
- Throat Depth15/16 in.
- Type of Base2 Axis
- UPC019907117032
- WarrantyLimited Lifetime Warranty
