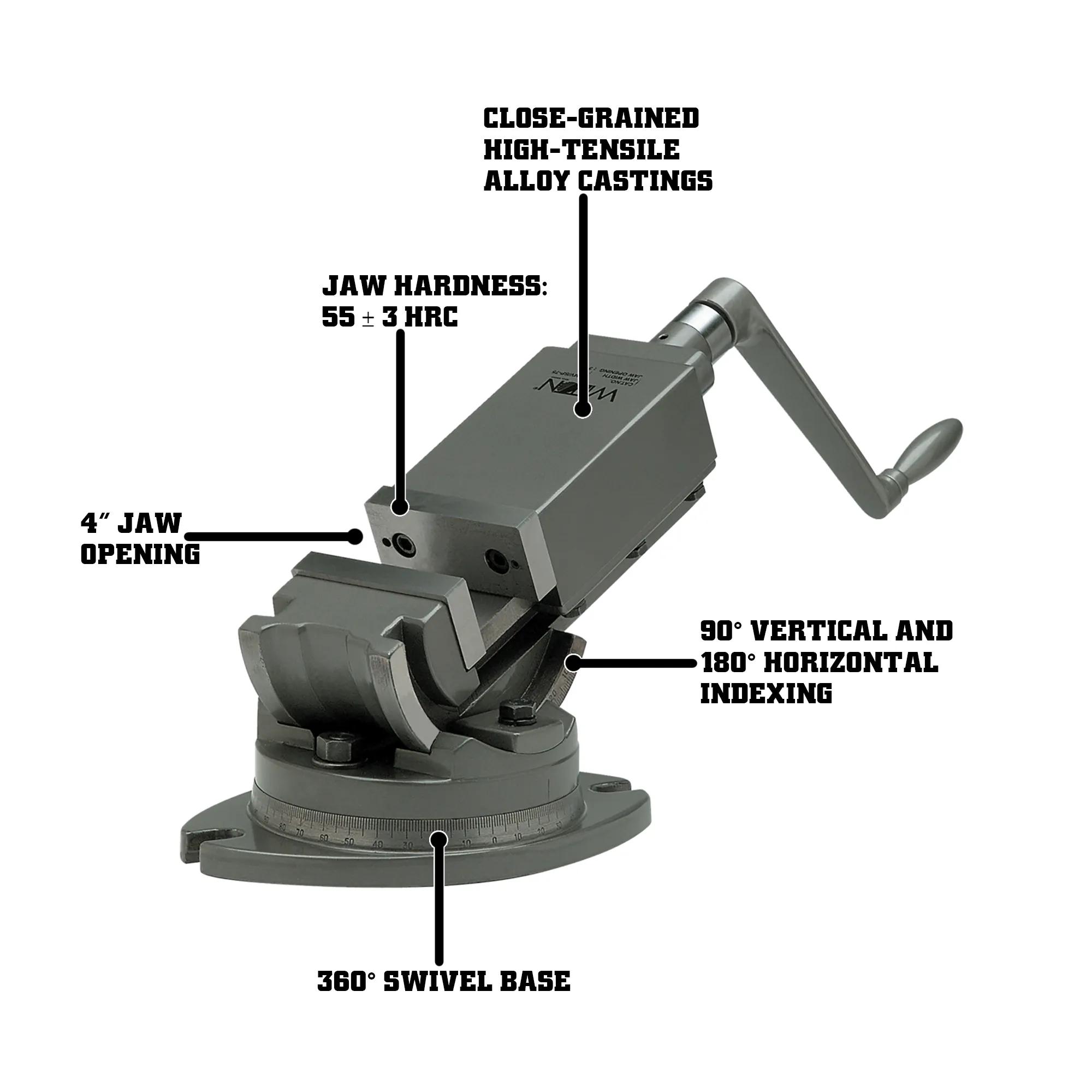

4 in. 2-Axis Angular Tiltling Vise
4 in. 2-Axis Angular Tiltling Vise
4 in. 2-Axis Angular Tiltling Vise

4 in. 2-Axis Angular Tiltling Vise

Stock Number: WL9-11705

  • Flame-Hardened Jaw Inserts
  • Acme-Thread Lead Screw
  • 1-9/16 in. Throat Depth
BUY NOW
Wilton Lifetime Warranty

Product Details

Versatile 2-axis angular vise at 4 in. jaw width and 1-1/2 in. depth — the most popular size for general angular machining work. High-tensile alloy castings hold tolerance under aggressive cutting. Dual-axis positioning covers the broadest range of compound-angle setups in tool rooms and production shops.

Features

  • Horizontal axis sweeps 180 degrees for versatile milling and drilling setups
  • Mid-range 4 in. jaw width handles most standard shop tooling and part sizes
  • Two independent axes let you set vertical tilt and horizontal angle without unclamping the part
  • Every mating surface is ground flat for consistent accuracy across both indexing planes
  • Rigid cast-iron base dampens vibration, protecting surface finish quality during heavy milling or face-cutting operations
  • T-slot bolt pattern mounts directly to standard milling tables, keeping setup time to a minimum between angle changes
  • Precision acme-thread lead screw delivers smooth, backlash-free jaw movement for fine positioning of close-tolerance parts

Specifications

  • SKU
    WL9-11705
  • Horse Power
    1/8
  • Jaw Depth
    1.5625 in.
  • Jaw Width
    4 in.
  • Maximum Vise Opening
    4 in.
  • Model Number
    AMV/SP-100
  • Net Weight
    42.850
  • Number of Mounting Points
    2
  • Old Material Number
    11705
  • Opening Capacity Max
    4 in.
  • Product Type
    Tools & Equipment
  • Prop 65
    Cancer and Reproductive Harm
  • SAP Gross Weight
    42.850
  • Throat Depth
    1-9/16 in.
  • Type of Base
    2 Axis
  • UPC
    019907117056
  • Warranty
    Limited Lifetime Warranty
