6 in. 2-Axis Angular Tiltling Vise
6 in. 2-Axis Angular Tiltling Vise
6 in. 2-Axis Angular Tiltling Vise

6 in. 2-Axis Angular Tiltling Vise

Stock Number: WL9-11707

  • Compound-Angle Machining
  • Dual-Axis Degree Scales
  • 100 lb Cast-Iron Stability
BUY NOW
Wilton Lifetime Warranty

Product Details

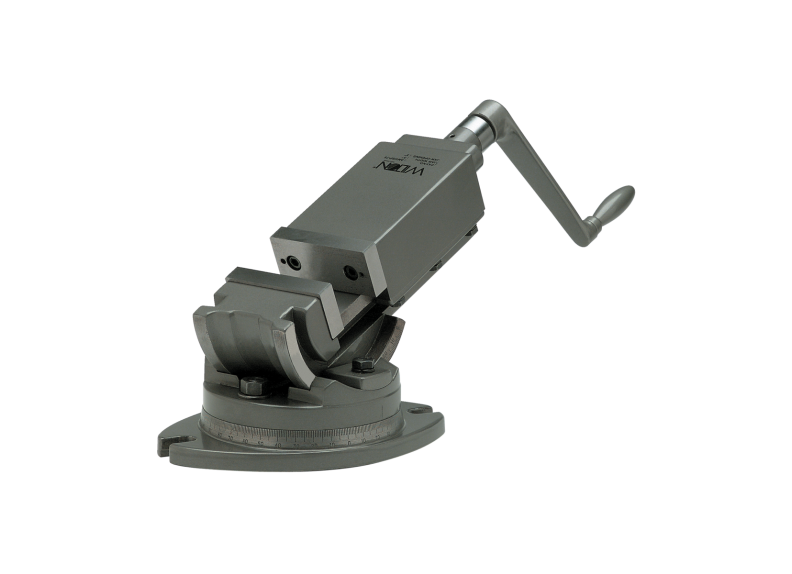

Largest 2-axis angular vise at 6 in. jaw width and 1-3/4 in. depth for oversized parts requiring compound-angle work. High-tensile alloy castings provide maximum rigidity for heavy material removal. Dual-axis capability positions the widest stock at precise angles for milling, drilling, and inspection.

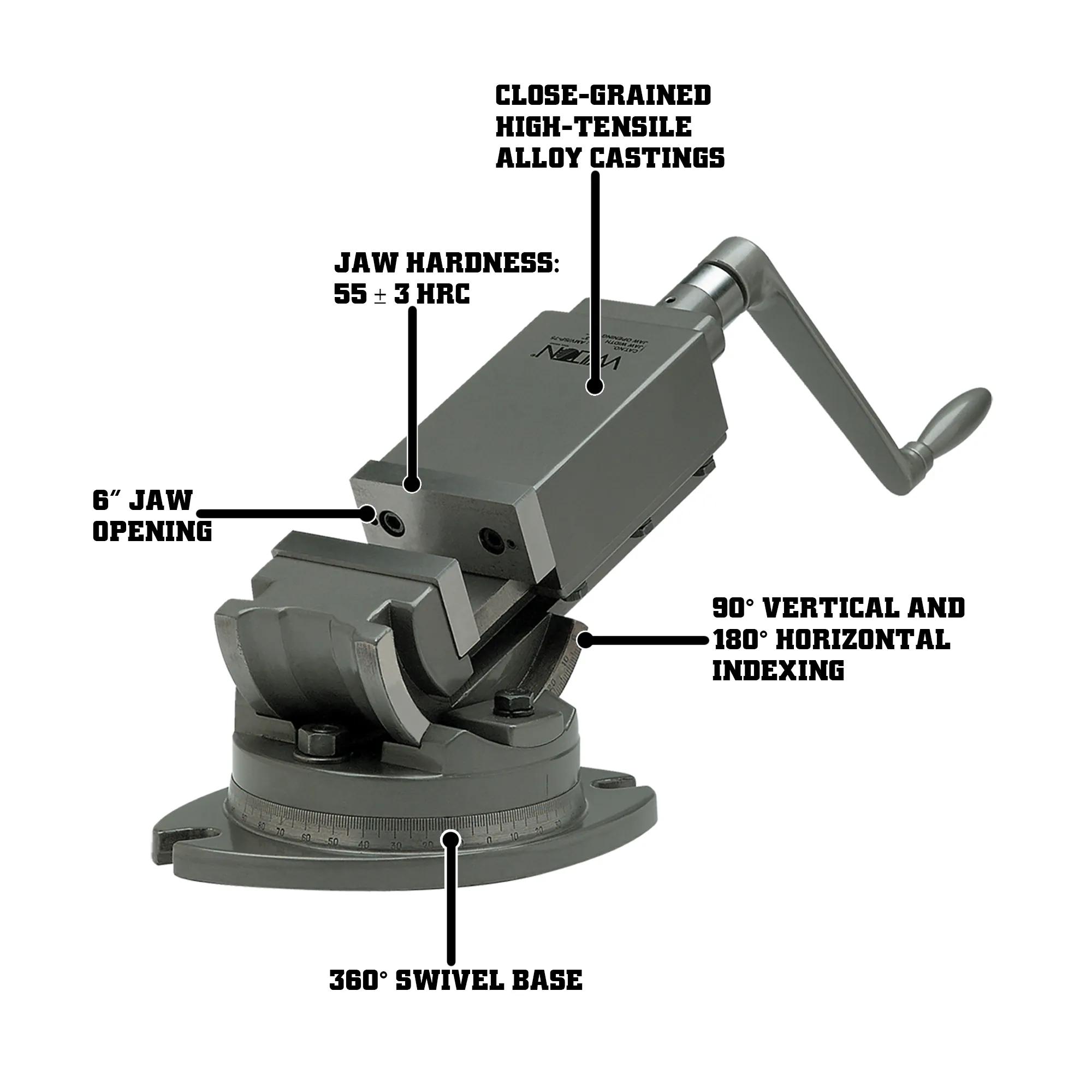

Features

  • Largest model indexes across 180 degrees on the horizontal plane for complex work
  • Full 6 in. jaw capacity handles oversized parts other angular vises can't reach
  • Both axes adjust independently so operators can dial in complex angles without repositioning stock
  • Ground on all critical surfaces for the tight tolerances precision machining demands
  • Clearly etched dual-axis degree scales speed up angular changeovers and help operators verify settings before each cut
  • Hardened jaw inserts deliver long service life in high-volume environments where frequent clamping would wear softer materials
  • Direct-mount T-slot base bolts to standard milling and drill-press tables without spacers or custom fixture plates

Specifications

  • SKU
    WL9-11707
  • Horse Power
    1/8
  • Jaw Depth
    2
  • Jaw Width
    6 in.
  • Maximum Vise Opening
    6 in.
  • Model Number
    AMV/SP-150
  • Net Weight
    100.920
  • Number of Mounting Points
    2
  • Old Material Number
    11707
  • Opening Capacity Max
    6 in.
  • Product Type
    Tools & Equipment
  • Prop 65
    Cancer and Reproductive Harm
  • SAP Gross Weight
    100.920
  • Throat Depth
    2 in.
  • Type of Base
    2 Axis
  • UPC
    019907117070
  • Warranty
    Limited Lifetime Warranty
