Product Details

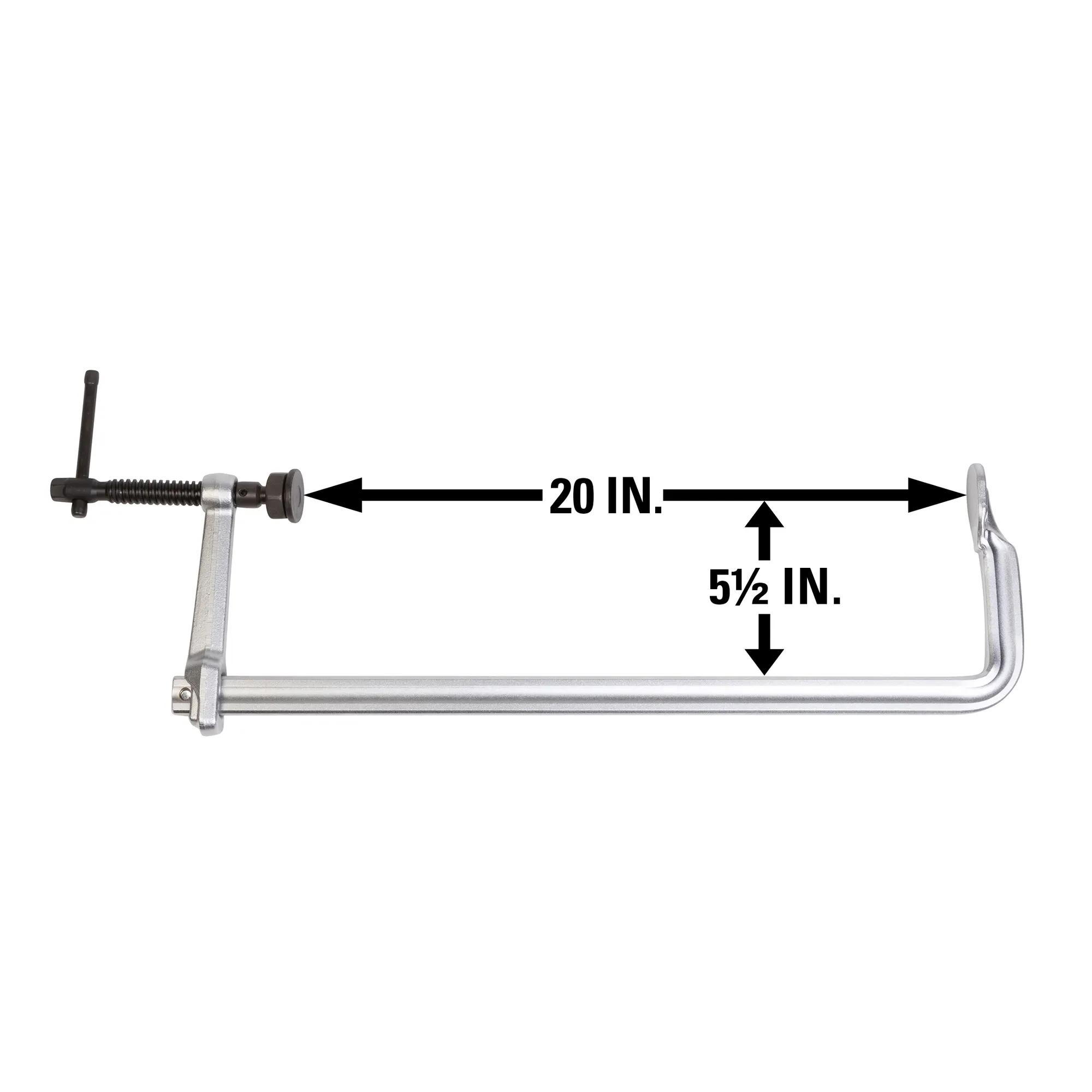

Steel construction delivers this clamp, opening 0 to 20 in. with 2,660 lbs. of clamping force and a 5-1/2 in. throat depth. Built for demanding fabrication, construction, and production environments, the heavy-duty steel bar handles sustained high-pressure clamping without deflection. The oversized sliding jaw mechanism provides a wide bearing surface that prevents bar scoring and maintains smooth slide action over extended service life. A comfort-engineered handle delivers full clamping force without the hand fatigue that comes from repeated high-force tightening throughout a work shift. Hardened contact pads grip workpieces firmly while distributing pressure to prevent surface indentation on metal plate and structural members. The GSM Heavy Duty series is the professional fabricator's choice when F-clamp force ratings measured in thousands of pounds are not negotiable.
Features
- Capacity: 0 to 20 in. for heavy fabrication and construction clamping
- At 5-1/2 in. reach, positions 2,660 lbs. of pressure past workpiece edges
- 2,660 lbs. rated force backed by steel frame construction
- Spanning 20 in., the Steel frame supports 2,660 lbs. of clamping force (GSM50)
- Thread engagement maintains 2,660 lbs. hold steady at 5-1/2 in. depth positioning (GSM50)
- Swivel pad tilts to match workpiece angles without point-loading edges — up to 0 in. - 20 in. — 5-1/2 in. throat depth
- Net weight of 7.5 lbs. keeps it easily portable across work stations (5-1/2 in. throat)
Specifications
- SKUWL9-86670
- Material TypeSteel
- Model NumberGSM50
- Product TypeTools & Equipment
- Spindle Diameter3/4 in.
- Throat Depth5-1/2 in.
- UPC731325375428
