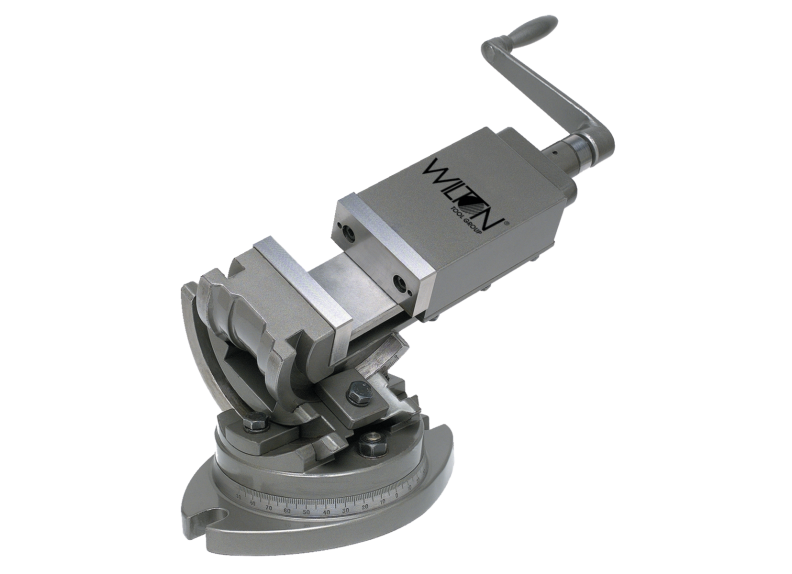

3 in. 3-Axis Precision Tiltling Vise
3 in. 3-Axis Precision Tiltling Vise
3 in. 3-Axis Precision Tiltling Vise

3 in. 3-Axis Precision Tiltling Vise

Stock Number: WL9-11701

  • Ground Locating Surfaces
  • Triple Locking Mechanisms
  • 2-Bolt Secure Table Mount
BUY NOW
Wilton Lifetime Warranty

Product Details

Step up to 3 in. jaw width with full 3-axis tilting for more versatile angular machining. High-tensile alloy construction holds tolerance through aggressive milling and drilling passes. Third tilt axis opens compound-angle possibilities that make complex parts feasible without custom fixturing.

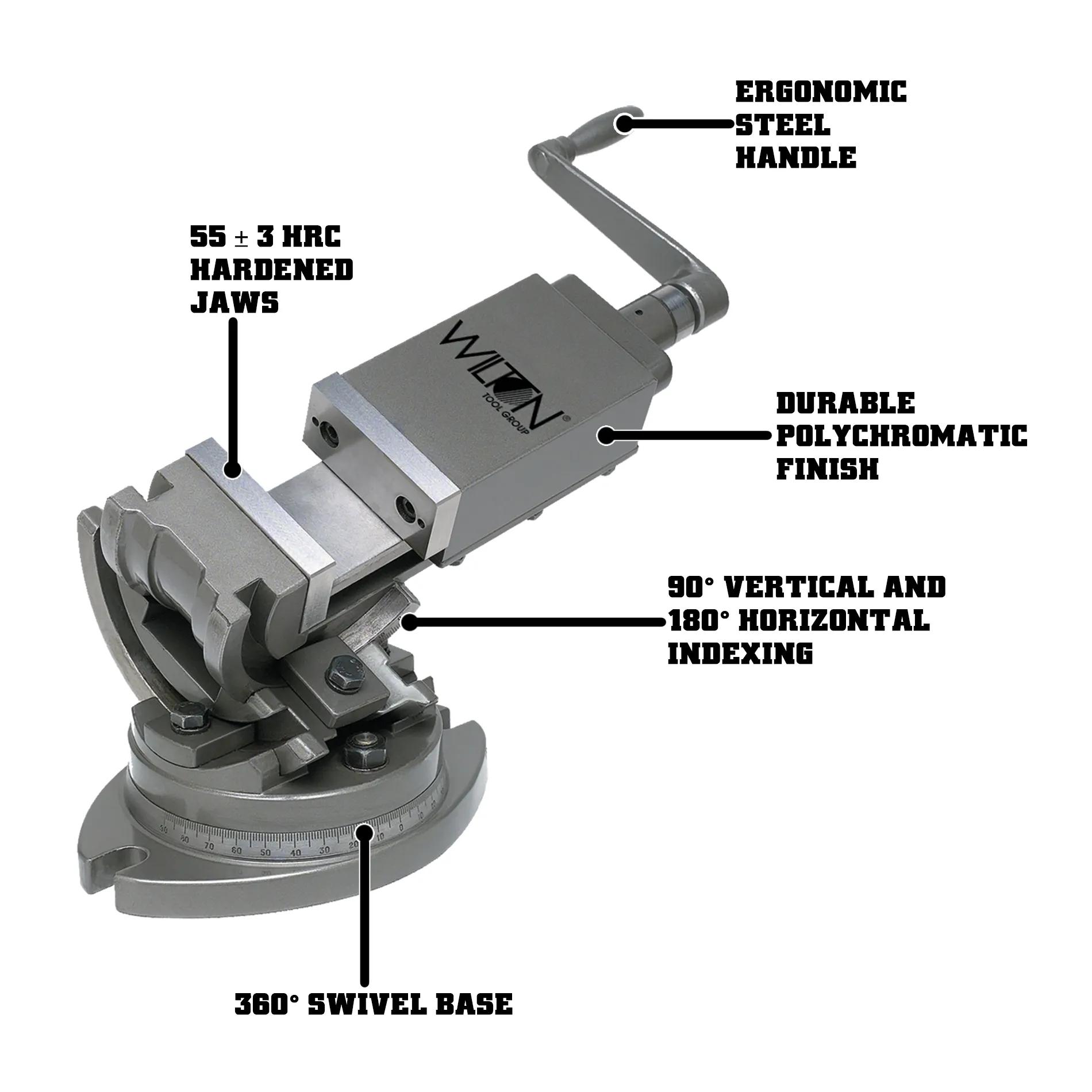

Features

  • Unrestricted 360-degree base rotation puts the workpiece at any compass point
  • 3 in. jaw width accommodates common fixture blocks and prototype components
  • Ground mating faces keep each axis true after repeated angle changes
  • Built-in keyway and bolt-slot pattern mounts directly to common machine tables
  • 90-degree tilt axis enables angled drilling, chamfering, and face milling without tipping the workpiece off the table
  • Locking mechanisms on each axis hold the selected angle firmly under cutting loads, preventing drift during heavy passes
  • Durable cast-iron construction absorbs machine vibration and provides a stable platform for precision finishing cuts

Specifications

  • SKU
    WL9-11701
  • Horse Power
    1/8
  • Jaw Depth
    1.3125 in.
  • Jaw Width
    3 in.
  • Maximum Vise Opening
    3 in.
  • Model Number
    TLT/SP-75
  • Net Weight
    25.850
  • Number of Mounting Points
    2
  • Old Material Number
    11701
  • Opening Capacity Max
    3 in.
  • Product Type
    Tools & Equipment
  • Prop 65
    Cancer and Reproductive Harm
  • SAP Gross Weight
    25.850
  • Throat Depth
    1-5/16 in.
  • Type of Base
    3 Axis
  • UPC
    019907117018
  • Warranty
    Limited Lifetime Warranty
