3 in. Cradle Style Angle Drill Press Vise
3 in. Cradle Style Angle Drill Press Vise
3 in. Cradle Style Angle Drill Press Vise

3 in. Cradle Style Angle Drill Press Vise

Stock Number: WL9-11753

  • 1/2 in. Shoulder Slot Mount
  • Angled Drilling & Tapping
  • 4-Bolt Secure Table Mount
BUY NOW
Wilton Lifetime Warranty

Product Details

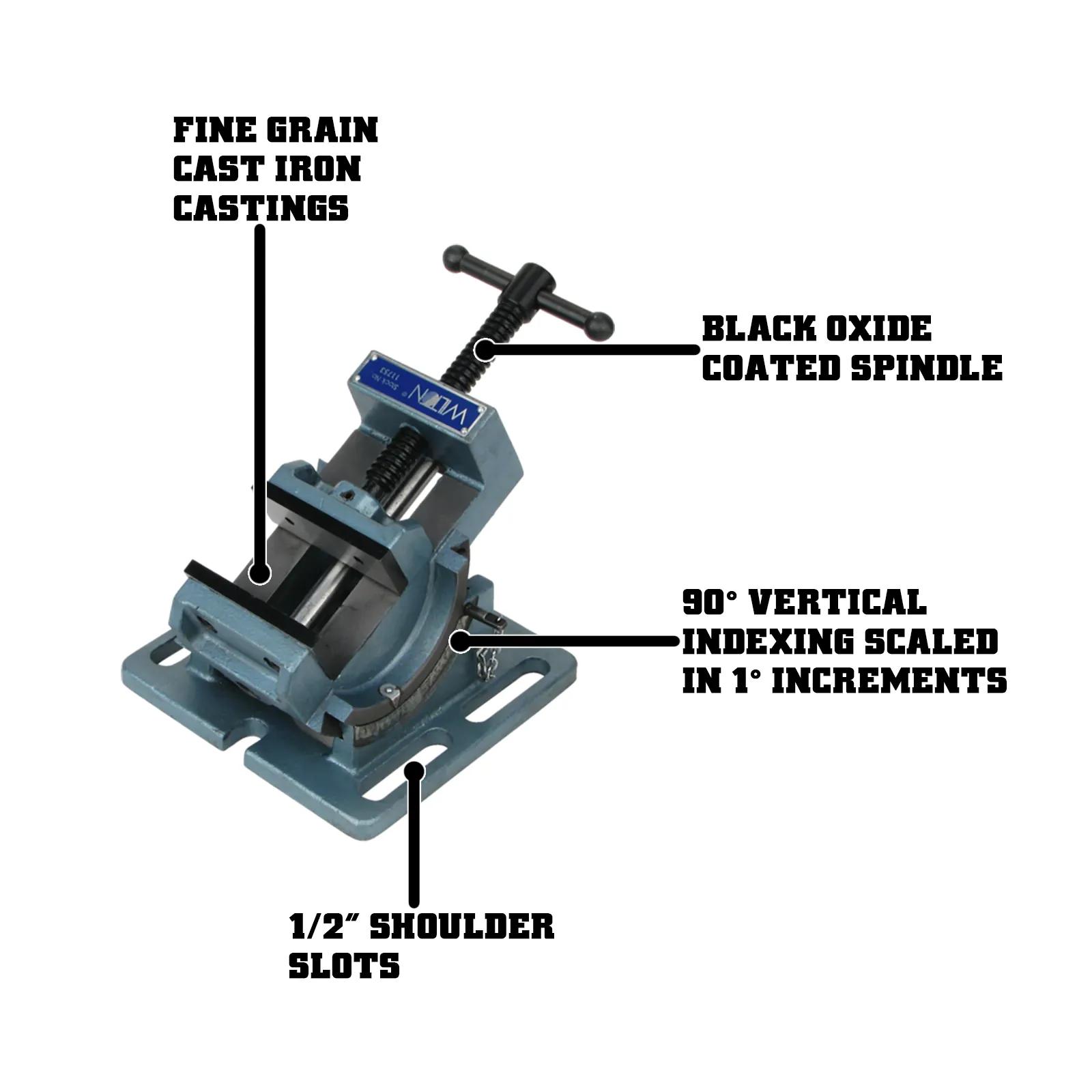

Cradle-style design angles the entire vise body for drilling and tapping at precise angles on the drill press. Hardened V-grooved jaws clamp round objects vertically and horizontally. Three-inch jaw width with stationary base suits smaller angled workpieces. Backed by Wilton's lifetime warranty.

Features

  • Four half-inch shoulder slots in the base speed up positioning on the machine table
  • Cradle indexes 90 degrees vertically with graduations at every single degree for precise angle setting
  • Handles drilling, tapping, and reaming at any angle the cradle indexes to
  • Purpose-built for angled drilling, tapping, and reaming setups that fixed-base vises cannot handle
  • Cast-iron construction dampens drill vibration and keeps the workpiece steady during through-hole and tapping operations
  • Compact footprint saves table space and stores easily when not in use
  • Smooth lead-screw action provides fine clamping control for delicate or thin-walled parts

Specifications

  • SKU
    WL9-11753
  • Horse Power
    1/8
  • Jaw Depth
    1.125 in.
  • Jaw Width
    3 in.
  • Maximum Vise Opening
    3 in.
  • Model Number
    CR3
  • Net Weight
    12
  • Number of Mounting Points
    4
  • Old Material Number
    11753
  • Opening Capacity Max
    3 in.
  • Product Type
    Tools & Equipment
  • Prop 65
    Cancer and Reproductive Harm
  • SAP Gross Weight
    12
  • Throat Depth
    1-1/8 in.
  • Type of Base
    Stationary
  • UPC
    662755100246
  • Warranty
    Limited Lifetime Warranty
