Product Details

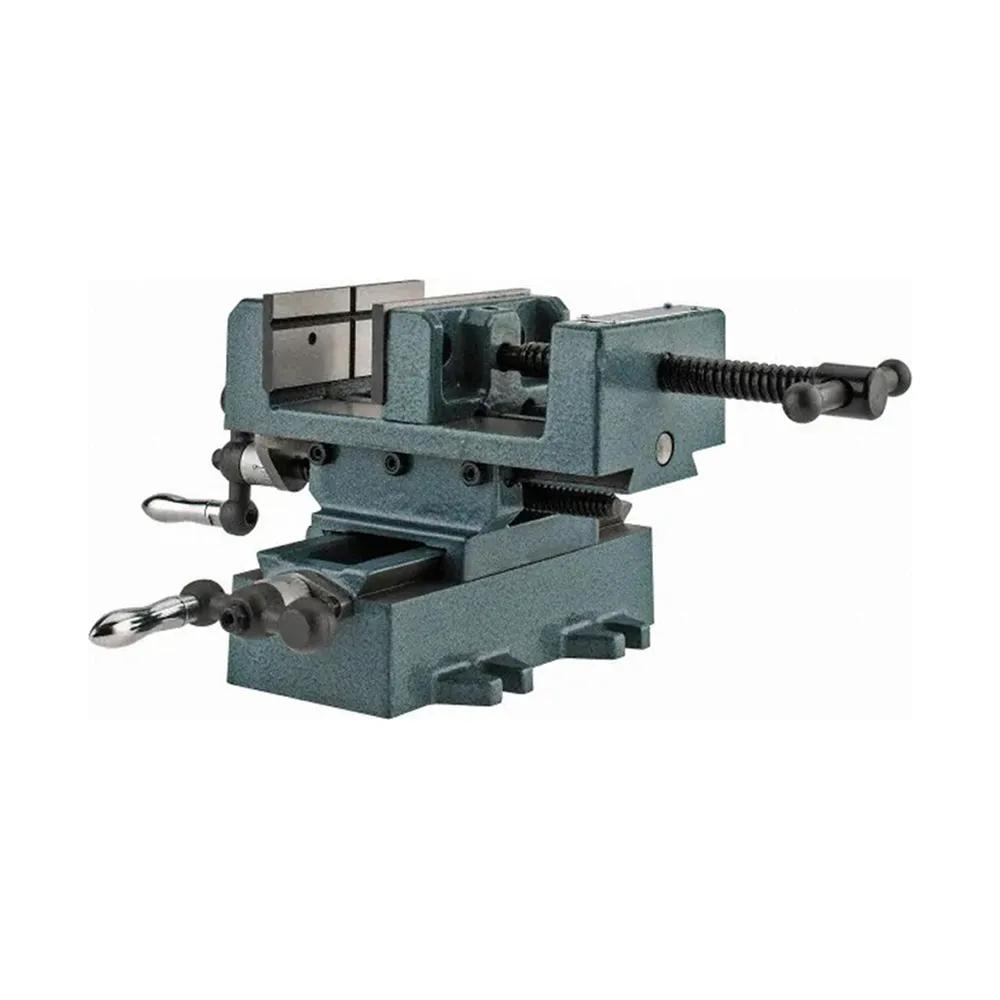

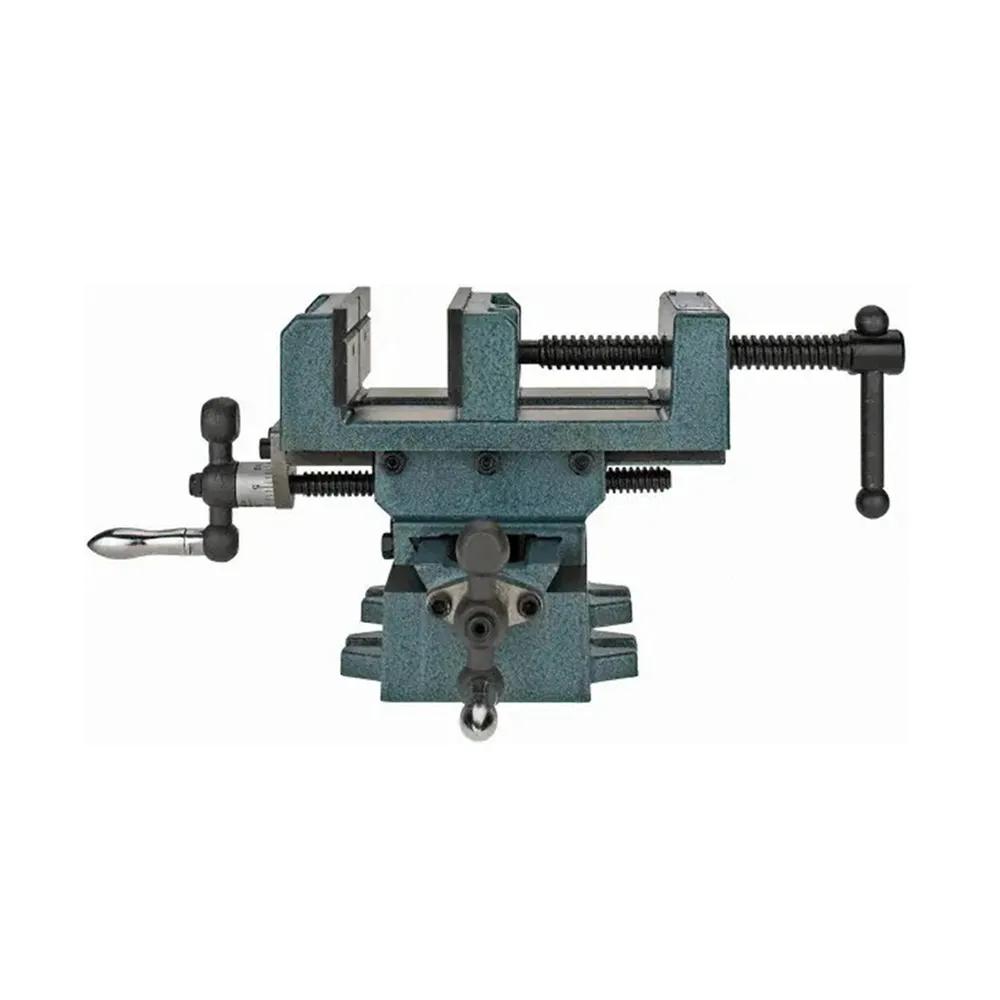

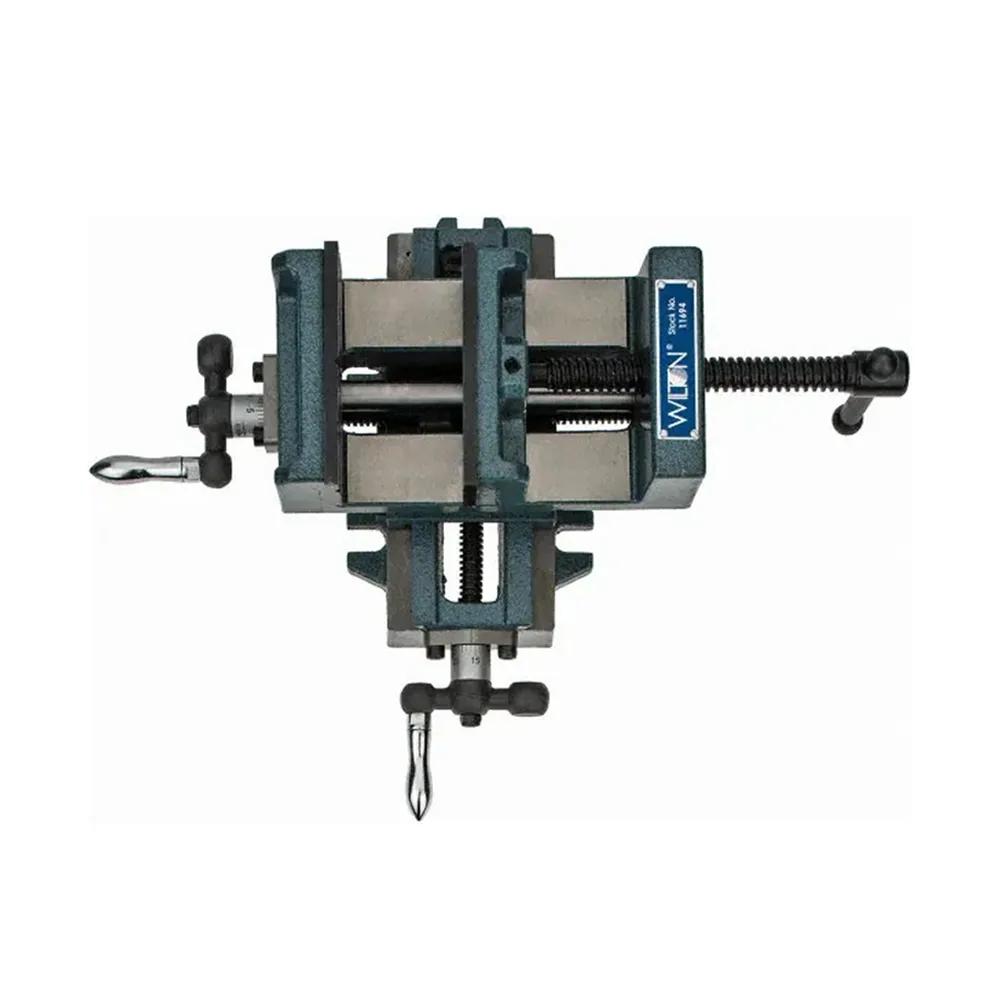

Four-inch cross slide drill press vise steps up jaw capacity while maintaining dual-axis sliding precision. Hardened V-grooved jaws handle round and flat stock. Repeat drills and taps across the workpiece without repositioning for faster throughput on production drilling operations.

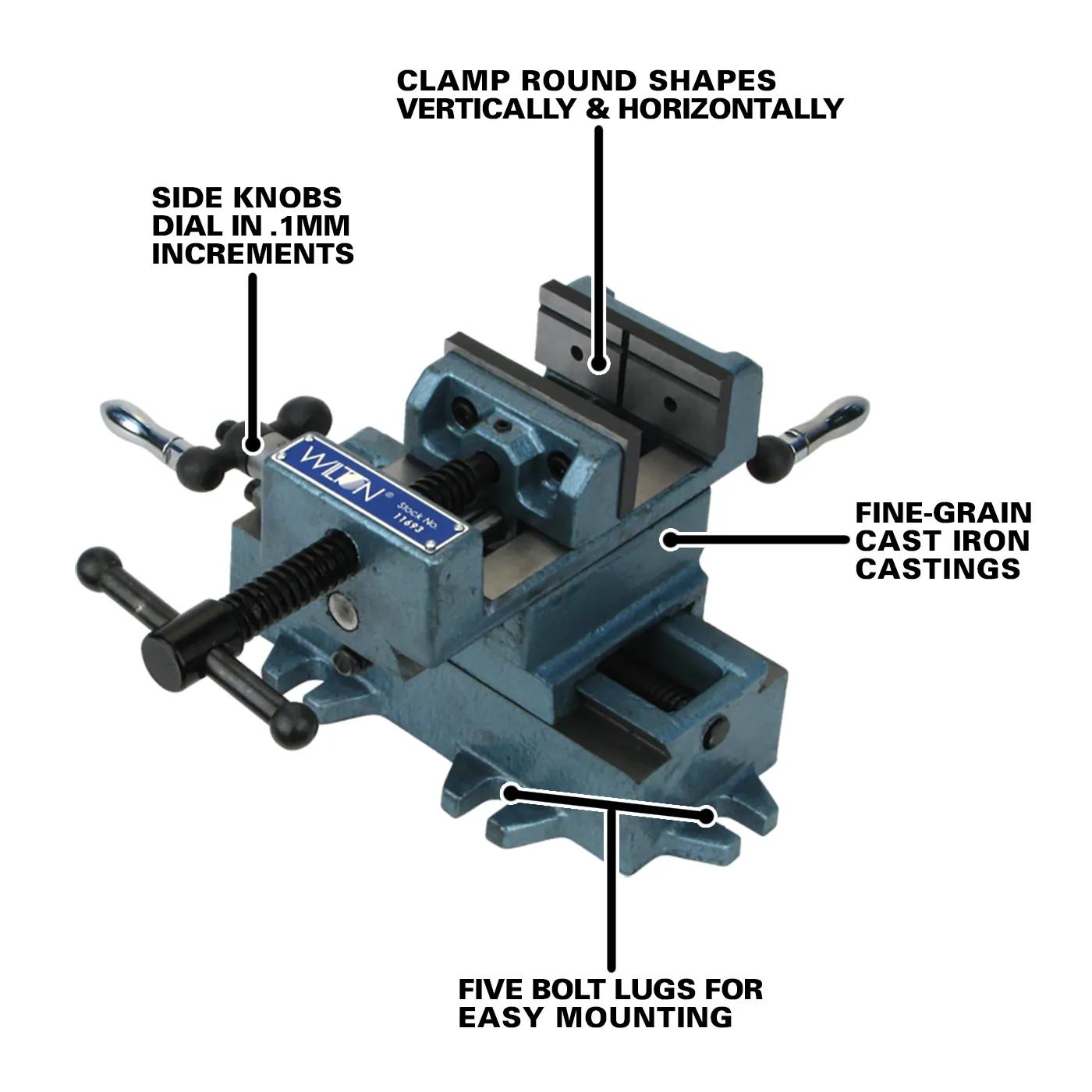

Features
- Cross-slide mechanism positions parts in two axes for accurate multi-hole layouts
- Graduated knobs adjust both axes in precise 0.1 mm steps for controlled travel
- Base mounts with five bolt lugs for solid, vibration-free table attachment
- Cast iron construction absorbs drilling forces for clean, accurate holes on every pass
- Hardened jaw faces prevent workpiece creep during repeated cross-slide movements, ensuring hole-to-hole accuracy
Specifications
- SKUWL9-11694
- Horse Power1/8
- Jaw Depth1.375 in.
- Jaw Width4 in.
- Maximum Vise Opening4 in.
- Model NumberCS4
- Net Weight20
- Number of Mounting Points5
- Old Material Number11694
- Opening Capacity Max4 in.
- Product TypeTools & Equipment
- Prop 65Cancer and Reproductive Harm
- SAP Gross Weight20
- Throat Depth1-3/8 in.
- Type of BaseStationary
- UPC662755100178
- WarrantyLimited Lifetime Warranty
- X Axis Travel5.0111111111111
