Product Details

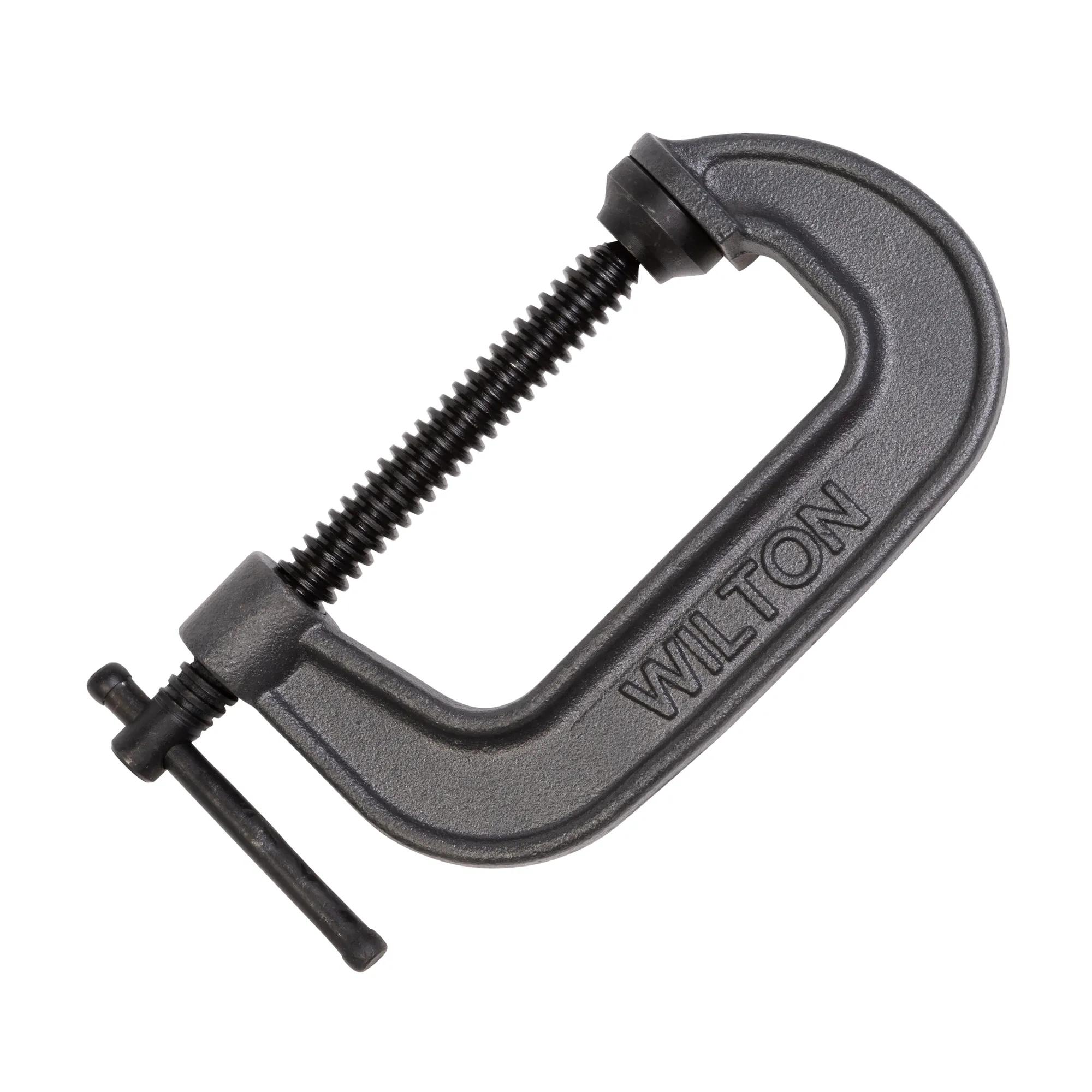

With a 4 in. jaw opening and 2,150 lbs. of holding power, this clamp features a 2-1/16 in. throat depth. Constructed from ductile iron, this carriage-style clamp delivers reliable holding power for woodworking, light fabrication, and assembly operations. The acme thread spindle engages smoothly at every point along the opening range, applying even pressure without the stick-slip common in lesser designs. A swivel pad at the spindle tip automatically conforms to workpiece angles, protecting finished surfaces while maintaining a secure grip. The 540A carriage frame profile keeps overall weight manageable without sacrificing the stiffness needed to resist deflection under full load. Whether securing panel glue-ups or holding stock for drilling, this clamp performs consistently across repeated clamping cycles.
Features

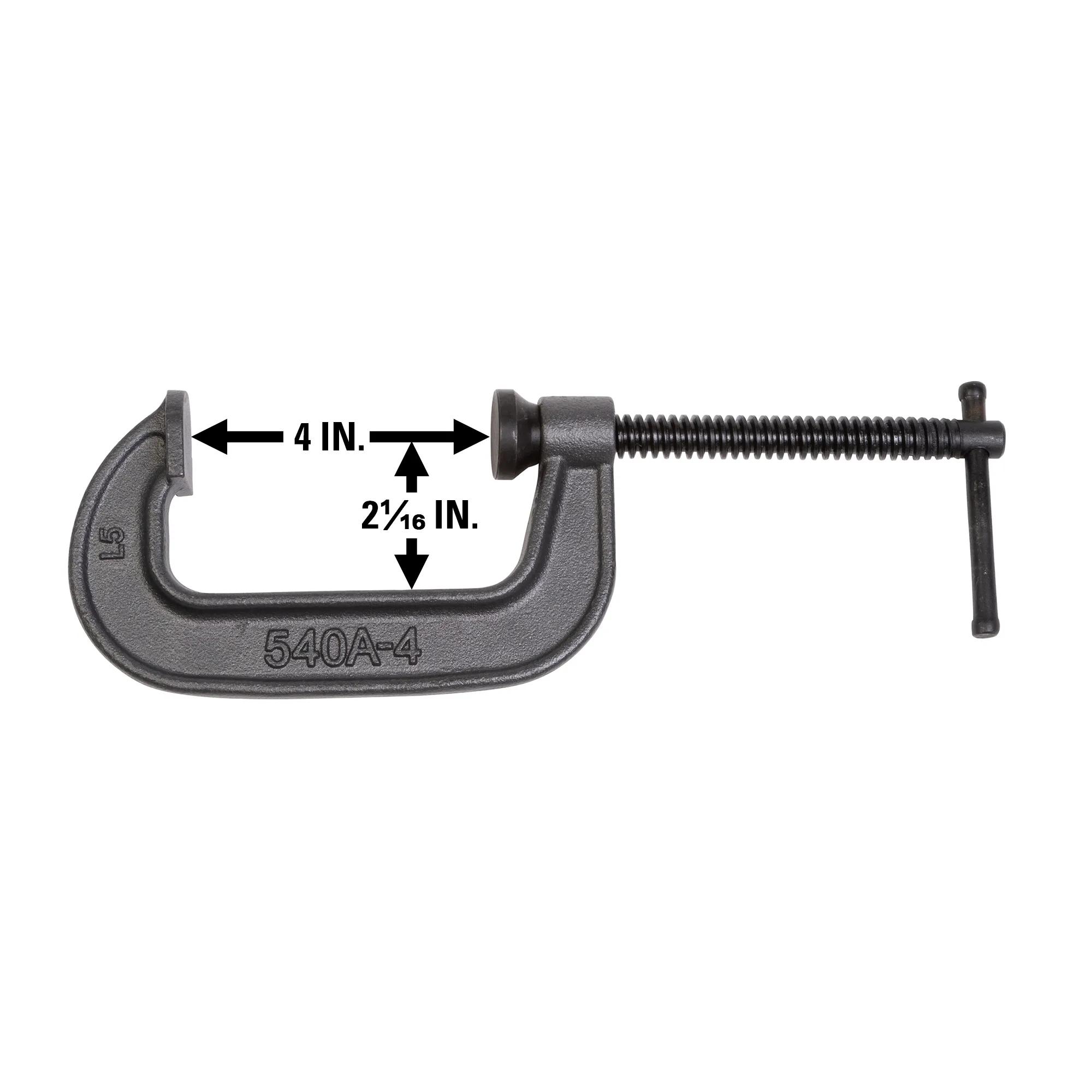

- Opens 0 to 4 in. accommodates a wide range of stock thicknesses
- 2-1/16 in. throat depth reaches past edges for offset clamping work
- 2,150 lbs. clamping force holds workpieces firmly during machining or assembly
- Spanning 4 in., the Ductile Iron frame supports 2,150 lbs. of clamping force
- Spindle mechanism delivers consistent 2,150 lbs. pressure at any point within 2-1/16 in.

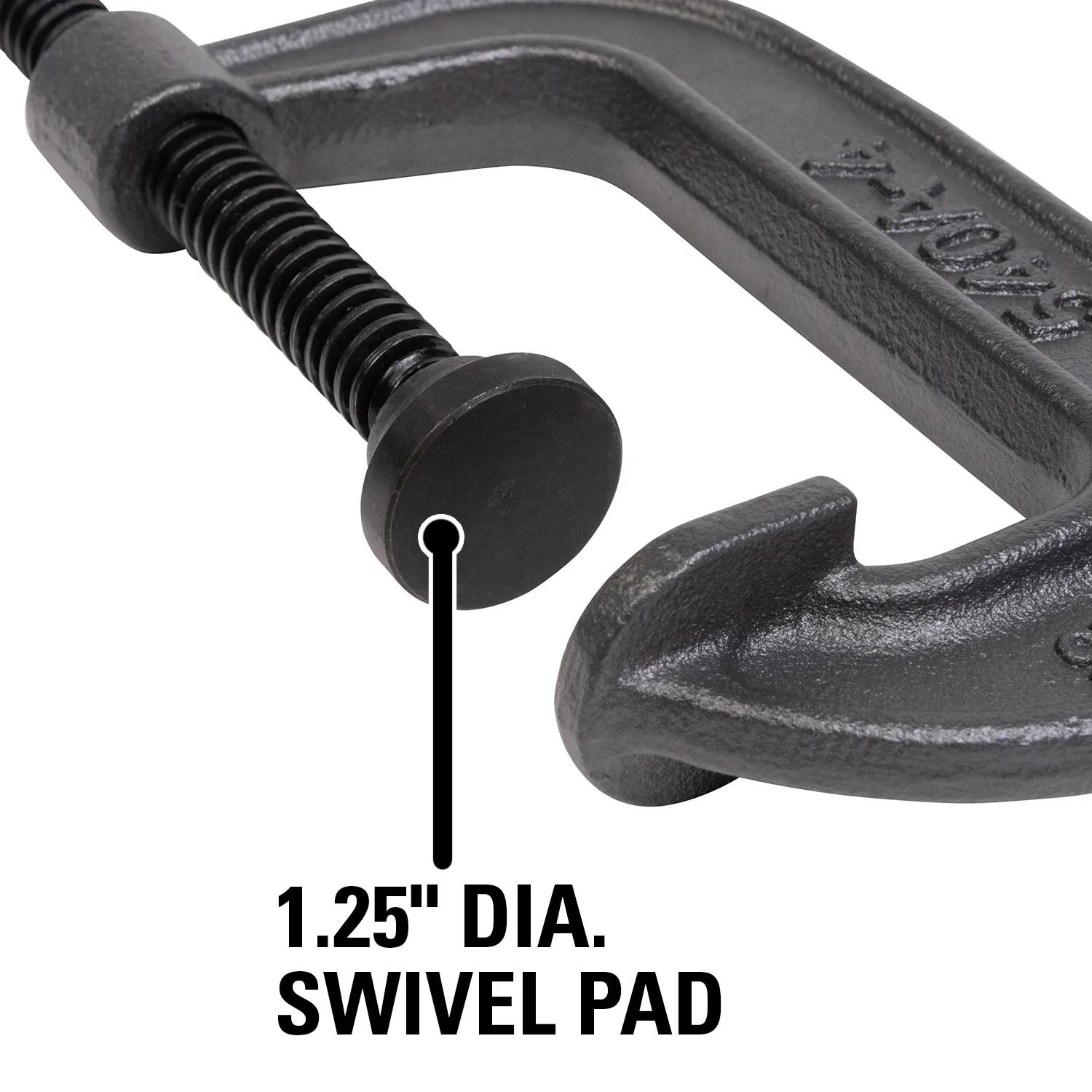

- Free-floating pad compensates for misalignment between clamp and work — up to 0 in. - 4 in. — 2-1/16 in. throat depth
- At 2.1 lbs., this clamp balances holding power with portability between stations
Specifications
- SKUWL9-22003
- Jaw Depth1.312 in.
- Material TypeDuctile Iron
- Model Number540A-4
- Product TypeTools & Equipment
- Spindle Diameter5/8 in.
- Throat Depth2-1/16 in.
- UPC019907220039
