Product Details

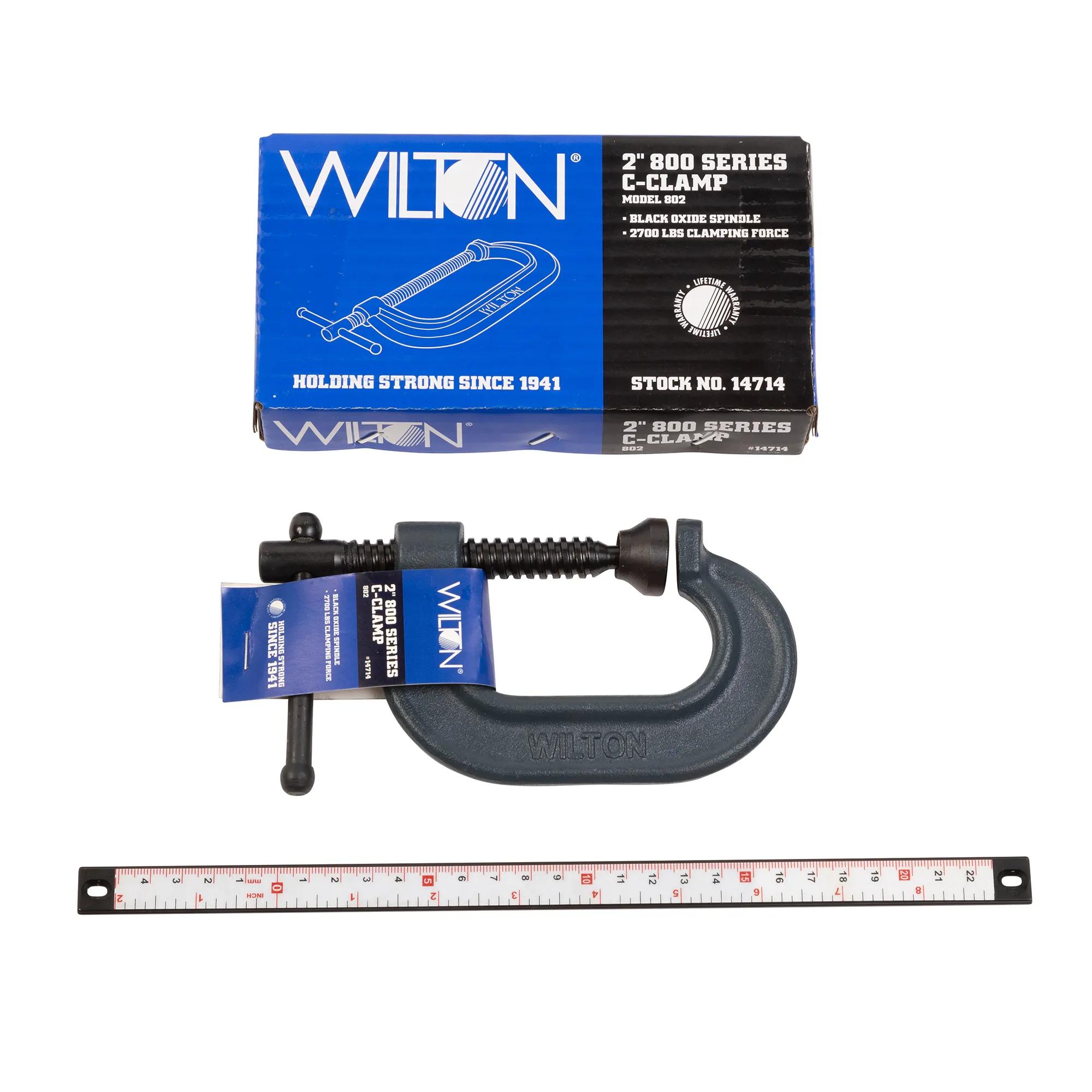

Part of Wilton's clamp, this model opens 0 to 2 in. with 2,700 lbs. of clamping force and a 1-13/16 in. throat depth. Drop forged steel construction delivers superior strength and fatigue resistance compared to cast alternatives, making this clamp a dependable choice for production welding, metal fabrication, and industrial assembly. The standard depth throat profile fits into tight spaces while still providing enough reach for most common clamping setups. A hardened acme thread spindle resists wear from continuous use and turns smoothly even under maximum load. The swivel pad at the spindle tip pivots freely to match workpiece contours, preventing surface damage and point loading. Built for shops that put clamps to work every day, the 800 Series balances clamping power with a manageable frame size that stores compactly on clamp racks.
Features
- Opens 0 in. - 2 in. for flexible stock sizing in fabrication and welding setups
- 1-13/16 in. standard depth throat clears edges without excess frame bulk
- 2,700 lbs. clamping force secures steel plate and structural members firmly
- Built from Drop Forged Steel, rated at 2,700 lbs. across the complete 2 in. opening
- Spindle applies 2,700 lbs. evenly across 1-13/16 in. throat without deflection or drift
- Wide-angle swivel pad adapts to irregular surfaces without repositioning — up to 0 in. - 2 in. — 1-13/16 in. throat depth
- Weighs 1.35 lbs. for manageable handling during extended setup and clamping sessions
Specifications
- SKUWL9-14714
- Material TypeDrop Forged Steel
- Model Number802
- Product TypeTools & Equipment
- Spindle Diameter9/16 in.
- Throat Depth1-13/16 in.
- UPC019907147145
