Product Details

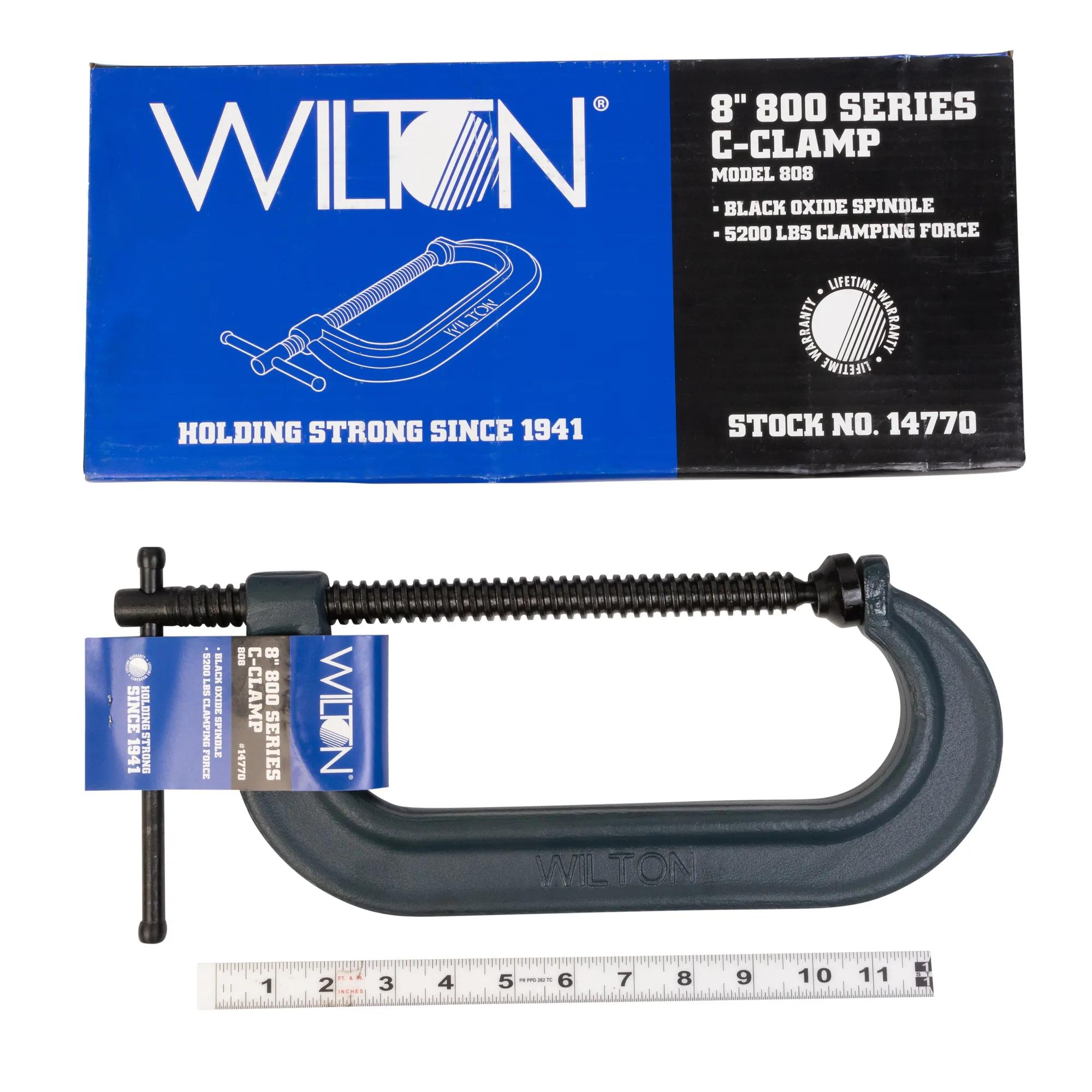

Opening from 0 to 8 in., this clamp delivers 5,200 lbs. of clamping force with a 3-7/16 in. throat depth. Drop forged steel construction delivers superior strength and fatigue resistance compared to cast alternatives, making this clamp a dependable choice for production welding, metal fabrication, and industrial assembly. The standard depth throat profile fits into tight spaces while still providing enough reach for most common clamping setups. A hardened acme thread spindle resists wear from continuous use and turns smoothly even under maximum load. The swivel pad at the spindle tip pivots freely to match workpiece contours, preventing surface damage and point loading. Built for shops that put clamps to work every day, the 800 Series balances clamping power with a manageable frame size that stores compactly on clamp racks.
Features
- Opens 0 in. - 8 in. for flexible stock sizing in fabrication and welding setups
- 3-7/16 in. standard depth throat clears edges without excess frame bulk
- 5,200 lbs. clamping force secures steel plate and structural members firmly
- Rated at 5,200 lbs., this Drop Forged Steel frame covers the full 8 in. range
- Spindle applies 5,200 lbs. evenly across 3-7/16 in. throat without deflection or drift
- Swivel contact pad reduces the risk of workpiece slippage under force — up to 0 in. - 8 in. — 3-7/16 in. throat depth
- 7 lbs. —light enough for frequent repositioning, strong enough for production
Specifications
- SKUWL9-14770
- Material TypeDrop Forged Steel
- Model Number808
- Product TypeTools & Equipment
- Spindle Diameter3/4 in.
- Throat Depth3-7/16 in.
- UPC019907147701
