Product Details

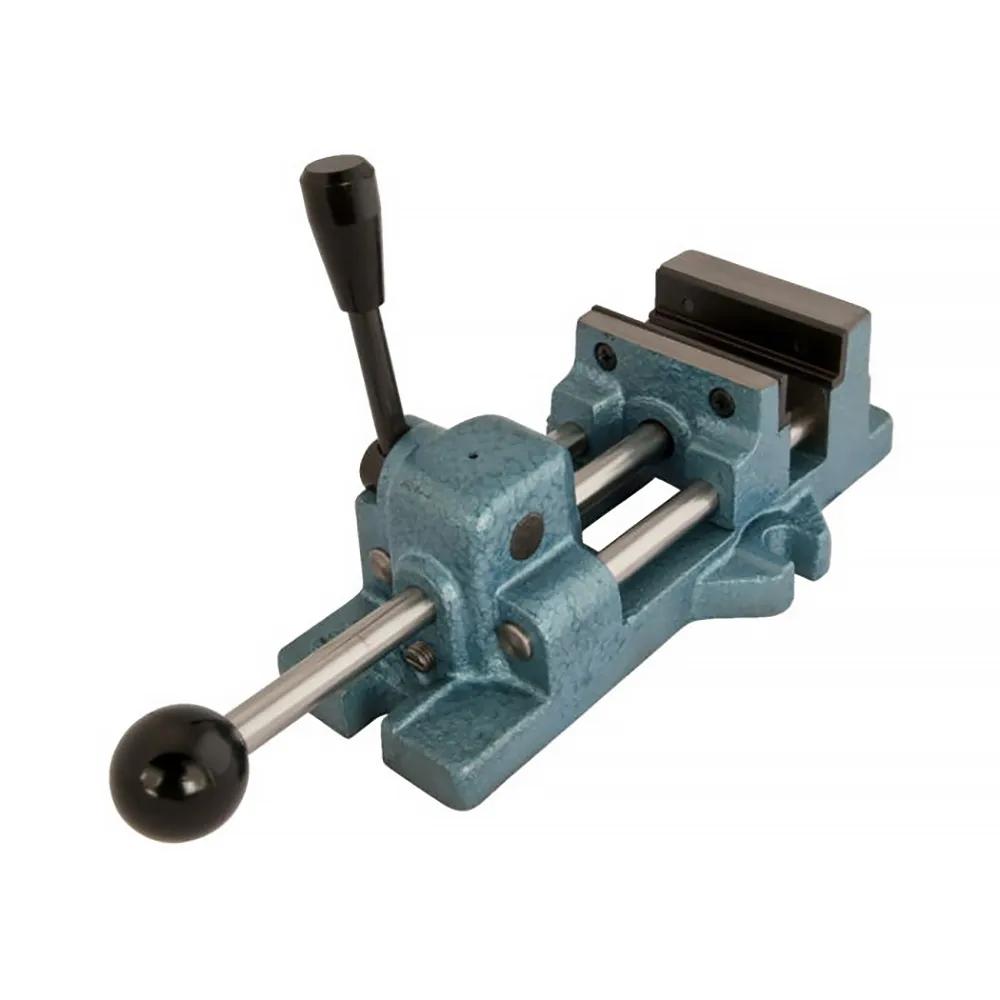

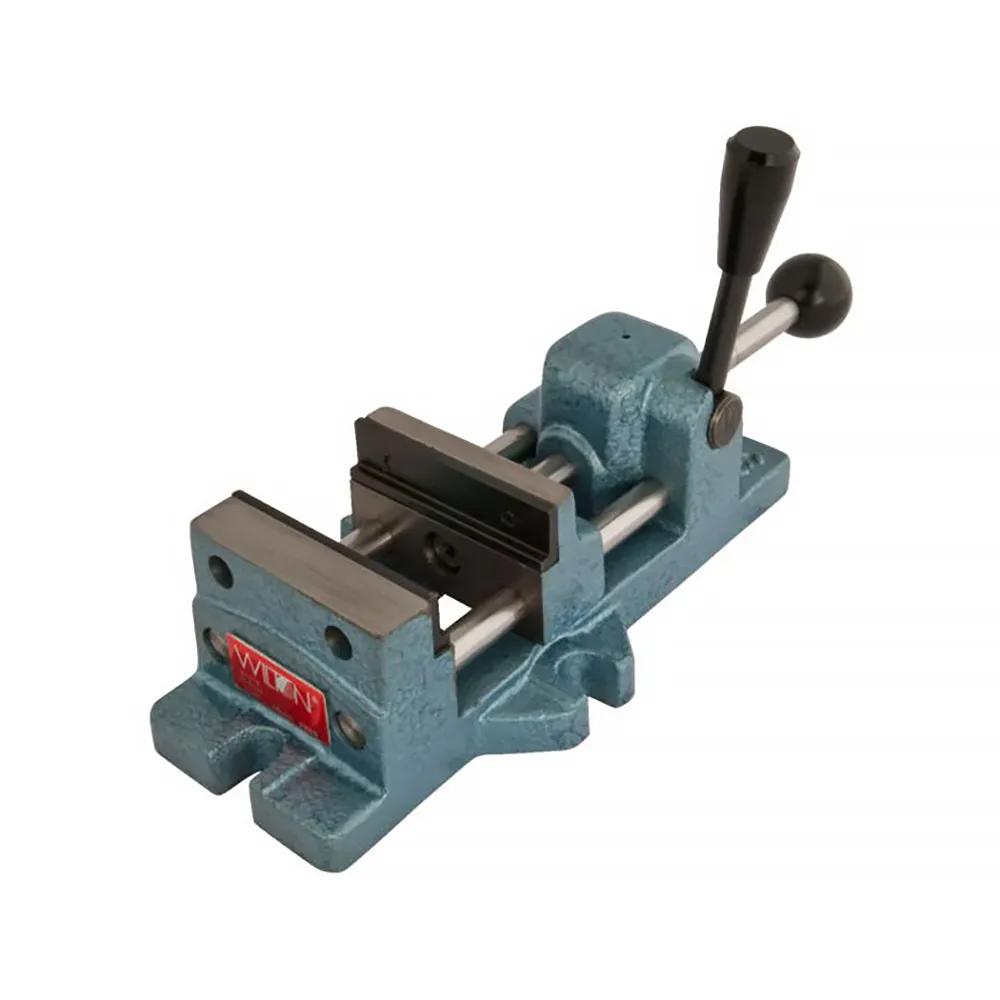

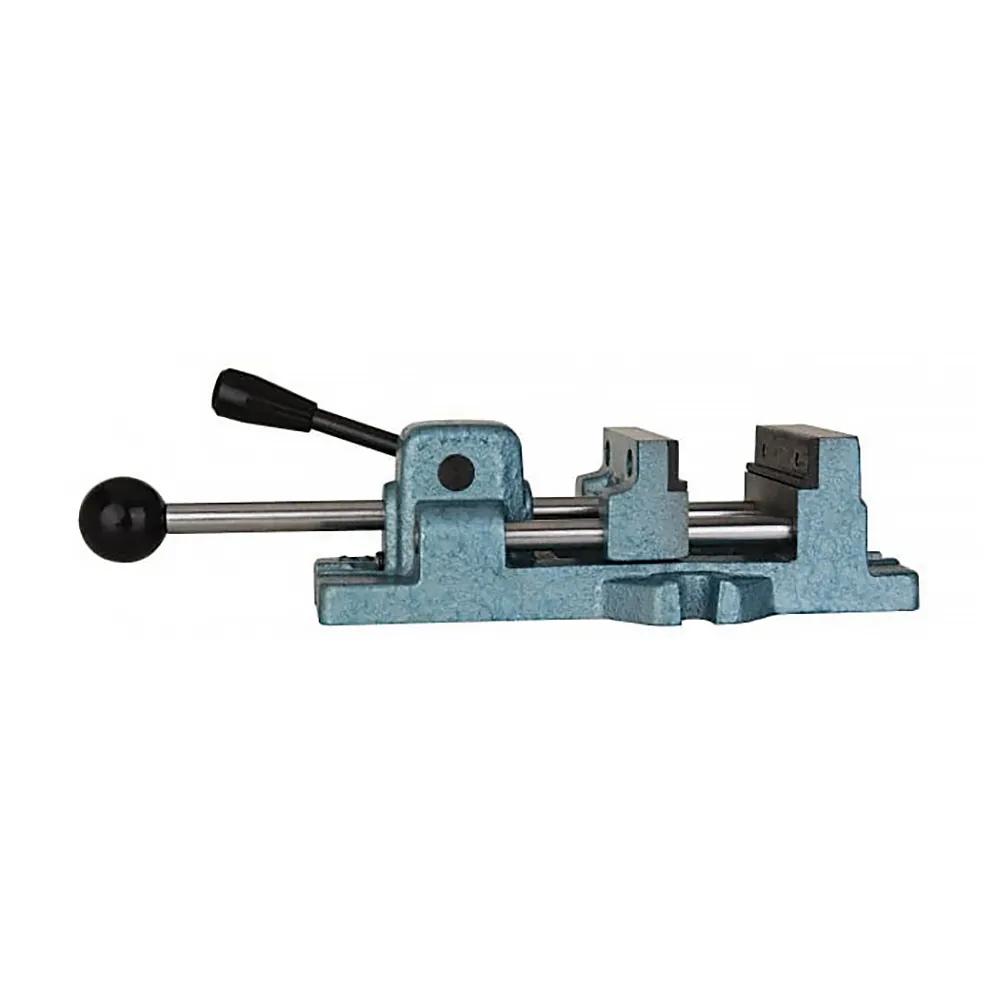

Speed up drill press workflow with instant push-pull clamping on this 4 in. cam action vise. Center bar locks jaws without screw adjustment, just push or pull to clamp. Opens to 4-1/2 in. with 1-5/16 in. jaw depth for standard drilling and tapping stock. Ideal where clamping speed drives throughput.
Features
- Push or pull the center bar knob to set jaw position instantly for rapid part loading
- Open-base design allows clear through-drilling without chip buildup or workpiece interference
- Locking lever cams the jaw forward 3/32 in. for a positive final grip on every cycle
- Top locking lever raises or lowers to accommodate varying workpiece heights and profiles
- Cast-iron body provides vibration damping and stable mass for clean, accurate holes even at higher feed rates
- Shoulder-slot base mounting secures the vise rigidly to drill-press tables for vibration-free through-hole operations
- Perfect for high-volume shops that drill identical hole patterns across large batches of identical or similar parts
Related Products
Specifications
- SKUWL9-13401
- Horse Power1/8
- Jaw Depth1.3125 in.
- Jaw Width4 in.
- Maximum Vise Opening4.5 in.
- Model Number1204
- Net Weight17.700
- Number of Mounting Points2
- Old Material Number13401
- Opening Capacity Max4.5 in.
- Product TypeTools & Equipment
- Prop 65Cancer and Reproductive Harm
- SAP Gross Weight18
- Type of BaseStationary
- UPC019907134015
- WarrantyLimited Lifetime Warranty
