Product Details

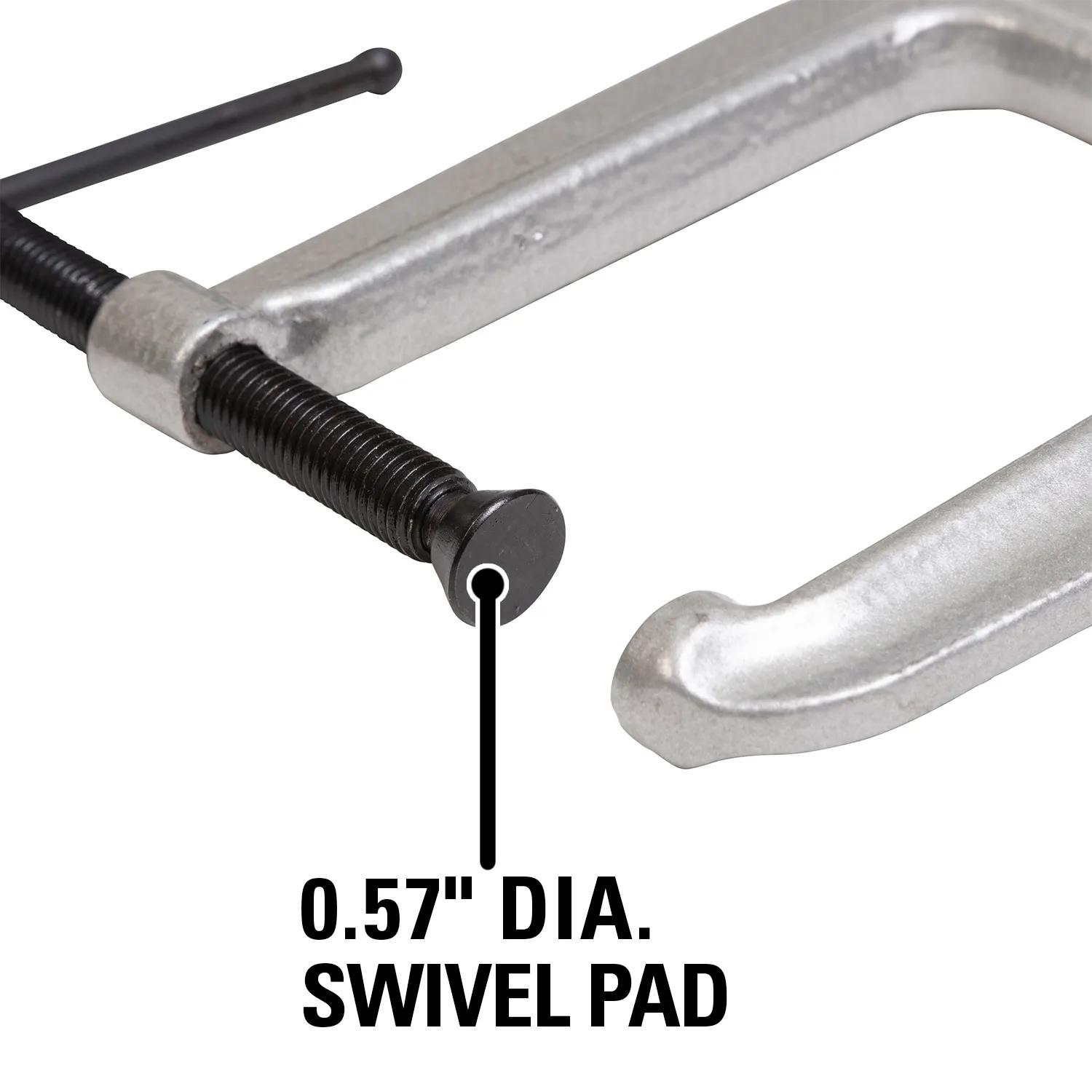

Get the clamping force you need with opens 0 to 2-1/2 in. with 600 lbs. of clamping force and a 4 in. throat depth. The deep-reach throat positions clamping pressure farther from the workpiece edge than standard clamps, handling wide boards, panels, and sheet goods that require inboard holding force. Ductile iron construction provides a lightweight yet durable frame that resists cracking from impact or accidental drops. The acme thread spindle engages smoothly through the full range, and the swivel pad distributes clamping pressure evenly across the contact area. This clamp is a natural fit for woodworking edge-banding, panel lamination, and any task where the work extends well past the clamp's jaw edge. The carriage frame profile makes it easy to slide into position and adjust with one hand during multi-clamp setups.
Features
- Jaw opening extends from 0 to 2-1/2 in. for thin stock and small workpiece clamping

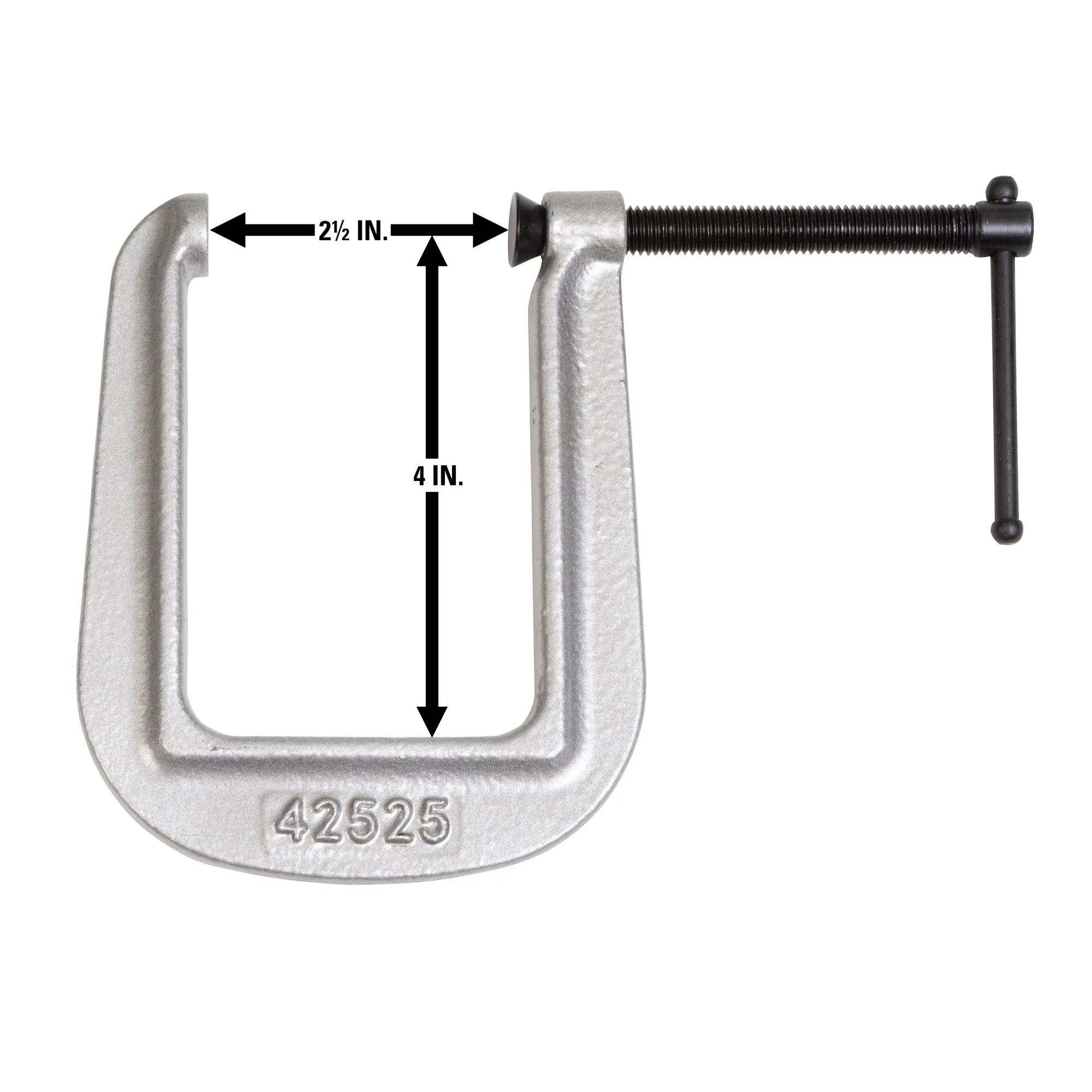

- 4 in. deep-reach throat positions force well past material edges
- 600 lbs. clamping force holds panels and sheet goods without distortion
- 600 lbs. capacity through Ductile Iron construction spanning 2-1/2 in. of travel
- Spindle-controlled 600 lbs. pressure extends the full 4 in. reach
- Pad conforms to both flat and curved surfaces for versatile clamping — up to 0 in. - 2-1/2 in. — 4 in. throat depth
- Portable at 0.9 lbs., designed for quick setup and station-to-station movement
Specifications
- SKUWL9-42525
- Jaw Depth1.312 in.
- Material TypeDuctile Iron
- Model Number252-1/2
- Product TypeTools & Equipment
- Spindle Diameter3/8 in.
- Throat Depth4 in.
- UPC019907425250
