Forged Super-Junior C-Clamp 2 in. Opening Capacity

Stock Number: WL9-21305

  • 2 in. Compact Opening
  • 875 lbs. Clamping Force
  • Forged Steel Frame, 2 in.
  • Steel Frame 2in Opening Range
BUY NOW
Wilton Lifetime Warranty

Product Details

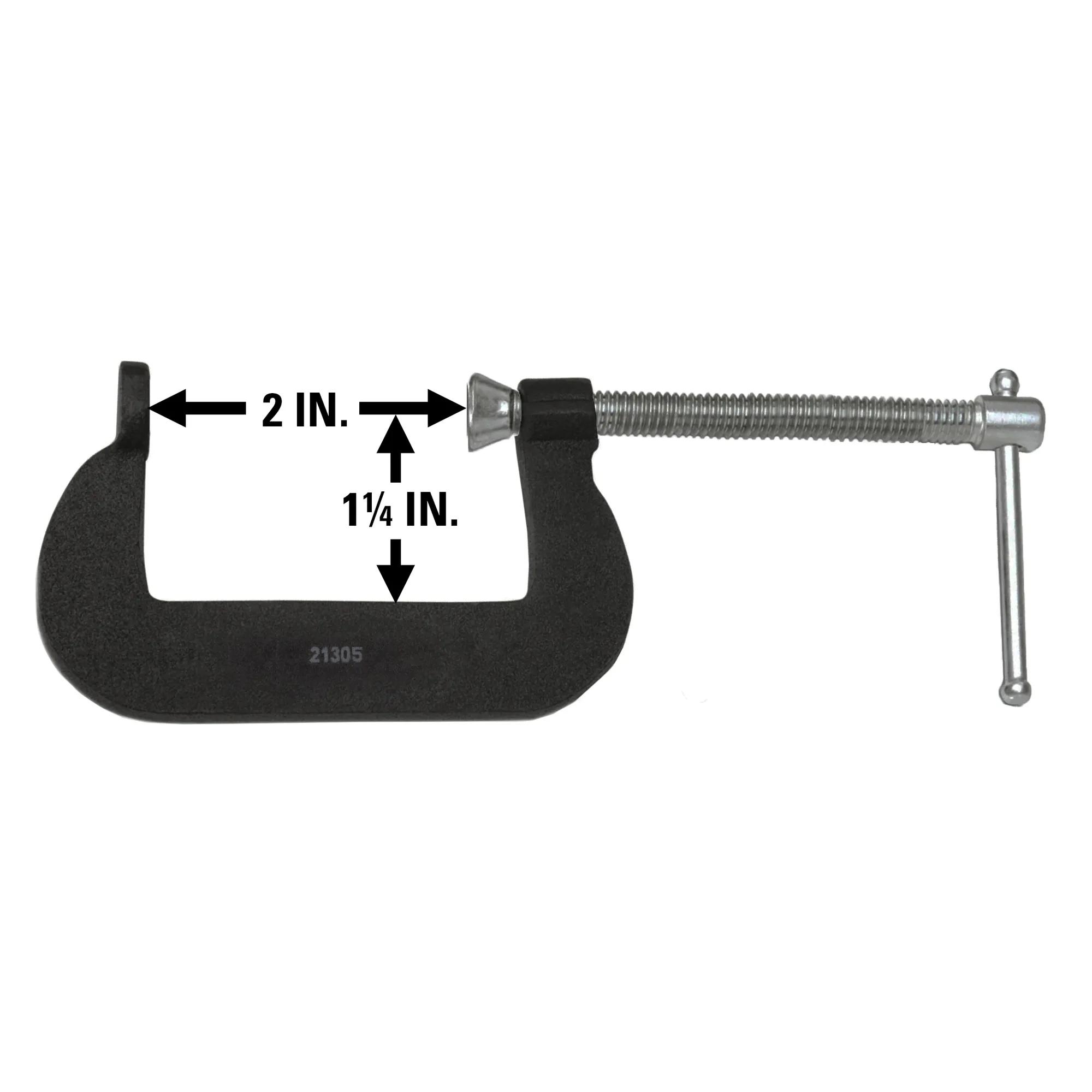

Get professional-grade clamping with 875 lbs. of force, opening to 2 in., and a 1-1/4 in. throat depth. Forged steel construction gives this miniature clamp the strength to handle tasks that would bend or break lighter-duty alternatives. The Super Junior excels in tight-quarters work: instrument repair, jewelry fabrication, model building, electronics assembly, and any application where full-size clamps are too bulky. Despite its small footprint, the acme thread spindle provides precise, controlled tightening, and the swivel pad protects delicate workpiece surfaces from marring. The forged frame distributes clamping loads efficiently, reducing the risk of workpiece distortion on thin or fragile materials. Keep a set in the toolbox for those jobs where access space is limited but clamping force is not optional.

Features

  • Opens 0 to 2 in. for tight-quarters clamping work
  • At 1-1/4 in. reach, positions 875 lbs. of pressure past workpiece edges
  • 875 lbs. clamping force from a miniature frame that fits confined spaces
  • Handles 2 in. of jaw travel with 875 lbs. from a Forged Steel frame
  • Spindle mechanism delivers consistent 875 lbs. pressure at any point within 1-1/4 in.
  • Swivel contact pad reduces the risk of workpiece slippage under force — up to 0 in. - 2 in. — 1-1/4 in. throat depth
  • At 0.3 lbs., this clamp balances holding power with portability between stations

Specifications

  • SKU
    WL9-21305
  • Capacity
    0 - 2 in.
  • Clamping Force
    875 lbs.
  • Horse Power
    1/8
  • Jaw Depth
    1.312 in.
  • Material Type
    Forged Steel
  • Model Number
    54
  • Net Weight
    0.300
  • Old Material Number
    21305
  • Product Type
    Tools & Equipment
  • Prop 65
    Cancer and Reproductive Harm
  • SAP Gross Weight
    0.300
  • Spindle Diameter
    5/16 in.
  • Throat Depth
    1-1/4 in.
  • UPC
    019907213055
  • Warranty
    Limited Lifetime Warranty
