Product Details

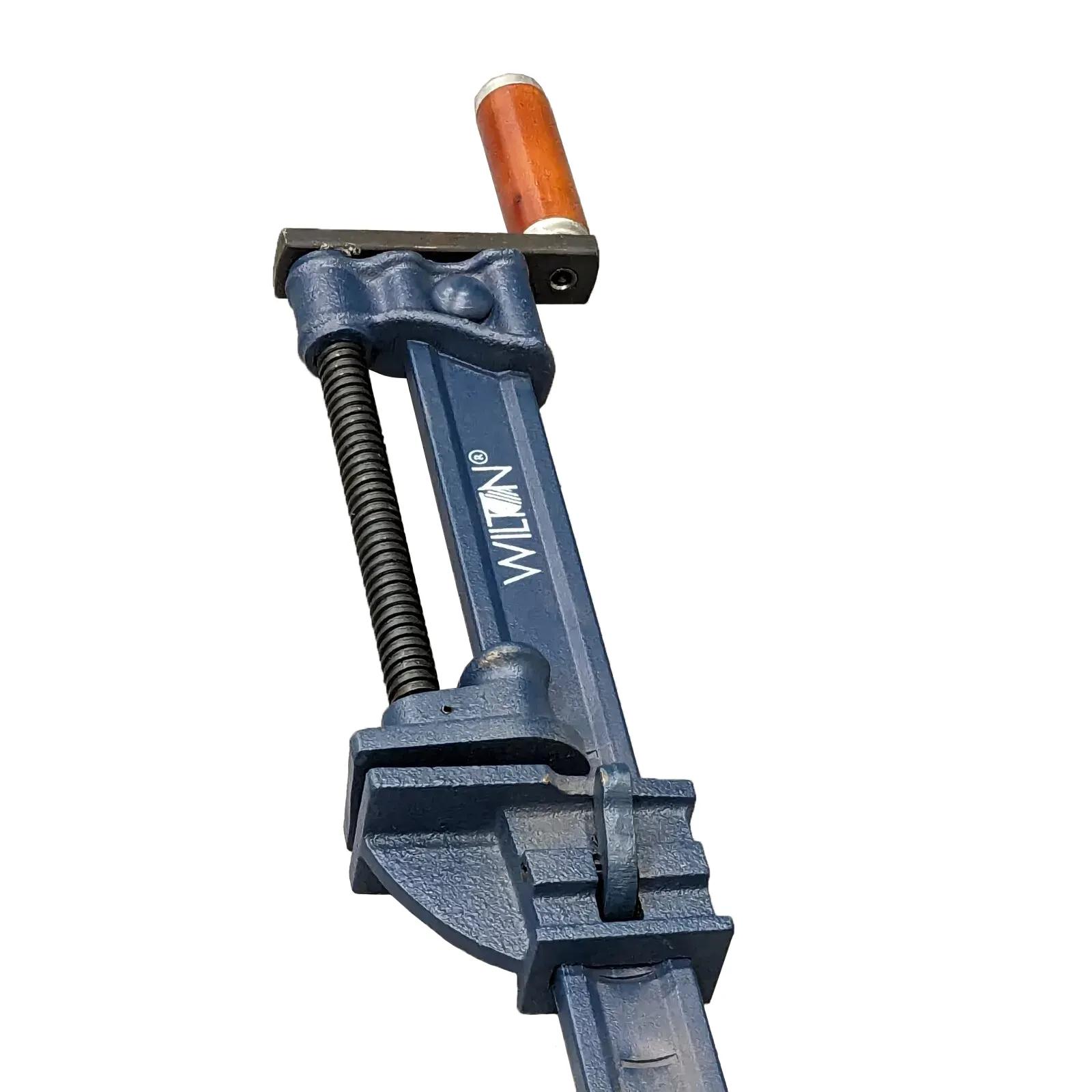

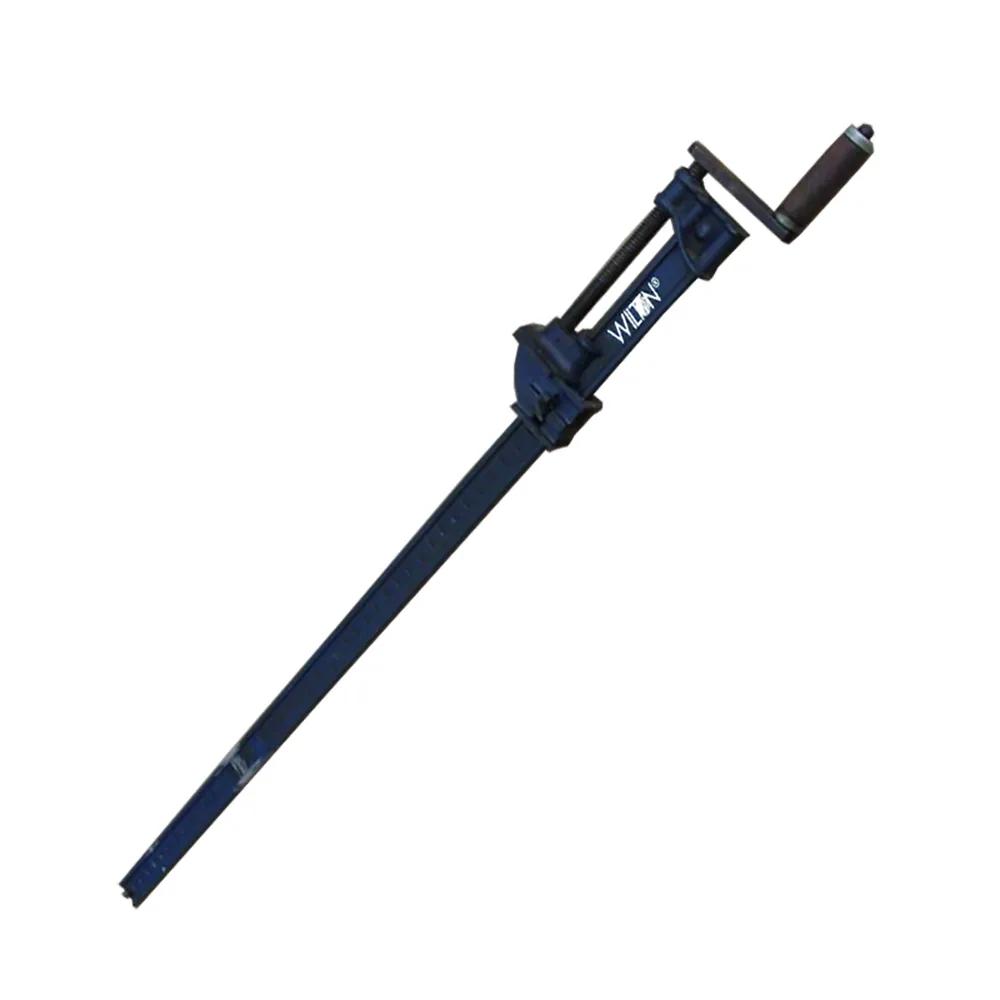

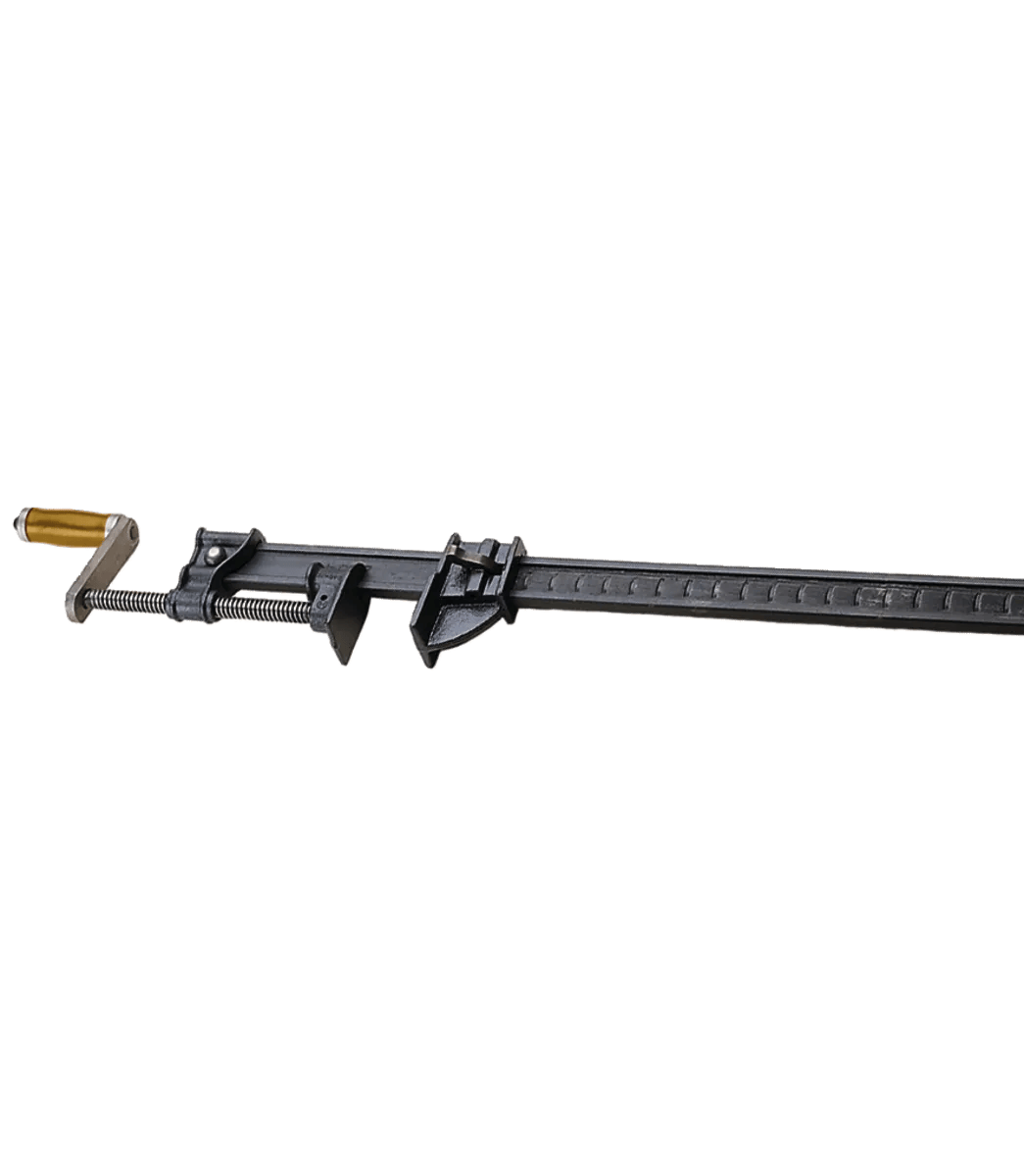

Delivering 6,000 lbs. of clamping force, this clamp opens from 0 to 36 in. with a 1-13/16 in. throat depth. The I-beam profile delivers exceptional rigidity against deflection under load, keeping clamping pressure true and even across wide panels, long boards, and structural assemblies. The sliding jaw engages securely along the bar via a positive-lock clutch mechanism, and the screw spindle provides fine adjustment for precise pressure control. Steel construction throughout ensures the clamp maintains straightness and strength over years of heavy use. For wide glue-ups and long-span fixturing, the I Bar Clamp is the professional-grade solution.
Features
- 36 in. opening capacity on a 3 ft. steel I-beam bar for long-span work
- At 1-13/16 in. reach, positions 6,000 lbs. of pressure past workpiece edges
- Delivers 6,000 lbs. through a steel frame built for production loads
- Built from Steel, rated at 6,000 lbs. across the complete 36 in. opening
- Spindle applies 6,000 lbs. evenly across 1-13/16 in. throat without deflection or drift
- Swivel pad tilts to match workpiece angles without point-loading edges — up to 36 in. — 1-13/16 in. throat depth
- Weighs 8.3 lbs. for manageable handling during extended setup and clamping sessions (1-13/16 in. throat)
Specifications
- SKUWL9-21803
- Material TypeSteel
- Model NumberNone
- Product TypeTools & Equipment
- Throat Depth1-13/16 in.
- UPC019907218036
