Product Details

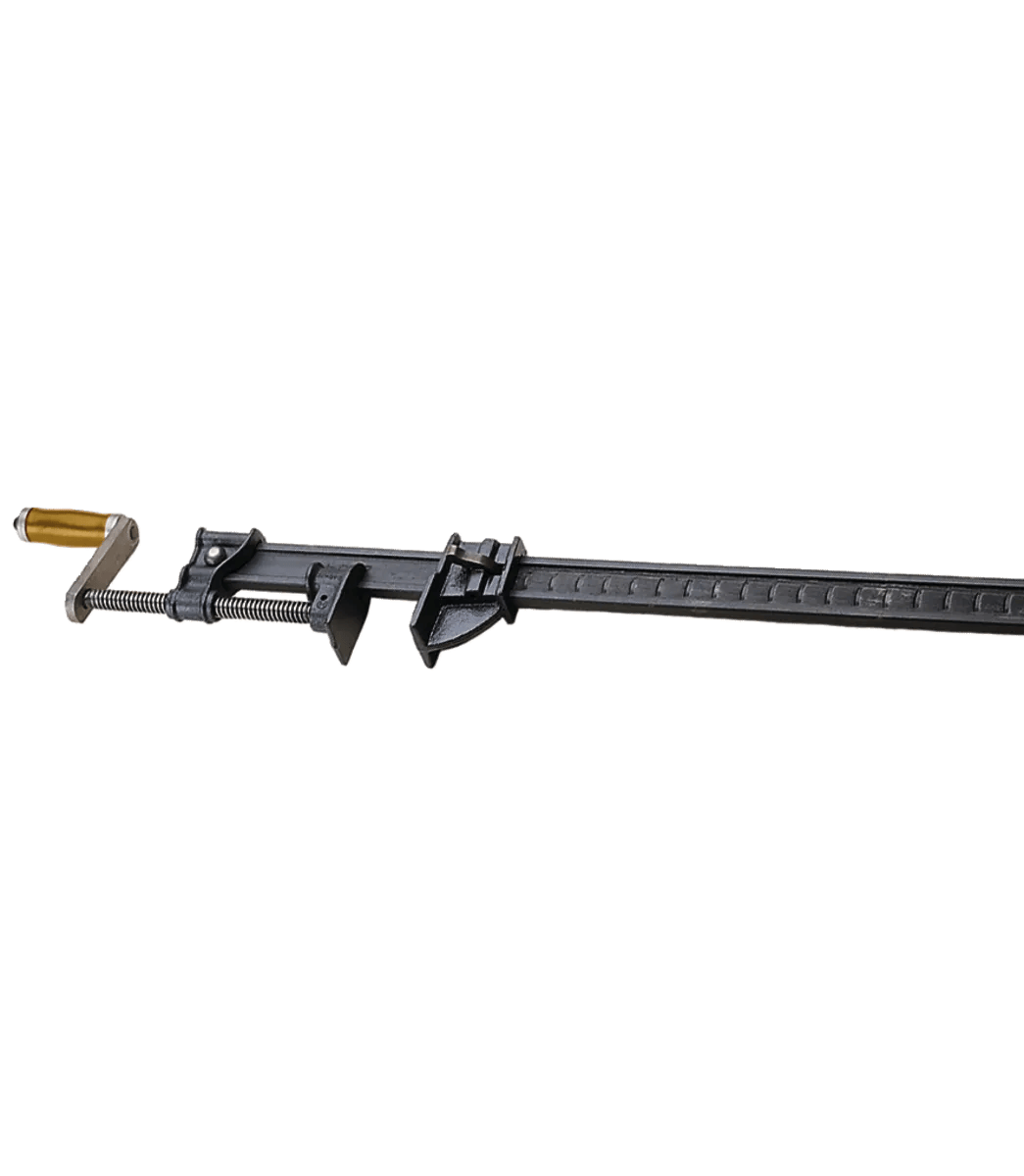

Job-site tough, shop-floor reliable, opening 0 to 48 in. with 6,000 lbs. of clamping force and a 1-13/16 in. throat depth. The I-beam profile delivers exceptional rigidity against deflection under load, keeping clamping pressure true and even across wide panels, long boards, and structural assemblies. The sliding jaw engages securely along the bar via a positive-lock clutch mechanism, and the screw spindle provides fine adjustment for precise pressure control. Steel construction throughout ensures the clamp maintains straightness and strength over years of heavy use. For wide glue-ups and long-span fixturing, the I Bar Clamp is the professional-grade solution.
Features
- 48 in. opening capacity on a 4 ft. steel I-beam bar for long-span work
- Throat extends 1-13/16 in. to place 6,000 lbs. where the work demands it
- 6,000 lbs. rated force backed by steel frame construction
- Handles 48 in. of jaw travel with 6,000 lbs. from a Steel frame
- Spindle applies 6,000 lbs. evenly across 1-13/16 in. throat without deflection or drift — up to 48 in. — 1-13/16 in. throat depth
- Pad pivot action ensures full-face contact on tapered and angled stock — up to 48 in. — 1-13/16 in. throat depth
- Net weight of 10.25 lbs. keeps it easily portable across work stations
Specifications
- SKUWL9-21804
- Material TypeSteel
- Model NumberNone
- Product TypeTools & Equipment
- Throat Depth1-13/16 in.
- UPC019907218043
