Product Details

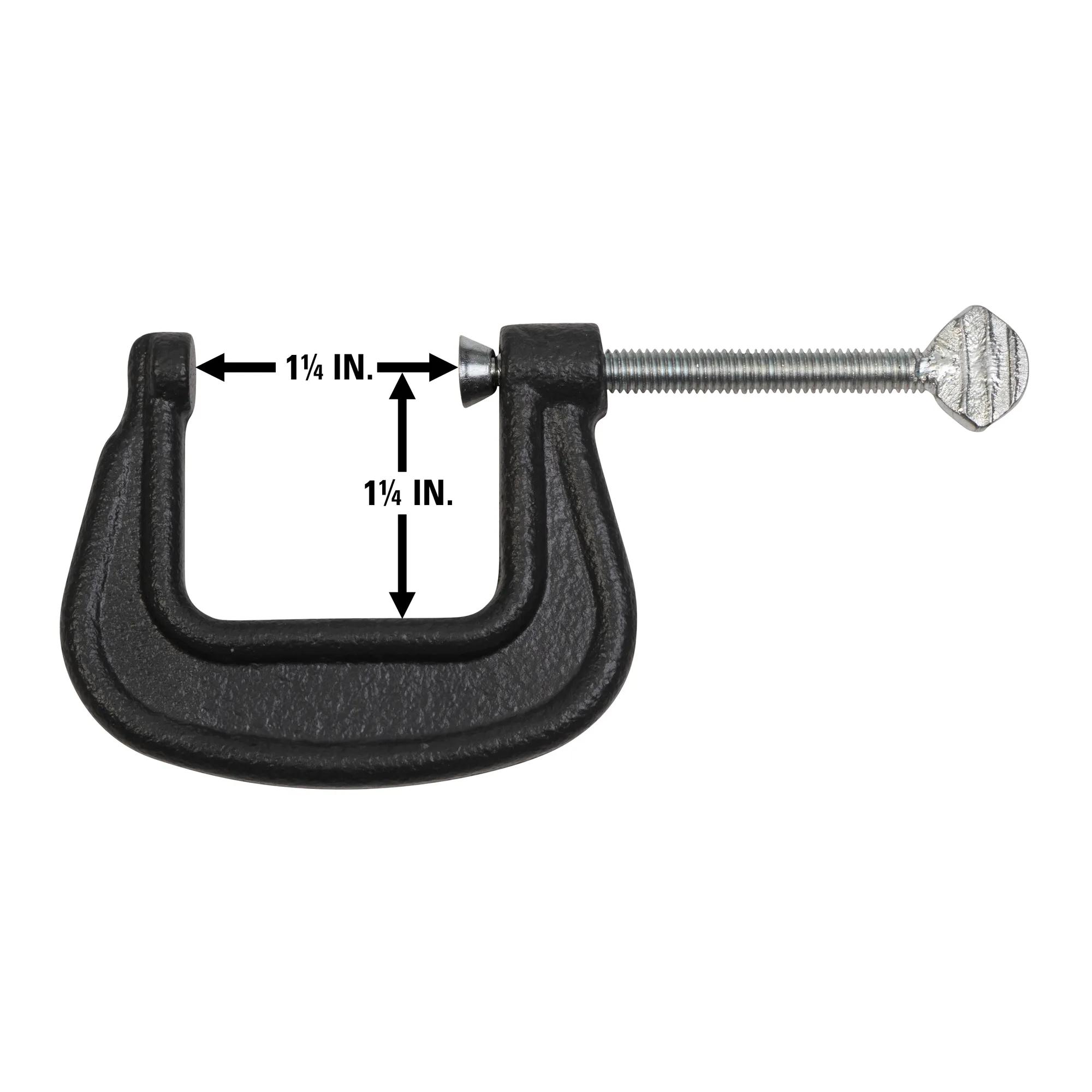

For fabrication and welding, opens 0 to 1-1/4 in. with 450 lbs. of clamping force and a 1-1/4 in. throat depth. This compact clamp fits where larger tools cannot, making it a go-to for hobby work, small assembly tasks, and precision fixturing. Despite its small size, the Junior delivers dependable clamping pressure through an acme thread spindle that turns smoothly under load. Ductile iron construction provides resilience against drops and impact, extending the clamp's service life in active shop environments. The swivel pad adjusts to workpiece surfaces automatically, distributing force evenly and reducing the risk of leaving impressions on softer materials. Small enough to store in a drawer or apron pocket, tough enough to hold when it counts.
Features
- Compact 1-1/4 in. opening handles small parts and precision assemblies
- 1-1/4 in. throat depth provides clearance for edge work on small stock
- 450 lbs. clamping force delivers reliable pressure from a small frame
- Forged Steel frame rated for 450 lbs. handles the demands of 1-1/4 in. opening range
- Spindle applies 450 lbs. evenly across 1-1/4 in. throat without deflection or drift
- Pad pivot action ensures full-face contact on tapered and angled stock — up to 0 in. - 1-1/4 in. — 1-1/4 in. throat depth
- Net weight of 0.25 lbs. keeps it easily portable across work stations
Specifications
- SKUWL9-22105
- Capacity0 - 1-1/4 in.
- Clamping Force450 lbs.
- Horse Power1/8
- Jaw Depth1.312 in.
- Material TypeForged Steel
- Model NumberH566
- Net Weight0.250
- Old Material Number22105
- Product TypeTools & Equipment
- Prop 65Cancer and Reproductive Harm
- SAP Gross Weight0.250
- Spindle Diameter1/4 in.
- Throat Depth1-1/4 in.
- UPC019907221050
- WarrantyLimited Lifetime Warranty
