Product Details

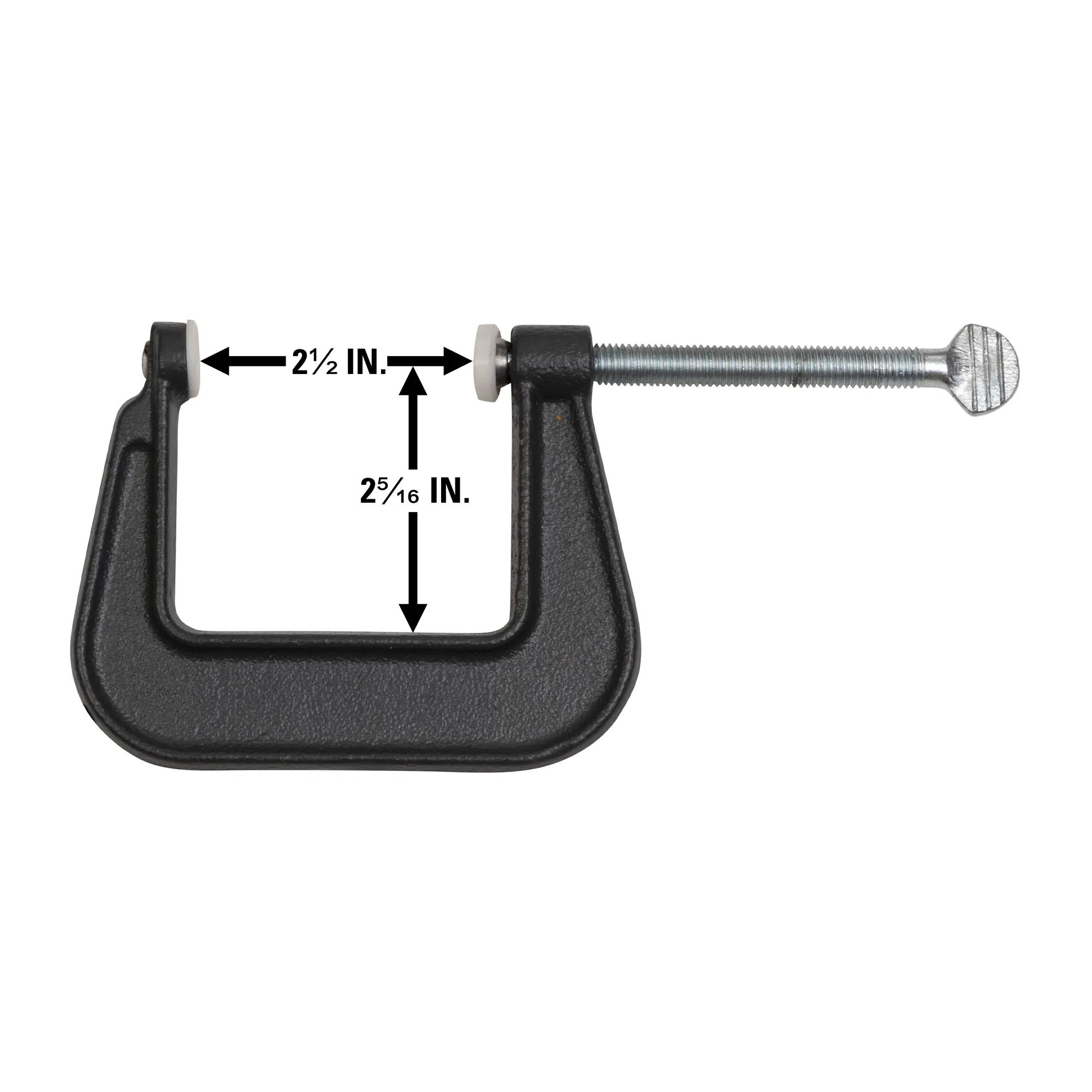

Built for high-volume use, opens 0 to 2-1/2 in. with 550 lbs. of clamping force and a 2-5/16 in. throat depth. The non-marring nylon spindle tip protects finished, polished, and painted surfaces from scratching or indentation during clamping. Built for precision tasks where surface quality matters, this clamp is ideal for woodworking final assembly, model building, and light fabrication on pre-finished materials. The compact frame fits into tight spaces, and the acme thread spindle delivers controlled tightening without sudden slippage. Ductile iron construction provides impact resistance that outlasts cast iron alternatives, even at this small scale. When the work requires a firm hold without leaving marks, the Junior Nylon Tip is the right tool for the job.

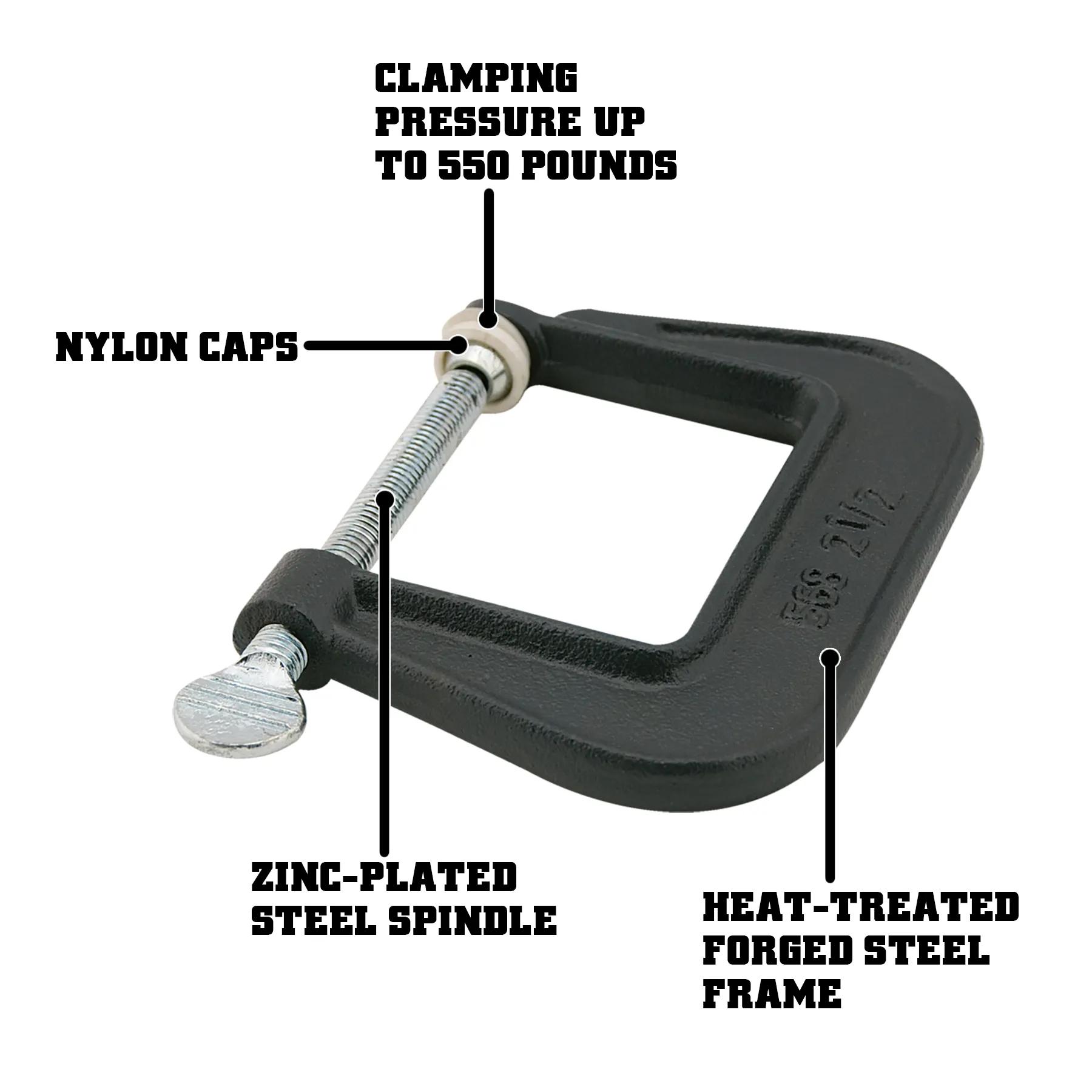

Features
- Full 0 to 2-1/2 in. opening range for clamping small and delicate workpieces
- 2-5/16 in. throat depth reaches past edges on compact stock sizes
- Delivers 550 lbs. through a forged steel frame built for production loads
- Forged Steel frame rated for 550 lbs. handles the demands of 2-1/2 in. opening range
- Spindle-controlled 550 lbs. pressure extends the full 2-5/16 in. reach
- Self-adjusting pad distributes force across the full contact area evenly — up to 0 in. - 2-1/2 in. — 2-5/16 in. throat depth
- Portable at 0.95 lbs., designed for quick setup and station-to-station movementkeeps the clamp manageable for one-handed positioning
Specifications
- SKUWL9-22116
- Capacity0 - 2-1/2 in.
- Clamping Force550 lbs.
- Horse Power1/8
- Jaw Depth1.312 in.
- Material TypeForged Steel
- Model NumberH568N
- Net Weight0.950
- Old Material Number22116
- Product TypeTools & Equipment
- Prop 65Cancer and Reproductive Harm
- SAP Gross Weight0.950
- Spindle Diameter1/4 in.
- Throat Depth2-5/16 in.
- UPC019907221166
- WarrantyLimited Lifetime Warranty
