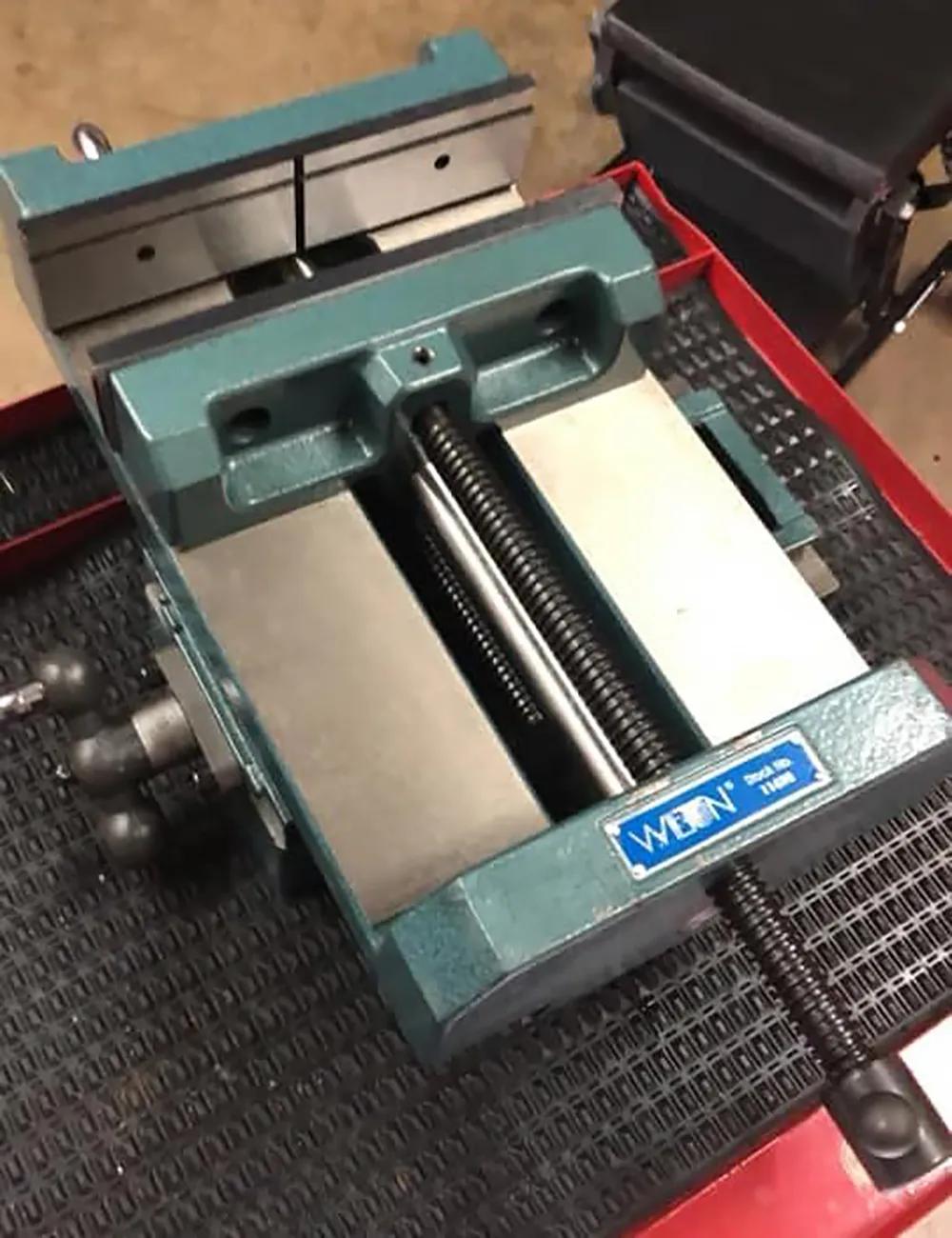

8 in. Cross Slide Drill Press Vise
8 in. Cross Slide Drill Press Vise
8 in. Cross Slide Drill Press Vise
8 in. Cross Slide Drill Press Vise

8 in. Cross Slide Drill Press Vise

Stock Number: WL9-11698

  • Largest in Cross Slide Line
  • Handles Oversized Workpieces
  • 77 lb Cast-Iron Mass Stability
BUY NOW
Wilton Lifetime Warranty
Wilton parts

Product Details

Wilton's cross slide drill press vises allow repeat drills or taps in a workpiece by sliding in 2 axes. All boast hardened v-grooved jaws for clamping round objects vertically and horizontally. Backed by Wilton's lifetime warranty (Model 11698)

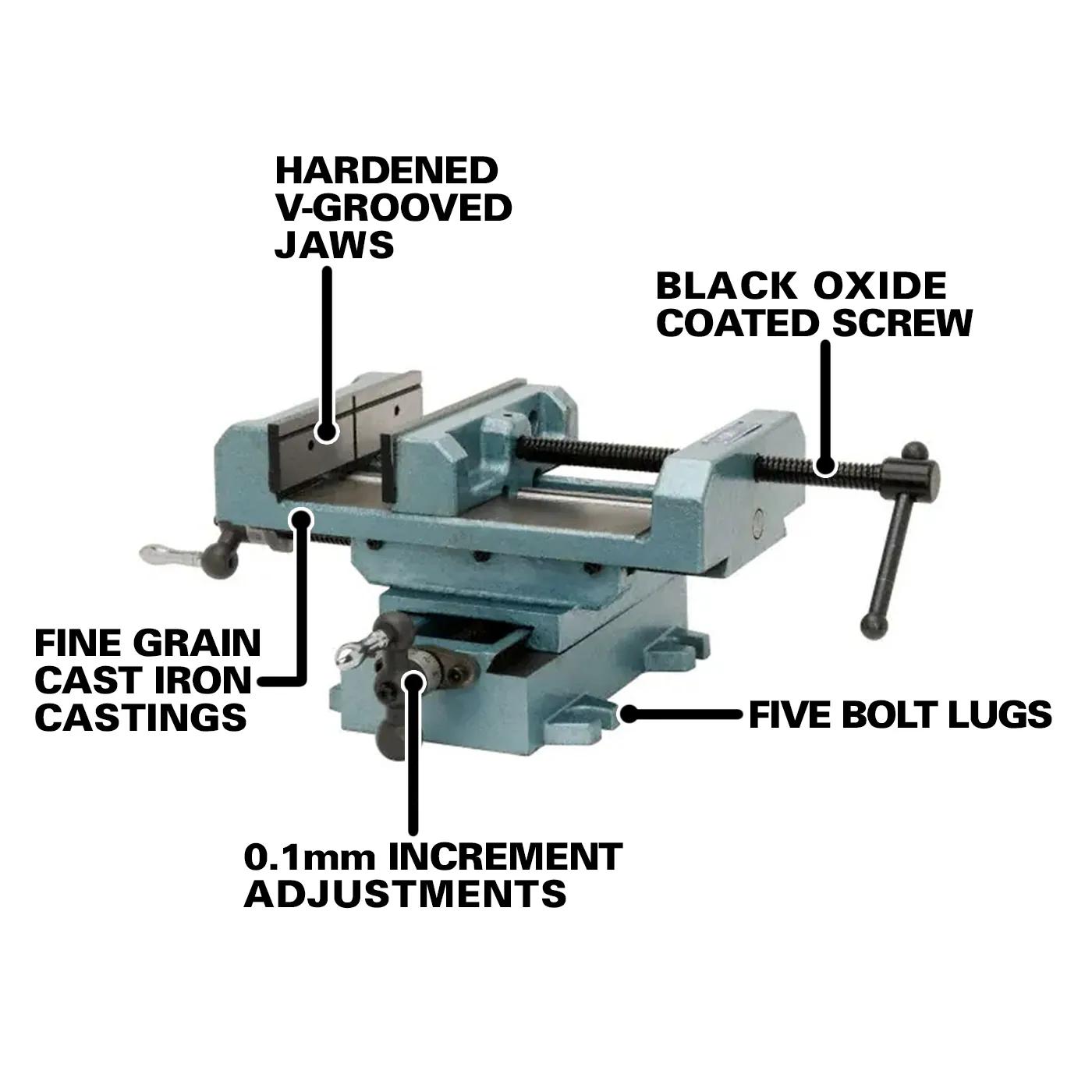

Features

  • Full X-Y slide travel positions heavy workpieces accurately for large-format hole patterns
  • Heavy-duty graduated knobs control both axes at 0.1 mm resolution across the full travel range
  • Five heavy-duty bolt lugs lock the oversized base securely to industrial tables
  • Robust cast iron frame handles the forces generated by heavy bits in thick stock
  • Hardened jaw inserts maintain a firm grip on heavy workpieces, preventing shifting under the high thrust forces of large bits

Specifications

  • SKU
    WL9-11698
  • Horse Power
    1/8
  • Jaw Depth
    2
  • Jaw Width
    8 in.
  • Maximum Vise Opening
    8 in.
  • Model Number
    CS8
  • Net Weight
    77
  • Number of Mounting Points
    5
  • Old Material Number
    11698
  • Opening Capacity Max
    8 in.
  • Product Type
    Tools & Equipment
  • Prop 65
    Cancer and Reproductive Harm
  • SAP Gross Weight
    77
  • Throat Depth
    2 in.
  • Type of Base
    Stationary
  • UPC
    662755100222
  • Warranty
    Limited Lifetime Warranty
